HBC100W 100w UFO high efficient led high bay lighting

HBC100W 100w UFO high efficient led high bay lighting

Model Number:HBC100W
Warranty(Years):3
Input Voltage(V):AC100-277V
Lamp Power(W):120
Lamp Luminous Flux(lm):11000
Lamp Luminous Efficiency(lm/w):100
CRI (Ra>):80
Color Temperature(CCT):Warm White
Working Temperature(℃):-20 - 45
Working Lifetime(Hour):50000
Lamp Body Material:Aluminum Alloy
IP Rating:IP65
Certification:CE, RoHS
Application:industrial worshop/supermarket
Beam angle:115 degree
LED Driver:MEANWELL
CRI:80
LED Type:Nichia SMD3030
Power Factor(PF>):0.95
CCT:DW/WW

100w UFO high efficient led high bay lighting

Product Description

Advantage of 100w UFO high efficient led high bay lighting



1. Stable quality LEDs with low lumen decay,
2. With high CRI(≥80), similar to nature light,
3. Unique UFO shape, lighter and smaller,
4. Nichia as light source, LM80 standard,≥110lm/W,
5. Meanwell driver,
6. PF value over 0.95,
7. Easy installation and low maintenance,
8. Mercury- and leadfree, environment friendly.
9.5 years warranty.



Product show:

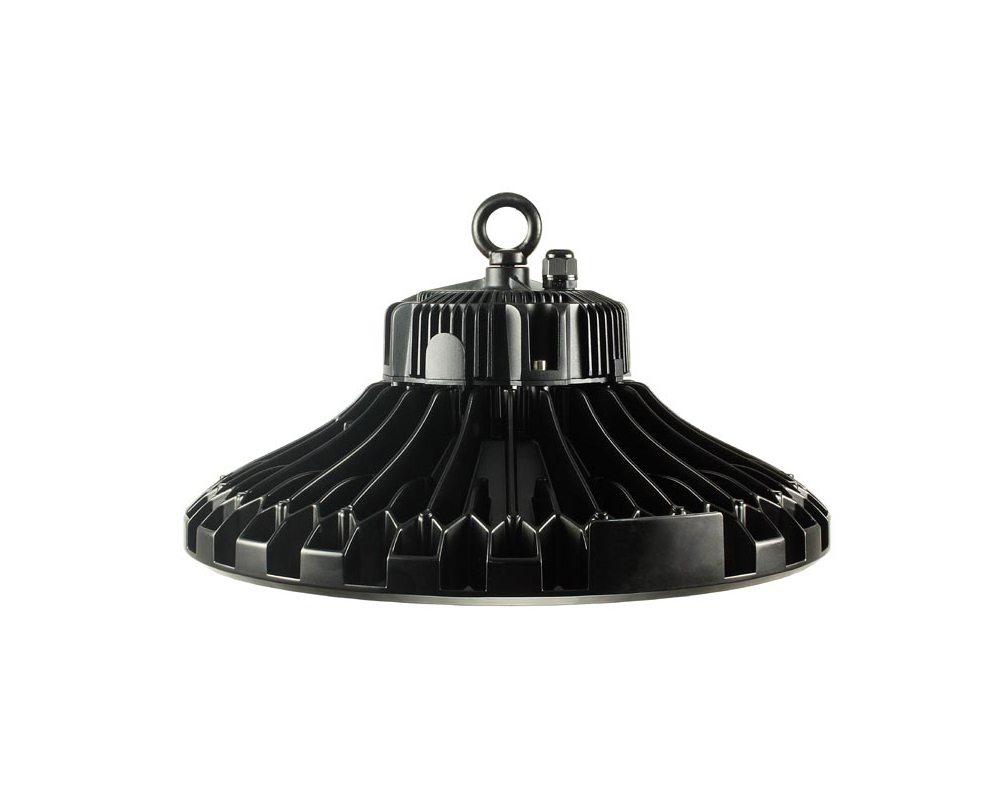

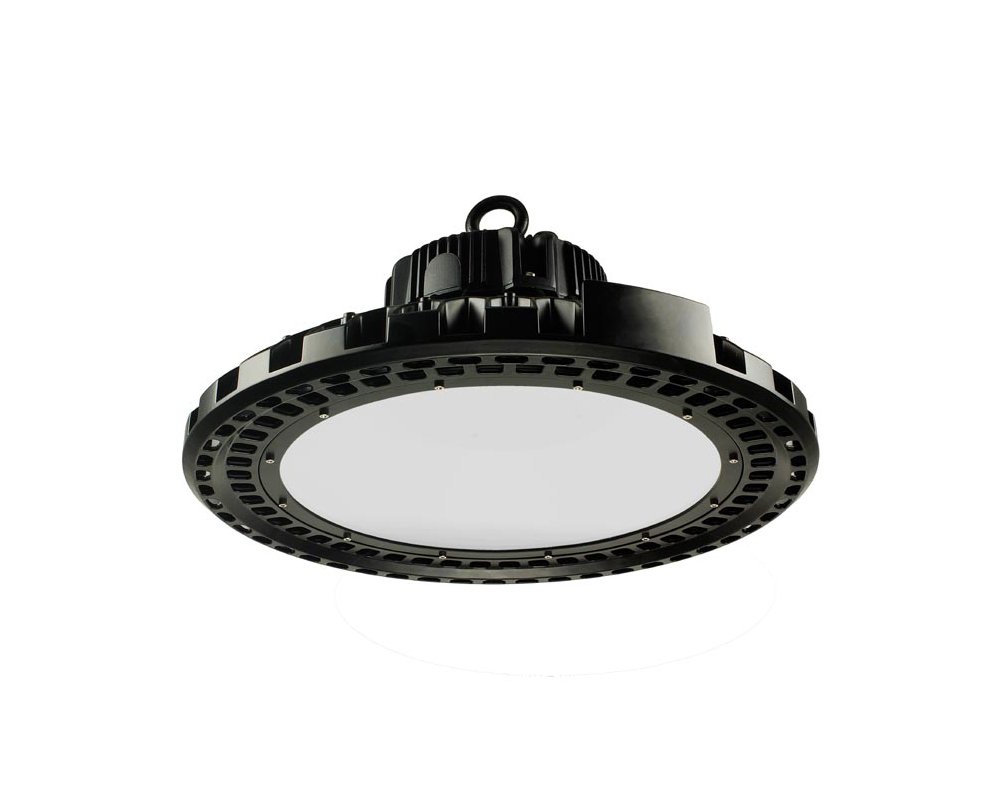

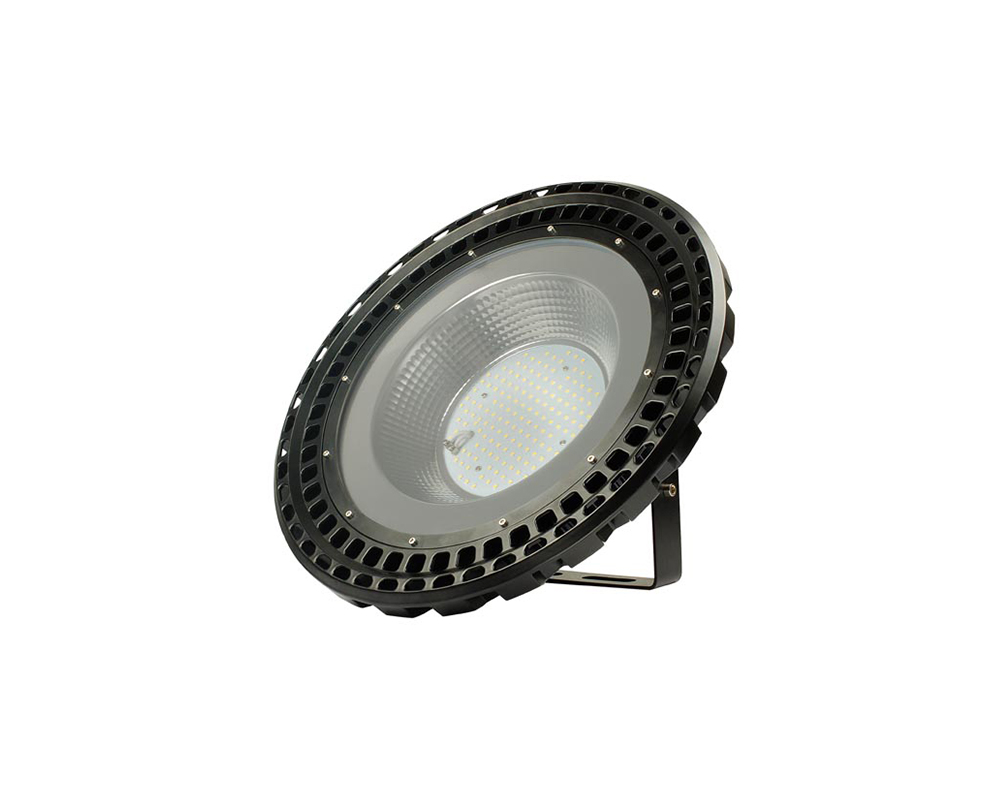

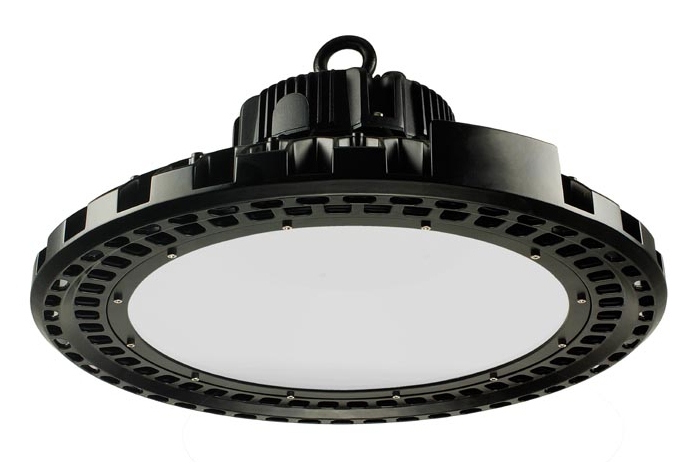

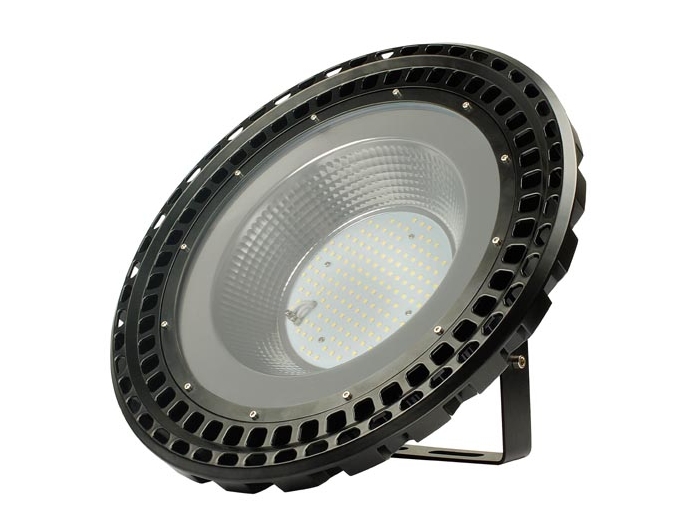

100w ufo high bay light100w ufo high bay light

Specifications of 100w UFO high efficient led high bay lighting



Model

LED Type

LED Q\'ty
(pcs)

Color

Voltage

Beam

Angle

Wattage

Lumen (lm)

CRI (Ra)

PF

IP factor

HBC100W

Nichia
SMD3030

126

DW

AC100-277V

115°

150W±10%

11000±15%

≥80

≥0.95

IP65

Nichia
SMD3030

126

WW

AC100-277V

115°

150W±10%

10400±15%

≥80

≥0.95

IP65

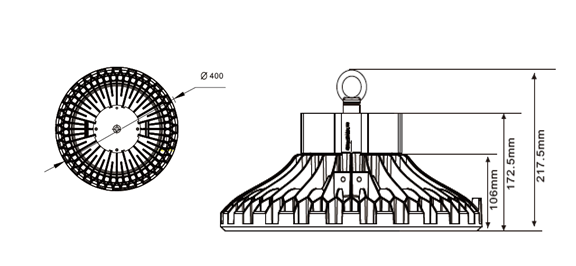

Dimensions

100w high efficient led high bay lighting UFO

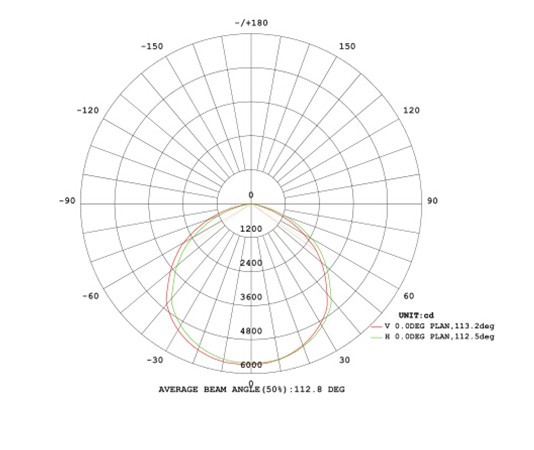

Lighting Distribution Curve

100w ufo Lighting Distribution Curve



Application of 100w UFO high efficient led high bay lighting


1. Indoor project lighting;
2. For workshop, factory, storage warehouse, exhibition center, and other places.
3. Replacement for sodium lamp

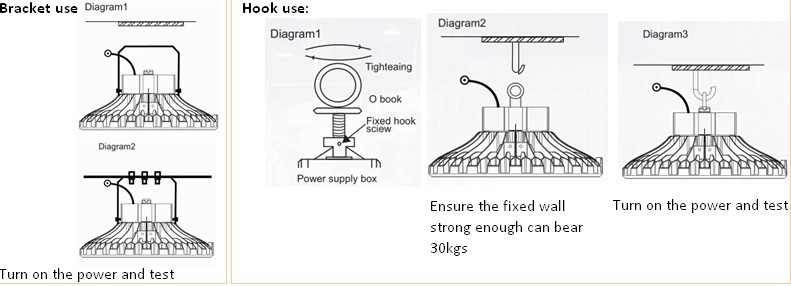

Installation



100w high efficient led high bay lighting UFO





Packaging & Shipping



Package of 100w UFO high efficient led high bay lighting

1. Net weight:7.5 kgs
2. Outer carton size: 455x455x233mm
3. Q\'ty per ctn:1 Pcs
4. G.W per ctn:8.0 kgs


Our Services



Replying your inquiry within 24 hours

Consultation from professional and experienced staff

Providing 1-3 years warranty

Solid pakage & fast delivery & newly tracking mews

OEM is welcome. Providing customized service.



Company Information



Golden Future Enterprise HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years,especially for miner lamp, explosion proof lighting fixture, led street light and other led commercial lightings,and etc.

Besides the led application products, our factory also can do some OEM products, such as making moylds, plastic injections, CNC aluminum parts or copper parts.

Please do not hesitaye to contact us if you need led application products or need to develop new products.

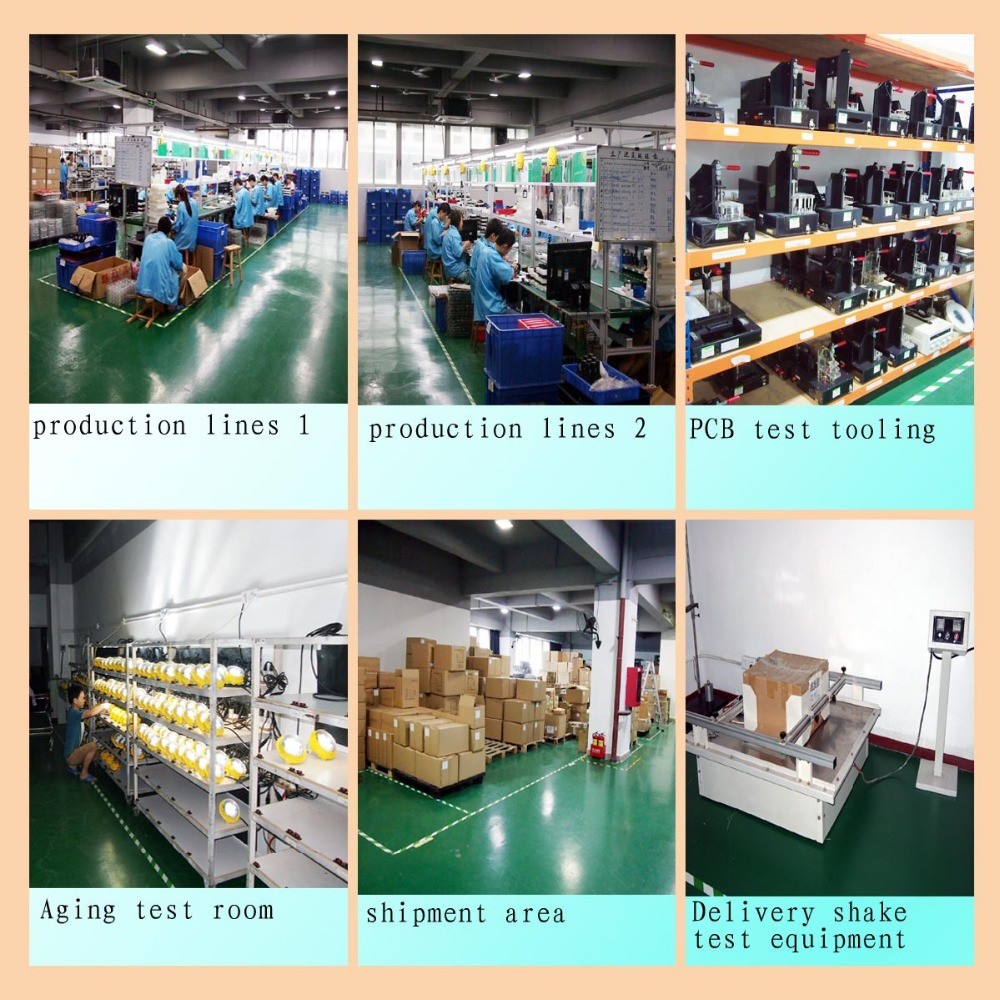

golden future work shop
