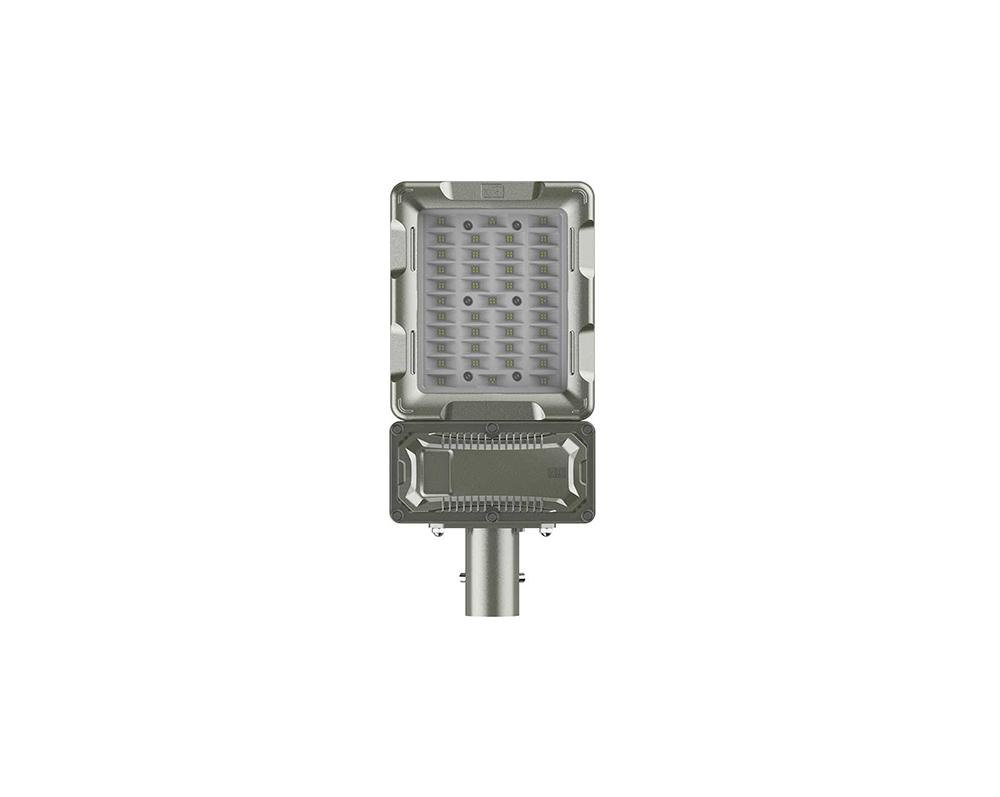

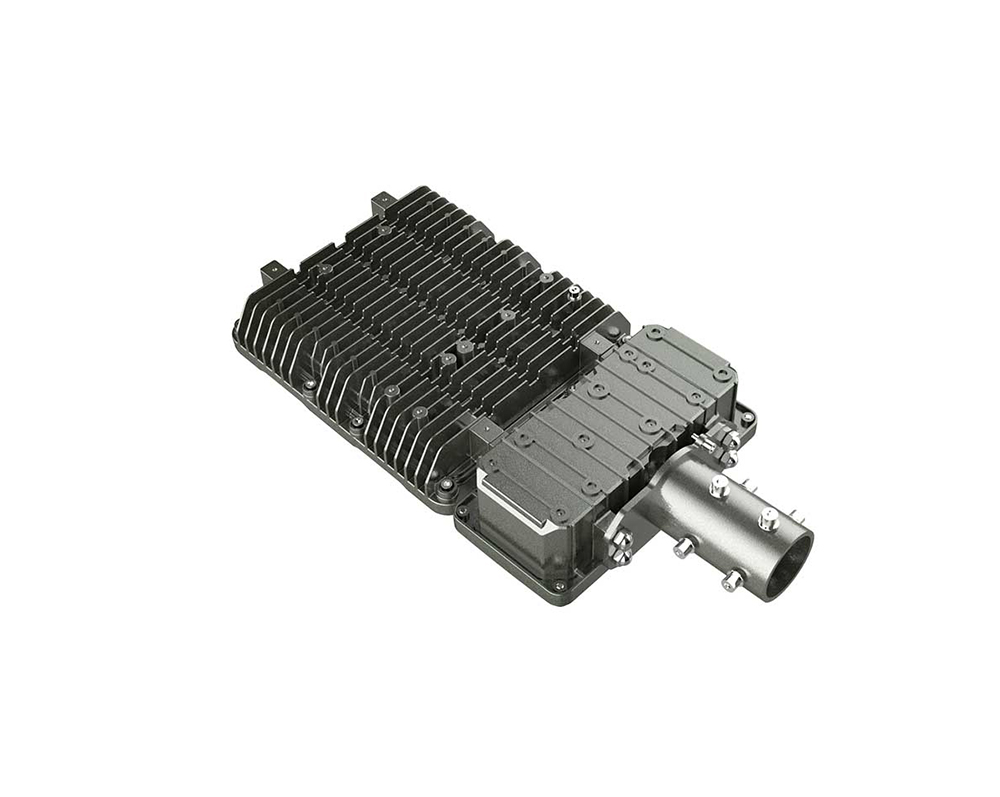

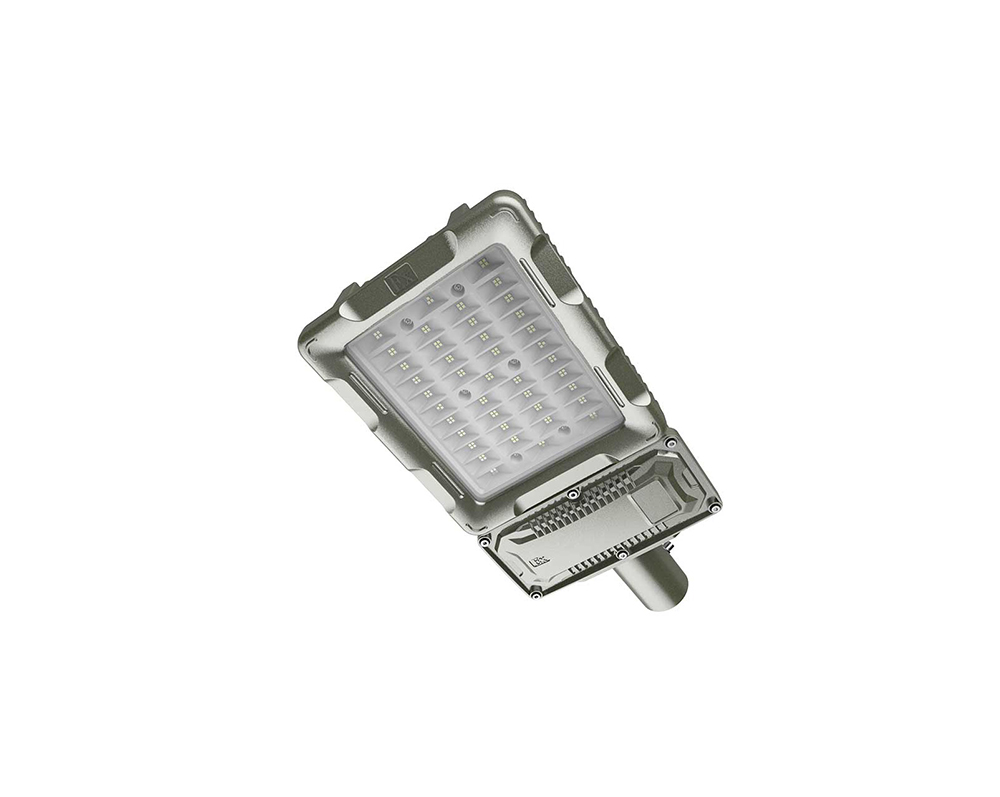

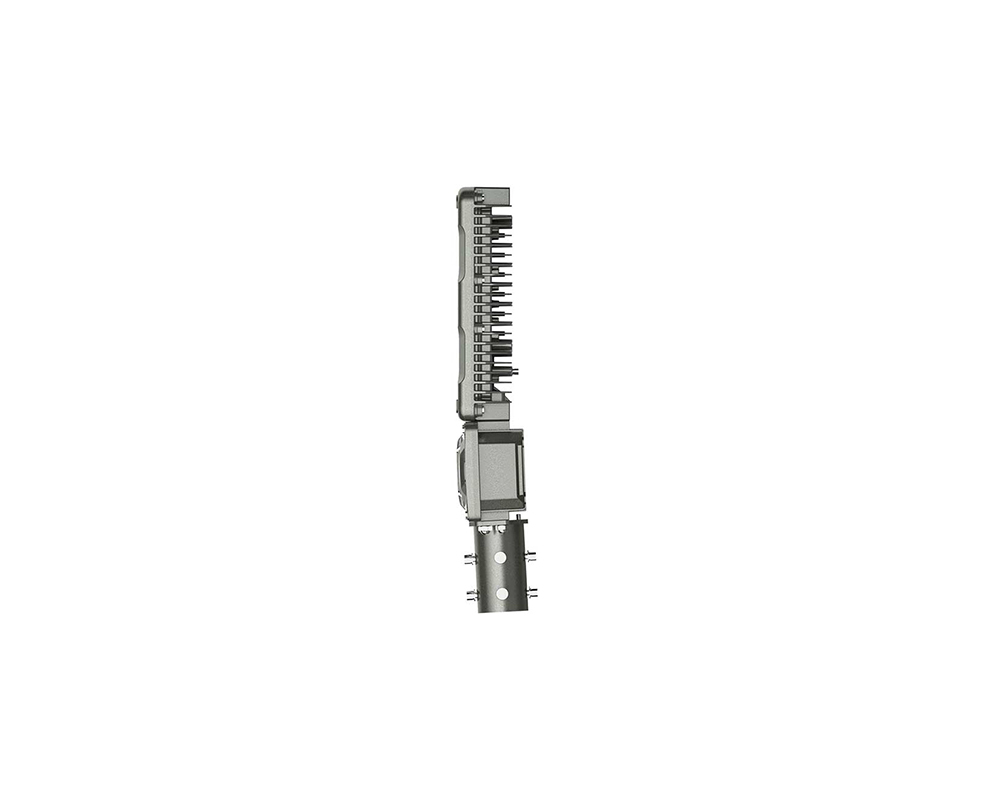

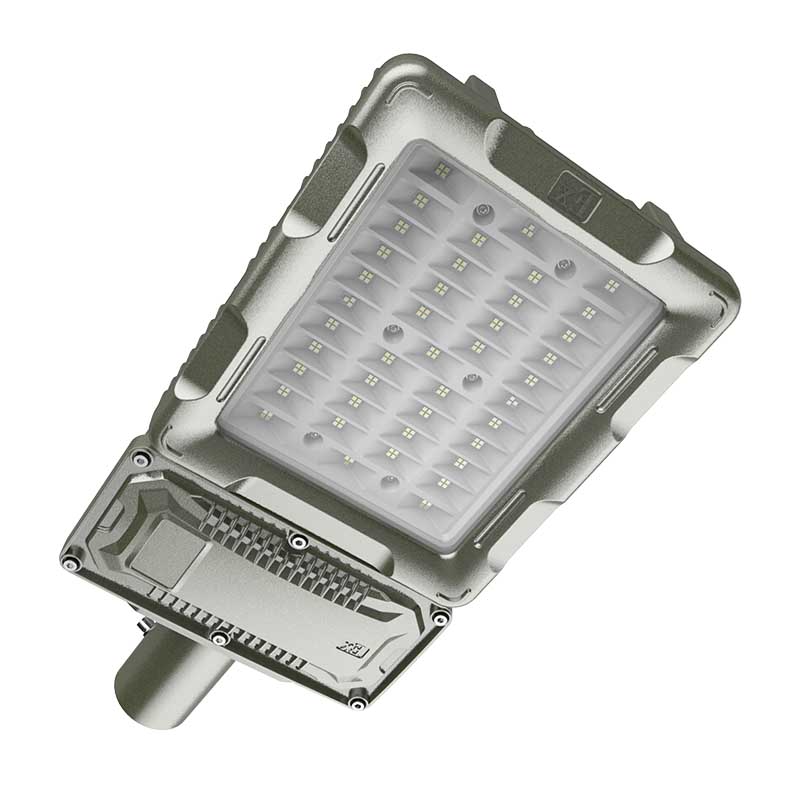

DSL260 LED explosion proof led street light

Model Number: DSL260

Light Source: led

Rated Voltage(V): AC220V

Lamp Power(W): 80-200w

CRI (Ra>): 70

Working Temperature(℃):-20°C ~ +40°C

Working Lifetime(Hour): 100000

IP Rating: IP66

Ex mark:Ex d e mb IIC T6

beam angle: 100

Product Details

DSL260  LED explosion proof led street light

This product has good explosion-proof function and is suitable for IIA, IIB, IIC explosive gas environment and various flammable and explosive sites. It is mainly used for high-efficiency lighting in railway, power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and various factory areas, yards, large facilities, venues and other places.

Product Features:

1. Configuration: Using imported LED light source, the average service life is as long as 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output. It has the function of short circuit and over voltage protection, and greatlyimproves the service life of lamps.

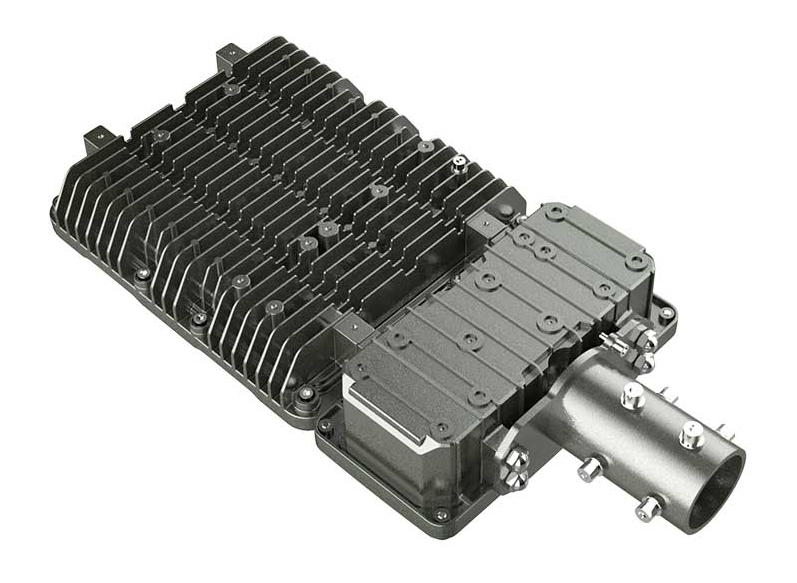

2. Radiator: With the integrated structure, heat conduction is better increased, explosion-proof electrical box and lamp head are designed separately with two chambers. Large space size ensures the assembly of various large-scale electrical appliances. Good heat dissipation performance ensures that the temperature rise of LED chips and power supply is reasonably controlled within a reasonable range.

3. Transparent parts: The transparency of steel transparent parts is as high as 95%-98%. The light reflecting cup is uniform and soft in light projection, especially suitable for various factories and urban roads as fixed lighting.

4. Protection: The protection level of the lamp body is IP66, and the anti-corrosion level can reach WF2. It has excellent explosion-proof, dust-proof, waterproof and anti-corrosion capabilities. The surface of the lamp body will never corrode and rust.

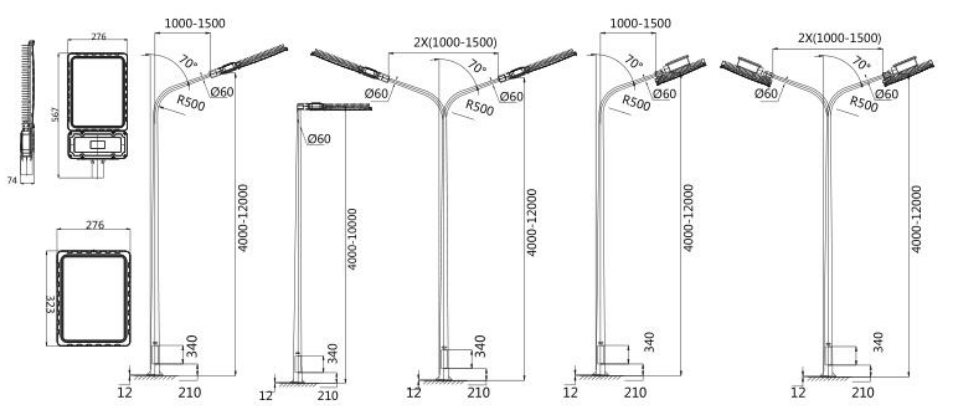

5. Installation mode: It can adopt various installation modes such as law-fence street lamp and guardrail street lamp as needed


Install

17

1.Before installation, it is necessary to check whether the actual operating conditions are in conformity with the parameters listed on the lamp nameplate.

2.Before installation, please test the lighting according to the parameters of the lamp nameplate to ensure that there is no quality problem before installation.

3.Before installation, it is necessary to determine the installation location and mode of the lamps according to the installation mode provided by the product, in combination with the on-site use environment and lighting requirements, so as to ensure that the installation is firm and reliable

4.Connect the prepared cables with the input cables of lamps and lanterns according to the corresponding fire (brown), zero (blue) and ground (yellow-green) wires, so as to ensure that the connection is firm, and make good insulation and waterproof measures at the connection.

5.The input end of the cable can be connected to the power supply of the corresponding voltage to illuminate.

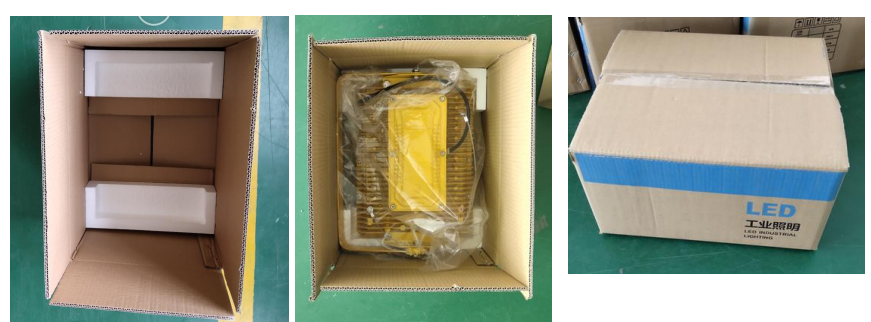

Packing

17

Using The Matters Needing Attention

1. This product is an explosion-proof product and can be used in explosion-proof places.

2. When transporting, the lamp should be installed in the carton equipped with foam shock absorption.

3. When using, the surface of the lamp has a certain temperature rise, which is a normal phenomenon.

4. The power supply voltage can work normally in the rated voltage. If the power supplyvoltage is too high, the lamp will be damaged; if the voltage is too low, the lamp will not start

Parameters

ITEMDescriptionUNIT
Rated Voltage

AC220

V
Power80-200W
Protection LevelIP66
Lighting Angle100°
LED Qty180pcs
Explosion proof gradeEx d e mb IIC T6
Light efficiency120Lm/W
Frequency50/60Hz
Power Factor>0.95PF
Operating Temperature-20~40
Storage Temperature-20~40
Correlate Color Temperature3000-6500K
Color Rendering Index≥70RA
LED'S Operating Life100000Hours
Start-up time≤0.2S
Executive standardGB3836.1 GB3836.2
Anticorrosion gradeWF2mm
Weight10.5kg
