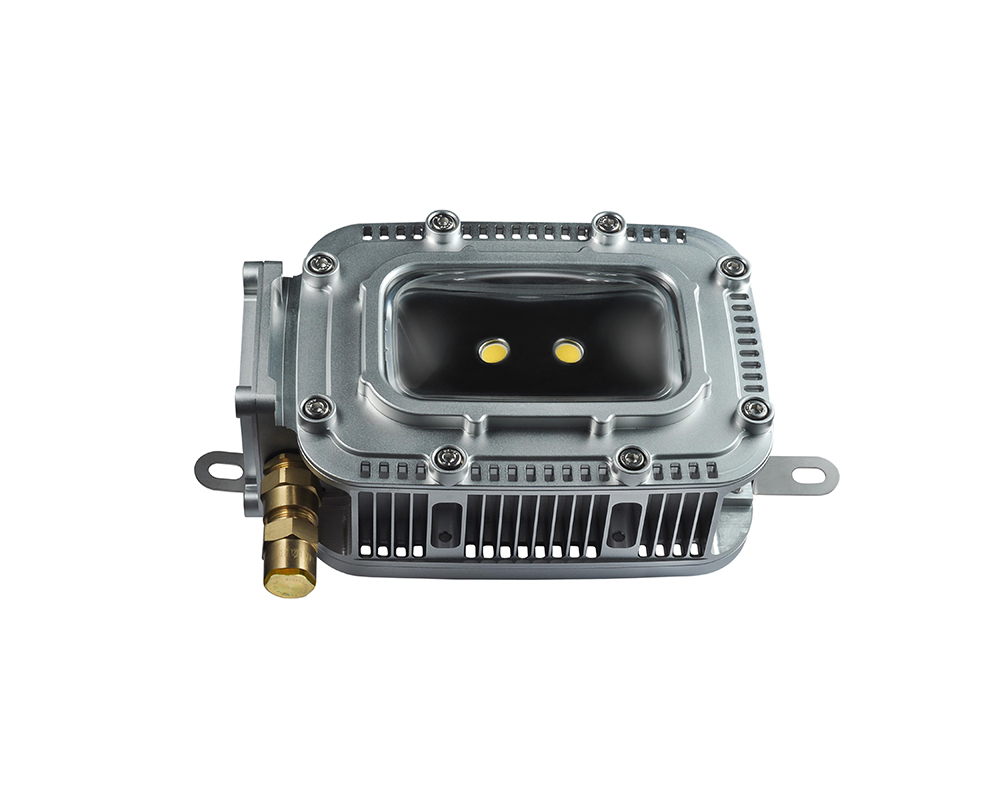

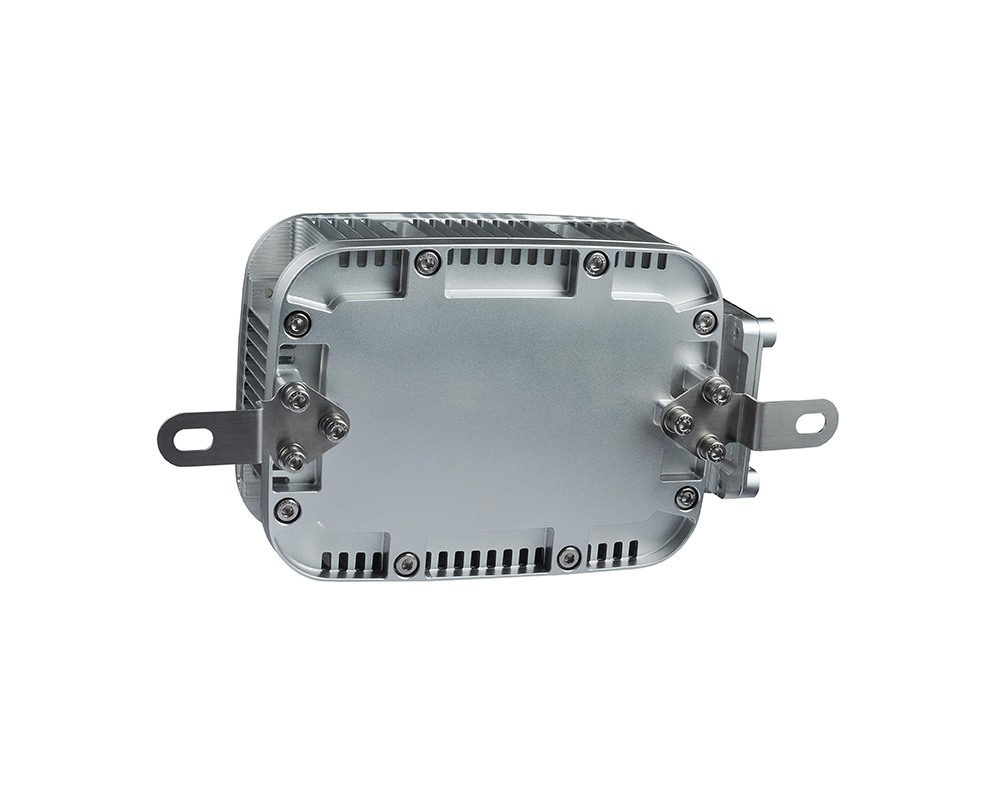

DMT-60 60w led mining safety explosion proof tunnel light

DMT-60 60w led mining safety explosion proof tunnel light

Model Number: DMT-60
LED Light Source: CREE
Input Voltage(V): AC85-265V
Lamp Power(W): 60
Lamp Luminous Flux(lm): 6000
CRI (Ra>): 78
Working Temperature(℃):-30 - 50
Working Lifetime(Hour): 50000
IP Rating: IP67
Ex mark: EXD I, EXD IIB T5
Housing: stainless steel
Certificatiion: ATEX,CSA,CE,ROHS

DMT-60 60w led mining safety explosion proof tunnel light





Product Description

Product details of led mining safety explosion proof tunnel light :



1. 2pcs 30 watt Cree high power LED to get more than 6000 lumens output, which is specially designed for tunnel illumination of underground mines, industry plant and offshore oil plant etc..



2. Stainless steel housing and bulletproof toughened glass lens, which make the IP67 waterproof led light absolutely corrosion proof and unbreakable.



3. Long life span, and no maintenance cost, absolutely explosion proof, dust proof and water proof.



4. Total power consumption of the mining safety LED tunnel light is only 60watt.



5. With emergency battery which can last 1.5 hours lighting time when power cut off.



6. Ex-mark: ExdI, Exd IIB T5



Specifications of led mining safety explosion proof tunnel light :



Items

Unit

Total power consumption:

60watt

Output lumens:

6000 lumens

Rated Voltage

AC 85~265V

Dimension:

39.98 * 30.05* 14.26cm

unit weight(lamp)

6.5 kg

Power factor (λ):

>0.9

Certificate

CE, FCC, CE, EX, CSA

CRI:

78

CCT:

6500K

Corrosion proof grade:

WF2

IP Classification:

IP67

Explosion protection classification:

EXD I, EXD IIB T5

Equipment category:

MI, MII

Area classifications (gases):

Zone 1 and 2

Gas Group:

IIA, IIB,

Area classification (dusts):

Zone 21 and 22

Temperature classification:

T5

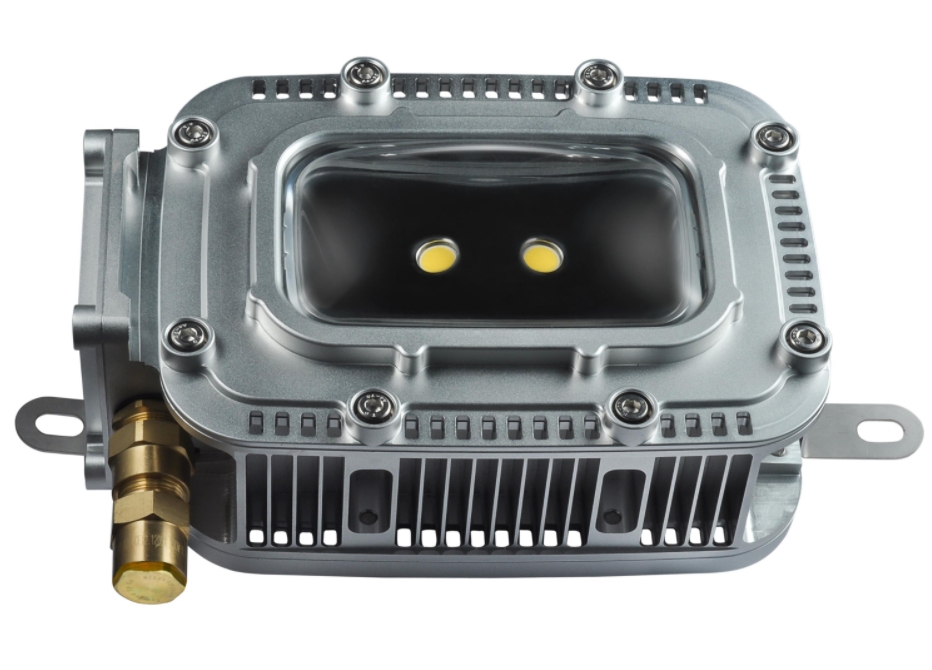

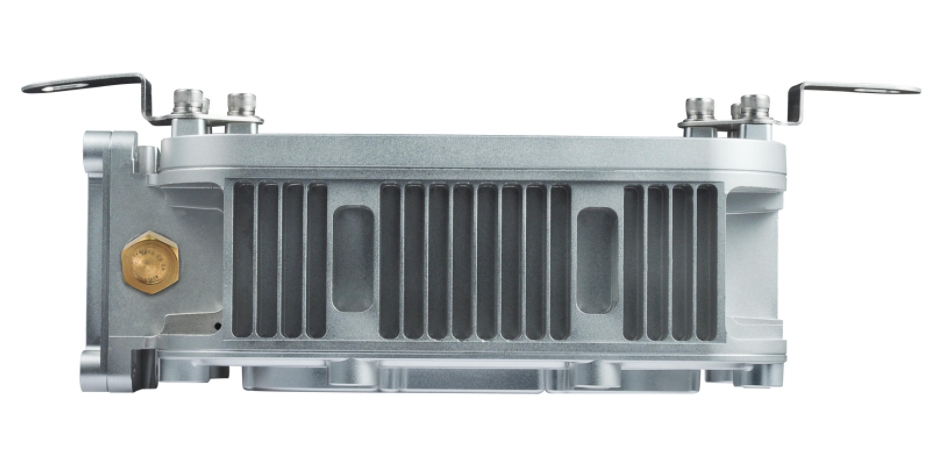

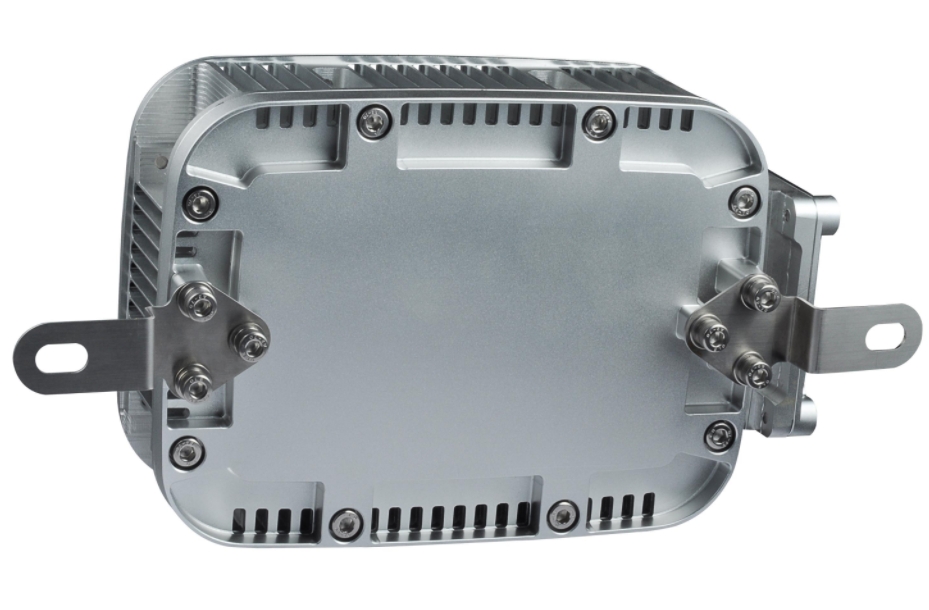

Product show explosion proof led tunnel light :

safety tunnel light|mining tunnel light|explosion proof tunnel light60W tunnel light/explosion proof tunnel light/led mining tunnel lightLED tunnel light/safety tunnel light/mining tunnel light







Usage :



1. outdoor explosion proof area, tunnel light.

2. Coal mine, offshore oil plant,metal mine,gold mine, marine and so on.





Packaging & Shipping



Packing details: 1pc in one carton, unit weight: 6.5kg

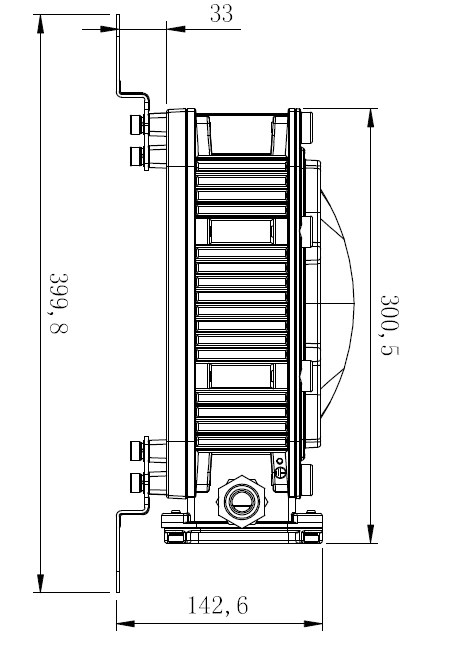

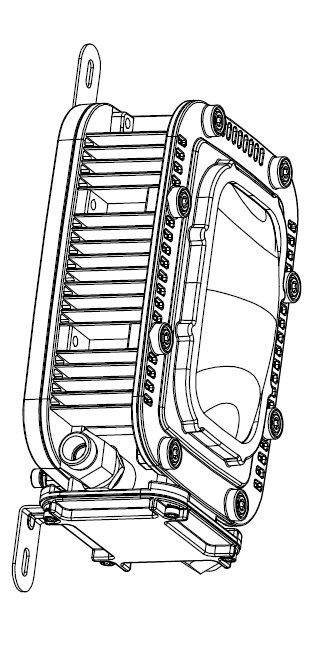

Structure :

led mining safety explosion proof tunnel light

led mining safety explosion proof tunnel light



Our Services



Focused on LED products, provide good quality, quick delivery, AQ discount for all customers.

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide custom-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems of technical.

5. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Looking forward to cooperating with you.



Company Information

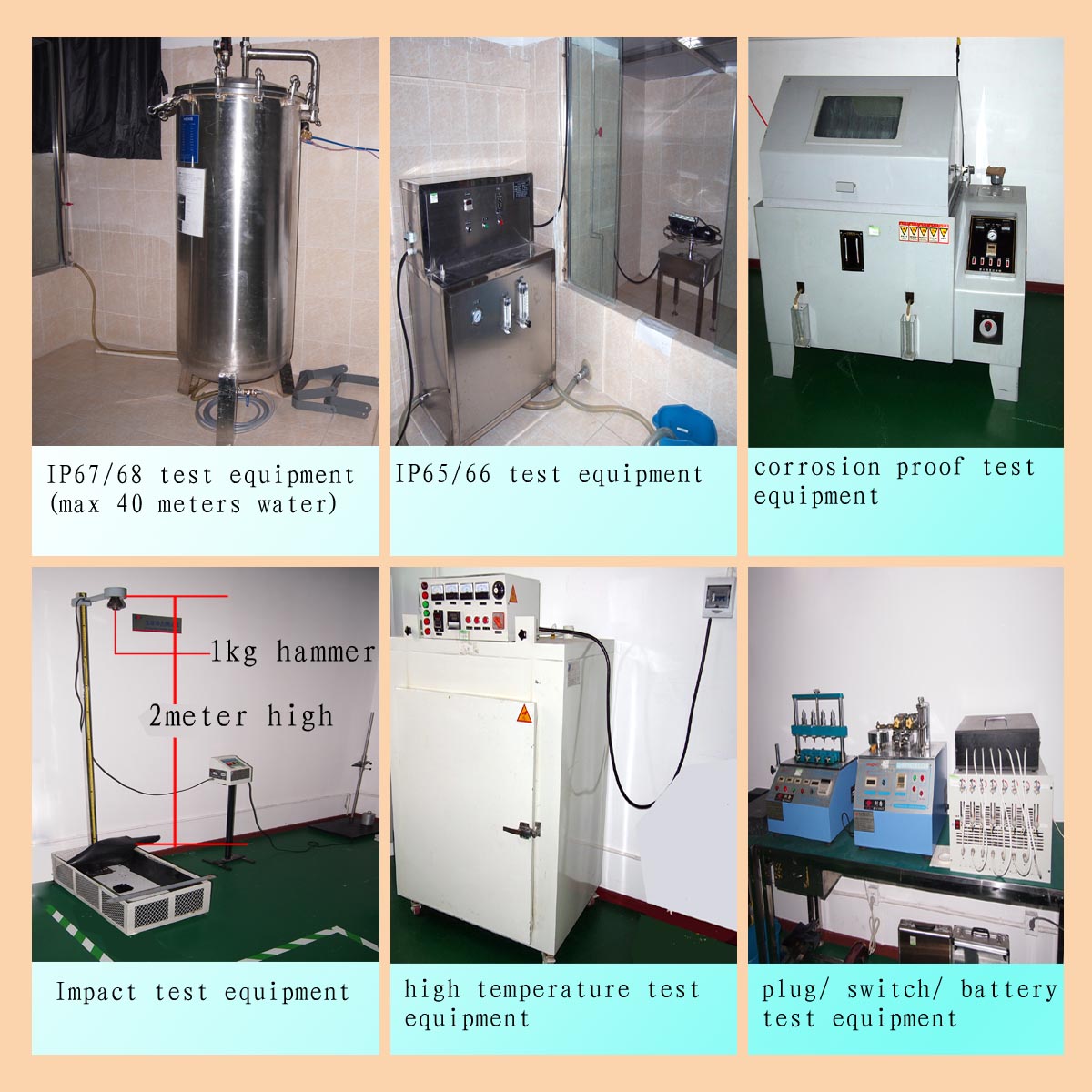

TEST EQUPMENT:

60W LED tunnel light test

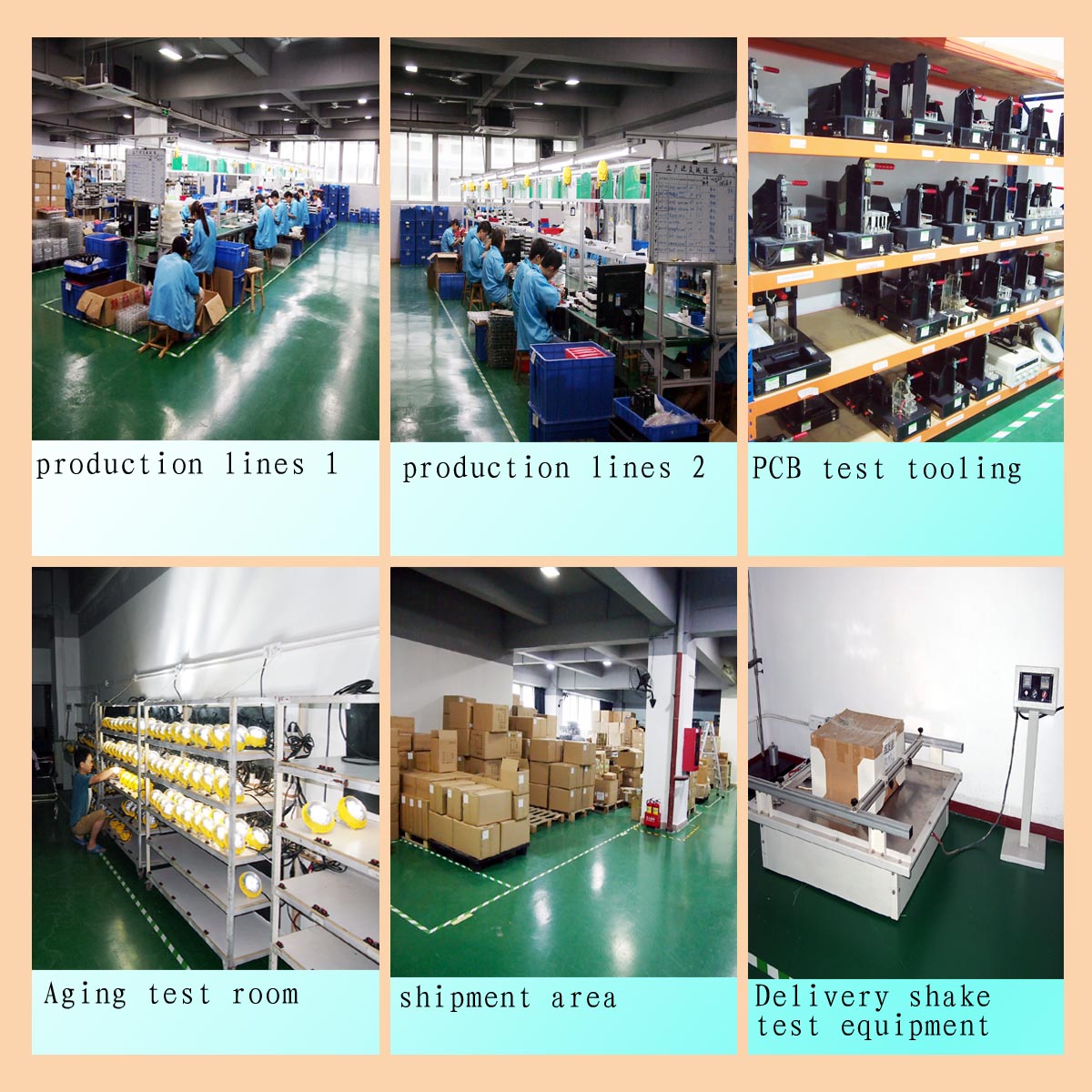

WORK SHOP
