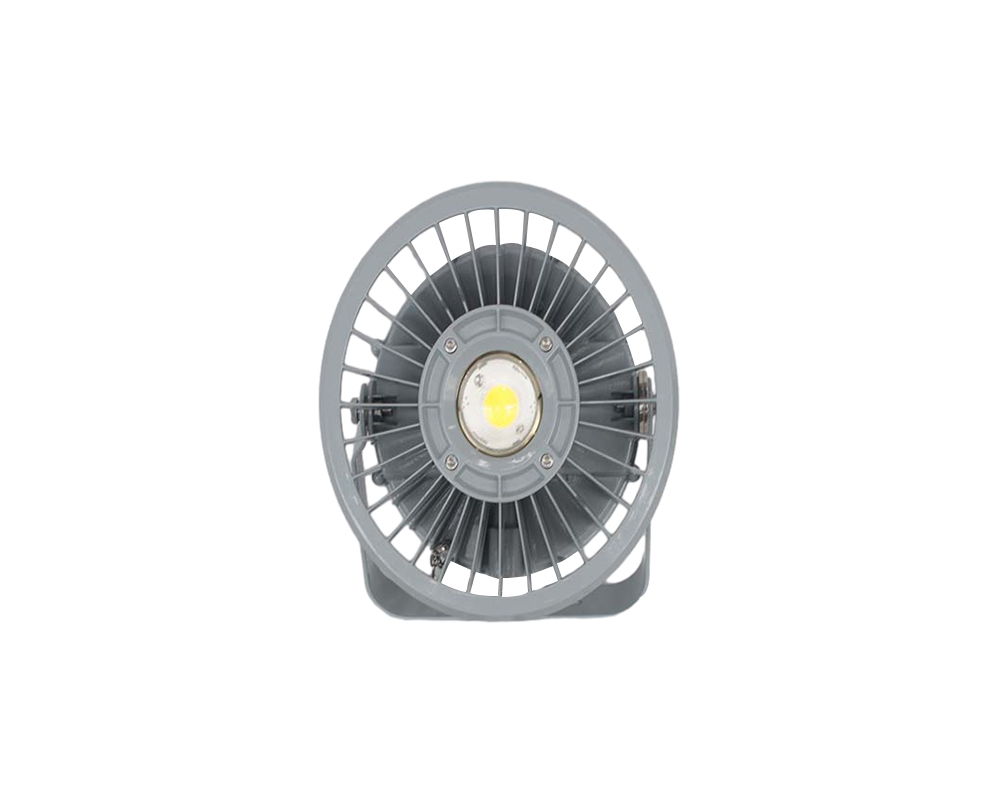

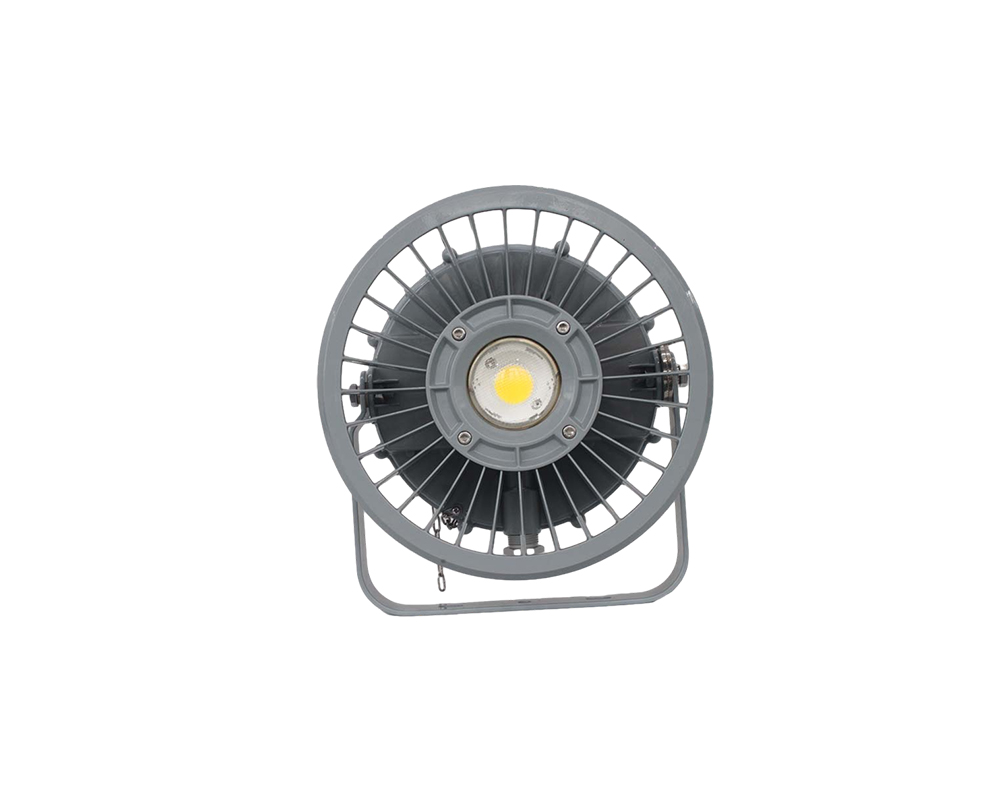

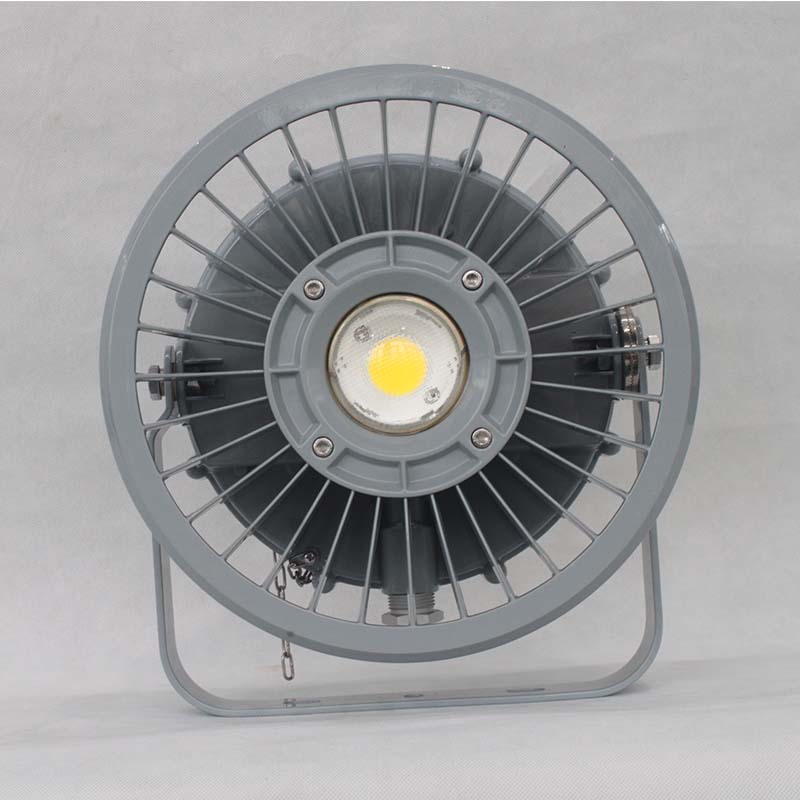

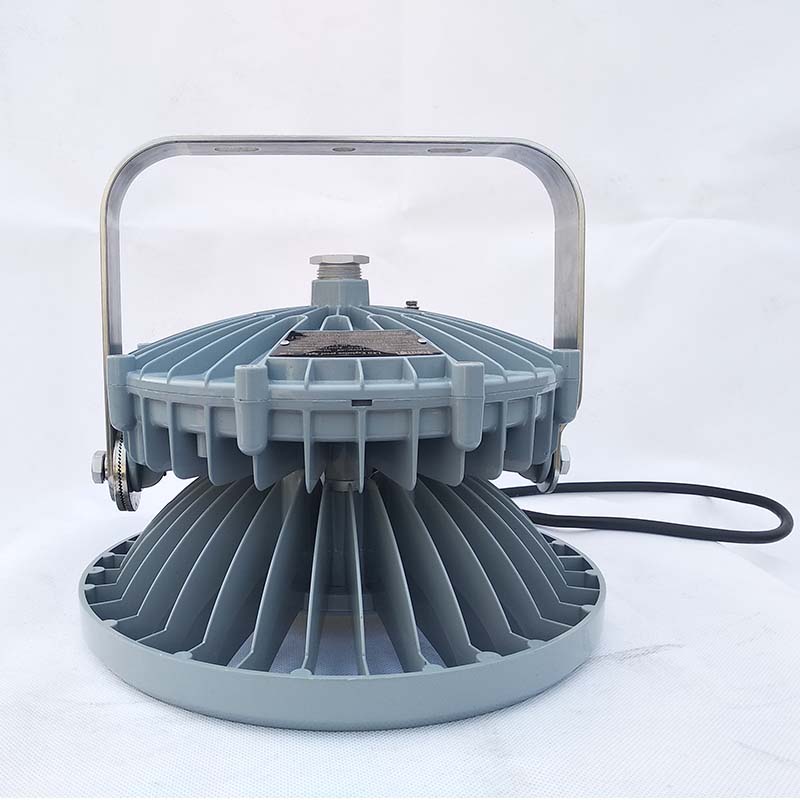

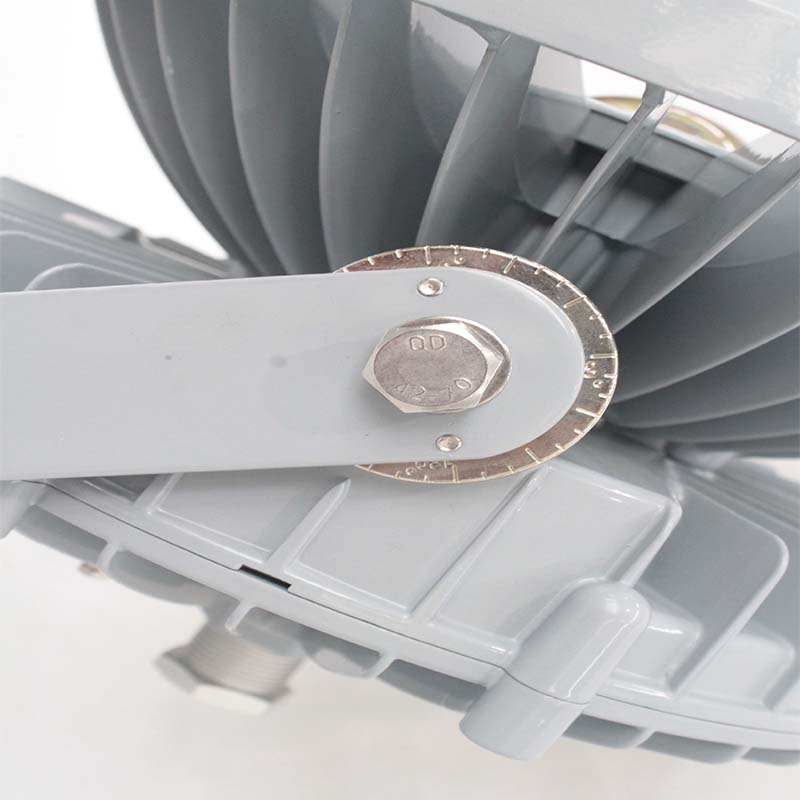

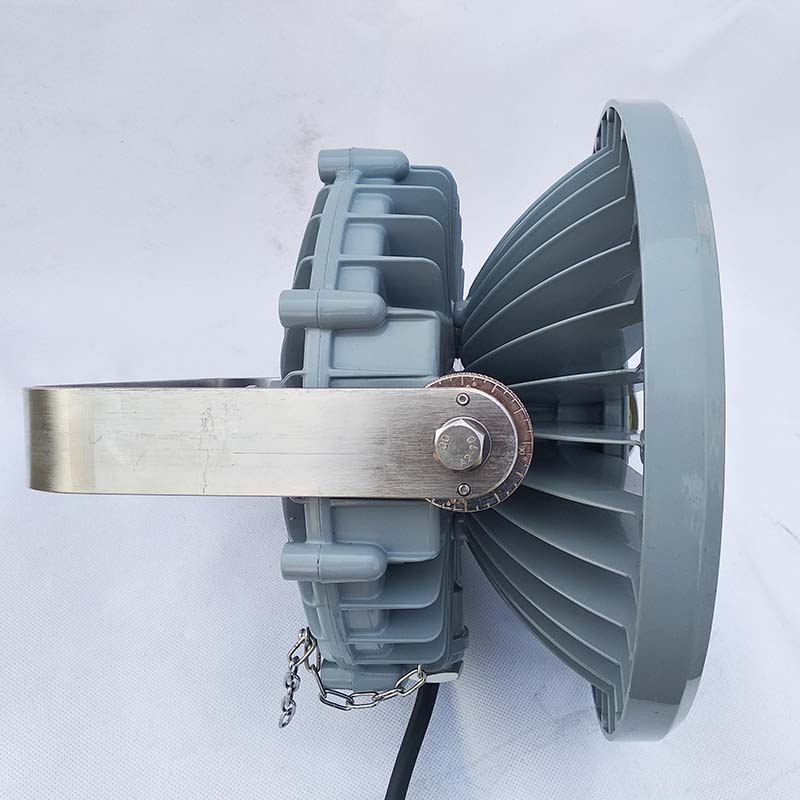

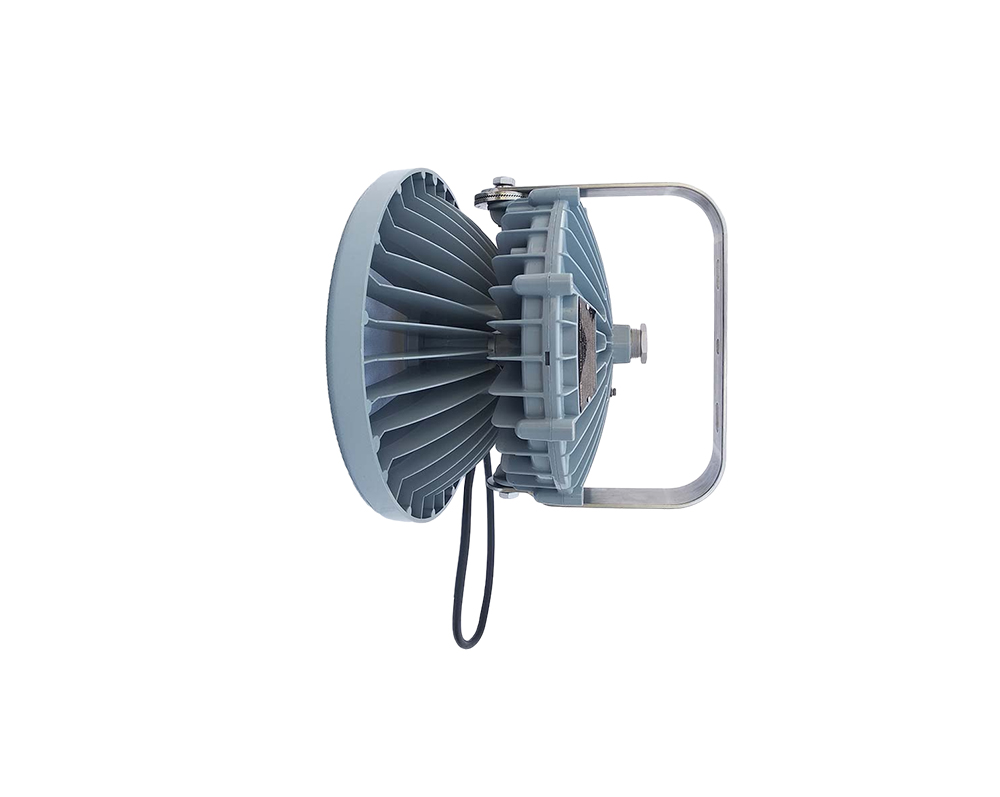

DL9700 ATEX LED High Power Explosion Proof Ligth

Model Number: DL9700

Light Source: led

Life time (h): 50,000

CRI (Ra): 70

Working Lifetime(Hour): 50000

IP Rating: IP66

Dimension (mm): 300×202×332

Net weight (kg): 6.3

Ex mark: Ex db IIC T5/T4/T3 Gb,Ex tb IIIC T95℃/T130℃/T195℃ Db

Product Details

DL9102 ATEX LED High Power Explosion Proof Ligth

This product is suitable for Low installation height in Moist corrosive environment ,such as offshore drilling platform, Oil Terminal, etc.It is ideal to be used in the environment of flammable gas, steam and dust environment, such as Petrochemical Plant, Chemical Plant, Coal Washery, Pharmaceutical Factory, etc.

Characteristics

1. A full range of high conductivity material accelerate convection cooling structure , effective guarantee hong-term use in high temperature environments .

2. Variety of light distribution , variety of installation types , an effective solution to beautify workshop and device platform .

3. It adopts imported light source , no dark spot , energy-saving is 60% more than Metal Halide Lamp .

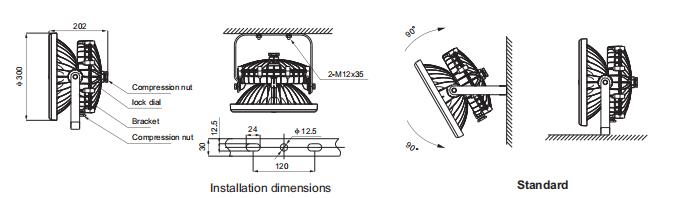

Drawing of dimension (Dimensions in mm)

8

Parameters

ItemTechnical parameter
Input voltage (V)90~305VAC(60W/80W/100W/120W/150W/200W)
Rated frequency50Hz / 60Hz
CRI(Ra)70(80 optional)
CCT5000K (3000K/ 4000K optional)
Screw threadM20×1.5, M25×1.5, G3/4", NPT1/2", NPT3/4"

Application

1. Zone 1,zone 2;zone 21,zone 22

2. Suitable for Low installation height in Moist corrosive environment ,such as offshore drilling platform, Oil Terminal, etc.

3. Ideal to be used in the environment of flammable gas, steam and dust environment, such as Petrochemical Plant, Chemical Plant, Coal Washery, Pharmaceutical Factory, etc.

4. Areas for high demand of high temperature performance.
