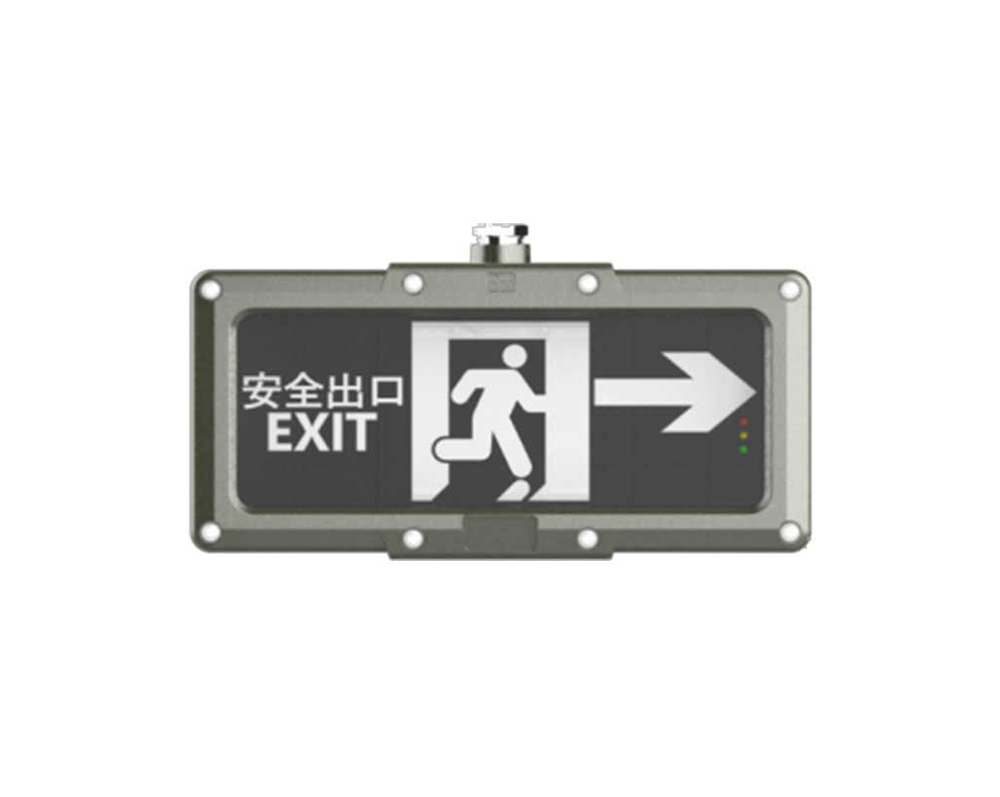

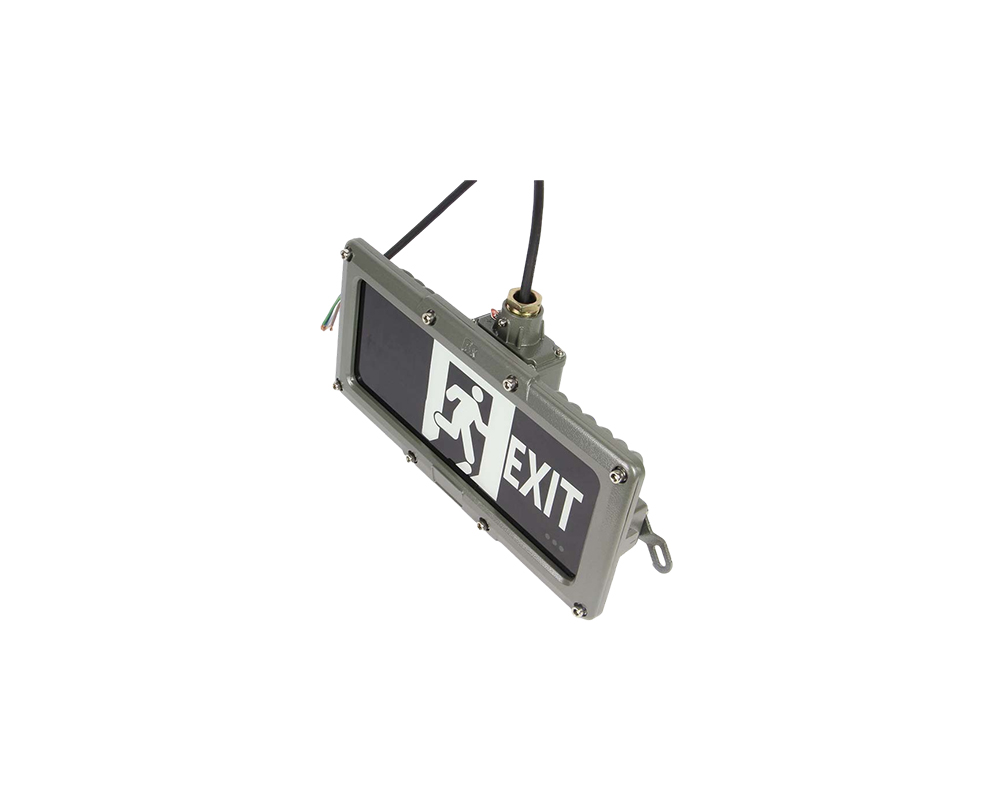

DL191 LED Explosion Proof Exit Light Signal Light High-Resolution Display Light

Model No:DL191

Input voltage:AC220-240v

Led source: Cree led, 120lm/w

PF>0.95 CRI:Ra>70

Ex mark: Ex d IIC T6

Waterproof grade:IP66; Corrosion proof:WF2

Weight: 2.6KG

Size: 350*182*79mm

Product Details

DL191 LED Explosion Proof Exit Light Signal Light High-Resolution Display Light

This product is suitable for road sign indication and safe evacuation guidance instruction in workshop and passageway of petroleum, chemical industry, oil depot, ship and other industries.

Product Features :

1 . The highest explosion-proof grade can work safely in all kinds of flammable and explosive places. Intelligent protection circuit is adopted to automatically cut off power after opening the cover, so as to ensure safer maintenance ;

2 . The field-effect crystal luminescence technology has the characteristics of high-resolution display, energy-saving and environmental protection, and the lifetime of the light source is up to 20,000 hours.

3 . Precision structural design and high-tech surface spraying treatment, dust-proof and waterproof, corrosion-resistant, impact-resistant, reliable and durable.

4 . The main power is automatically converted to emergency function after power cut. The emergency working time is up to 3 hours, which is twice as long as that of common sign lamp.

5 . Ultra-thin shape, beautiful and lightweight, graphics, text signs can be customized according to customer needs.

6 . It can adopt various installation modes such as suction top and wall hanging, which are convenient and practical.

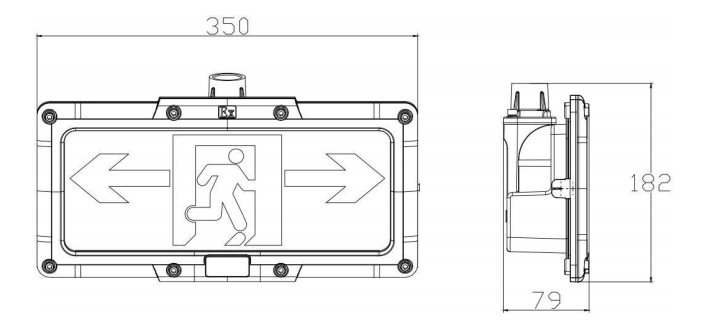

Diemensions :

22

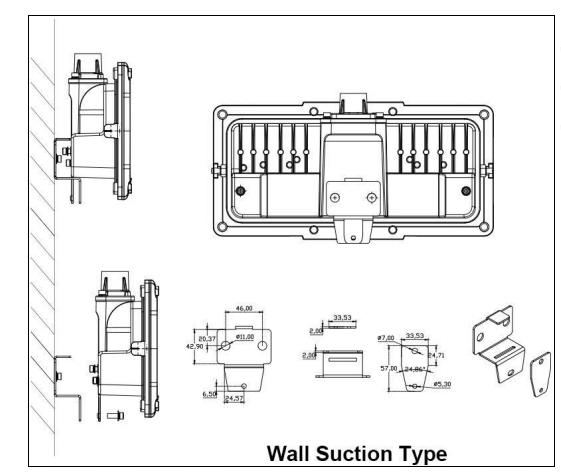

Install :

22

Parameters

ITEMDescriptionUNIT
Rated VoltageAC220V
Power3W
Protection LevelIP66
Anticorrosion gradeWF2
LED Qty6pcs
Explosion proof gradeEx d e mb IIC T6
Light efficiency120Lm/W
Frequency50/60Hz
Power Factor>0.95PF
Operating Temperature-30~50
Storage Temperature-30~50
Correlate Color Temperature3000-6500K
Color Rendering Index≥70RA
LED'S Operating Life100000Hours
Start-up time≤0.2S
Executive standardGB3836.1 GB3836.2
Size350*182*79mm
Weight2.6kg
