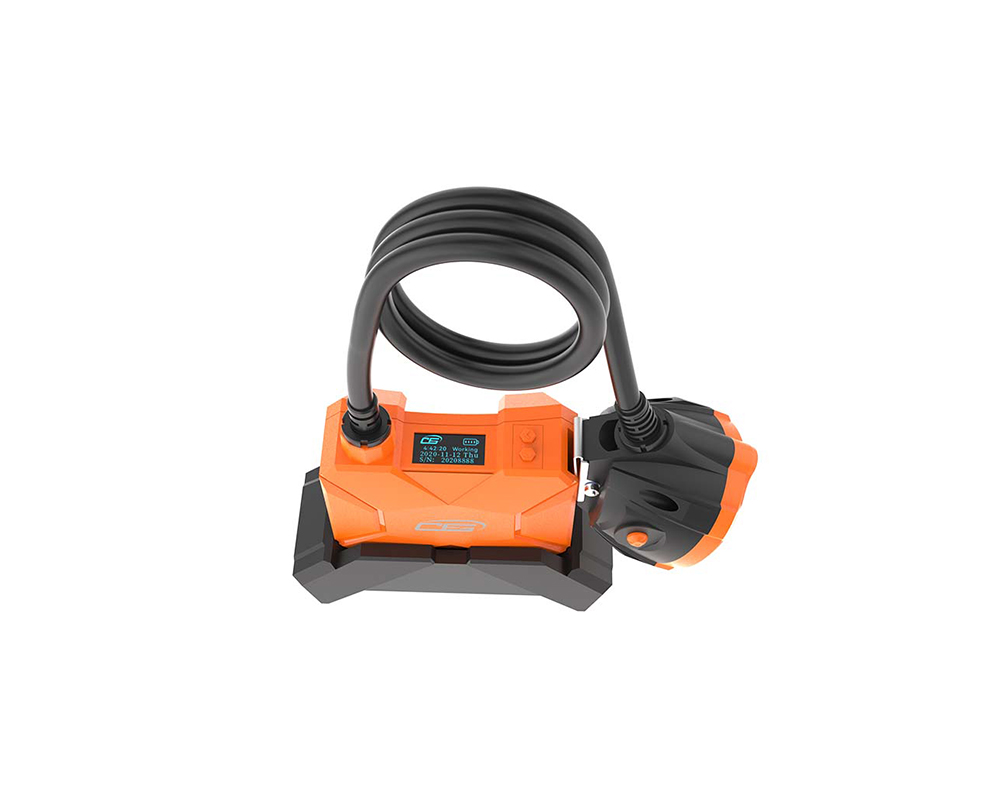

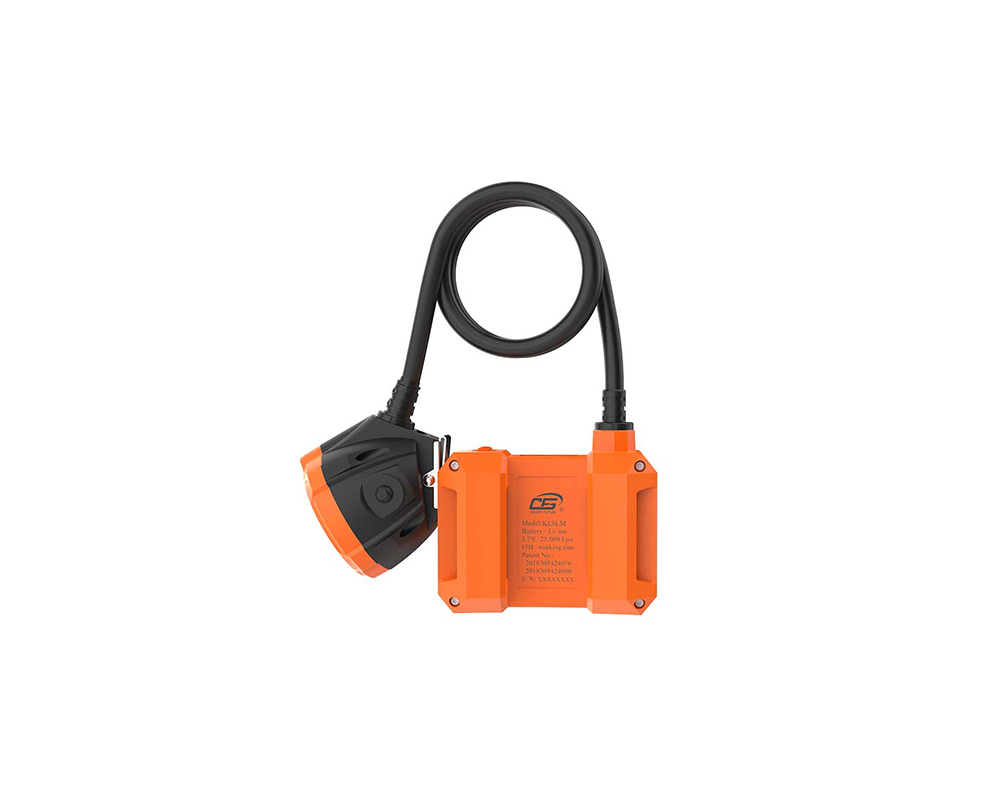

KL8LM underground safety corded miners lamp led mining headlamp with digital device ​

Model Number: KL8LM

Lamp Power(W): 3

LED light source: Cree XPE-2

Battery capacity: 7.8Ah

Charging time: <6H

Lighting degree: 25000 lux

IP Rating: IP68

Feature: OLED display screen

Weight (with battery):550g

Ex-mark: I M1 Ex ia T5 Ga

Warranty(Year): 1

Product Details

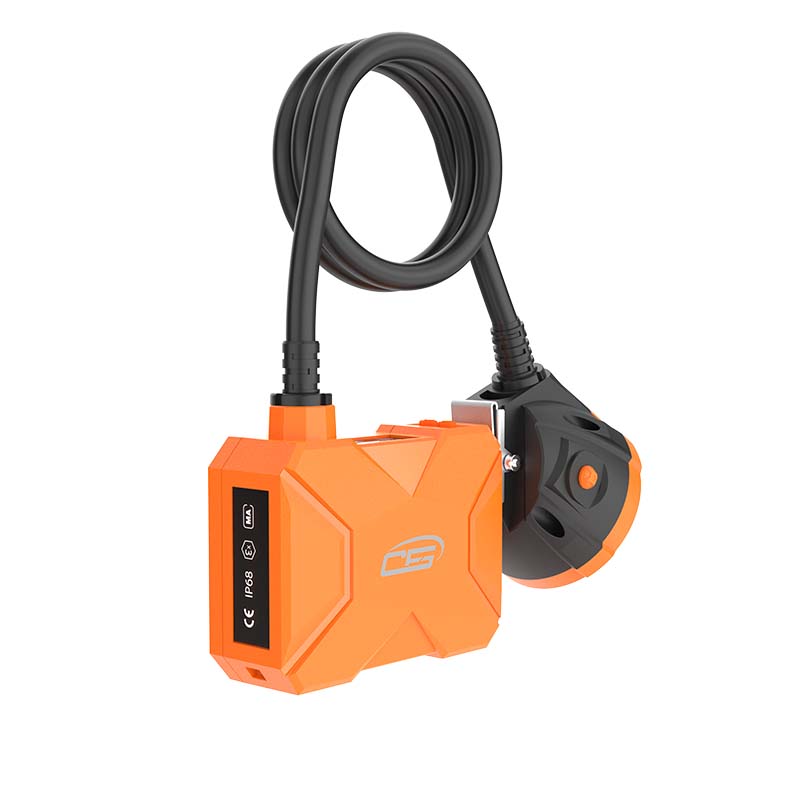

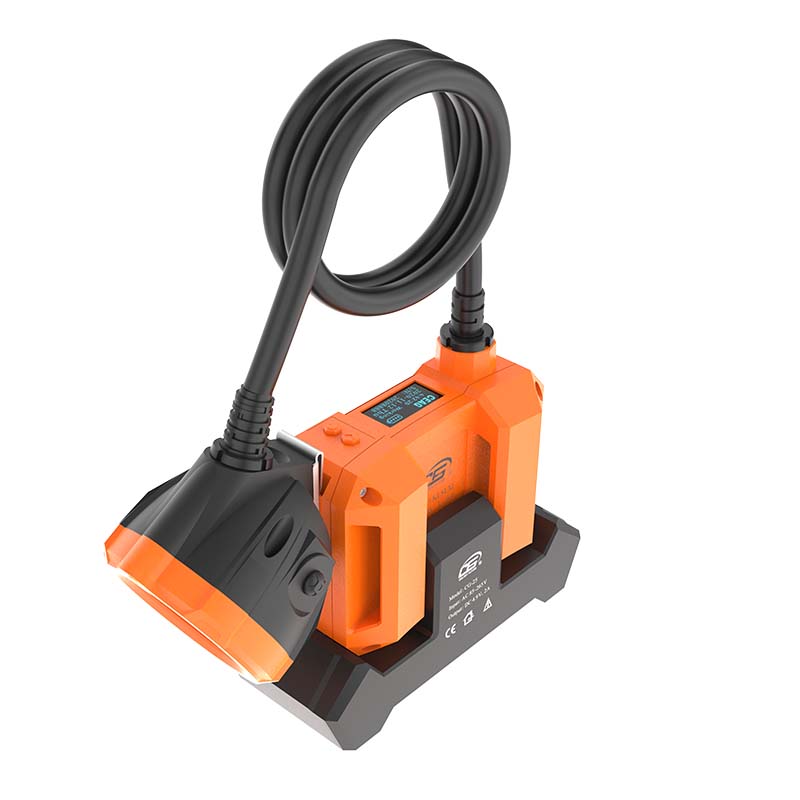

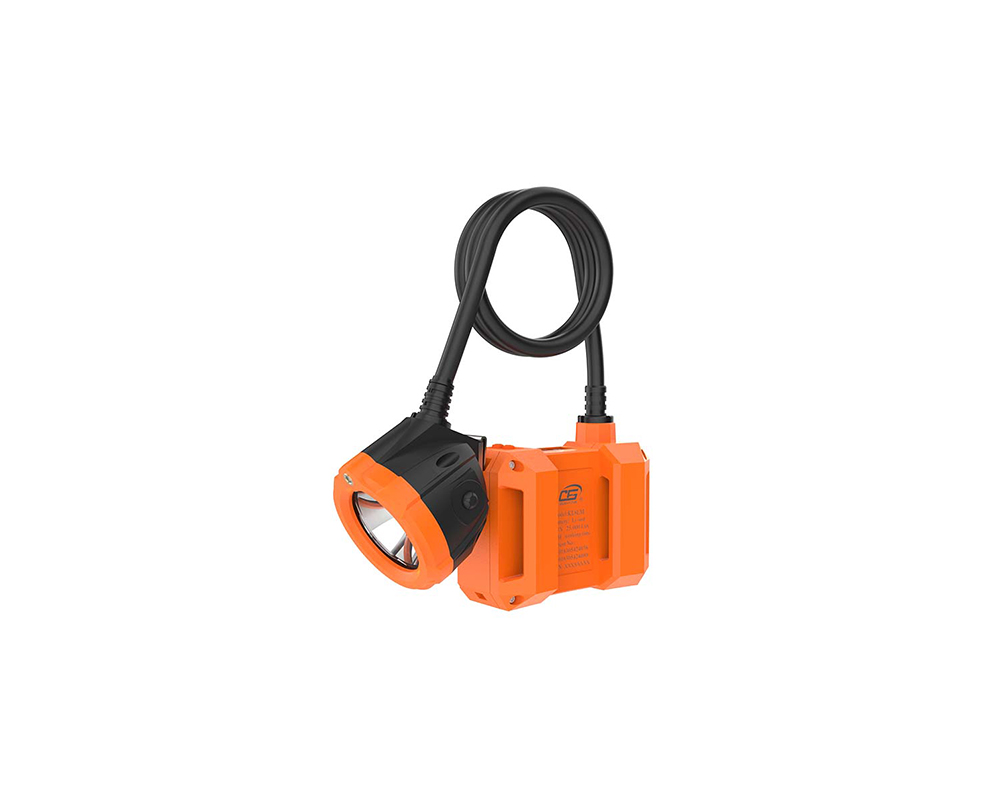

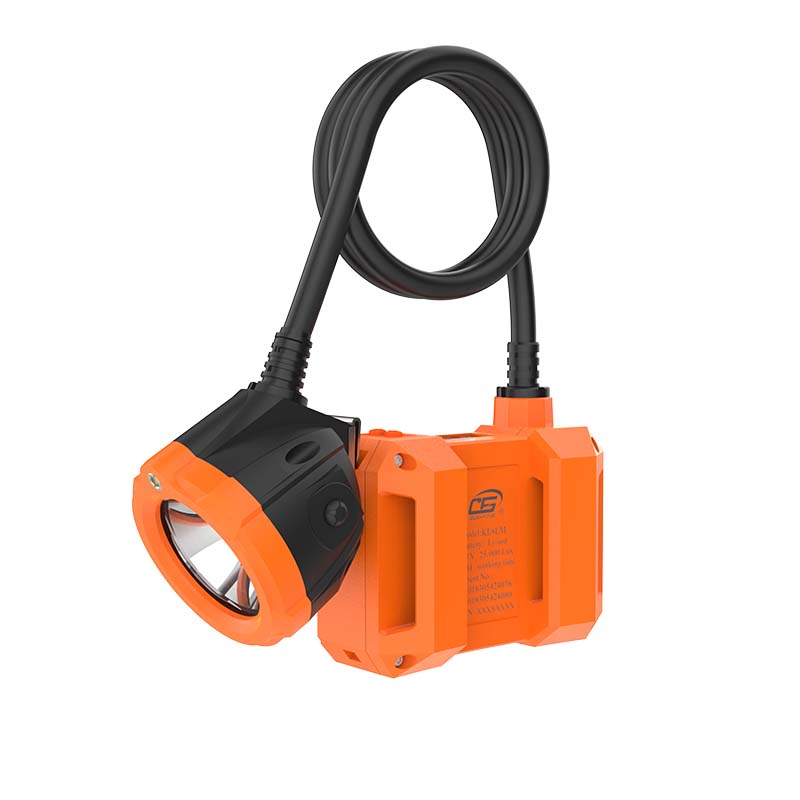

KL8LM underground safety corded miners lamp led mining headlamp with digital device

Underground safety corded miners lamp led mining headlamp KL8LM is a digital corded miner cap lamp. There are 3 kinds of lighting mode:main LED(more than 25000Lux), auxiliary LED and laser pointer. And the GF Brand logo on the battery box can light on as indication for charging and rear safety. The OLED display can show time,date battery balance,lamp series number,working model and charging status; It is widely suitable to be used in mining,construction site,emergency rescue and other outdoor activities.

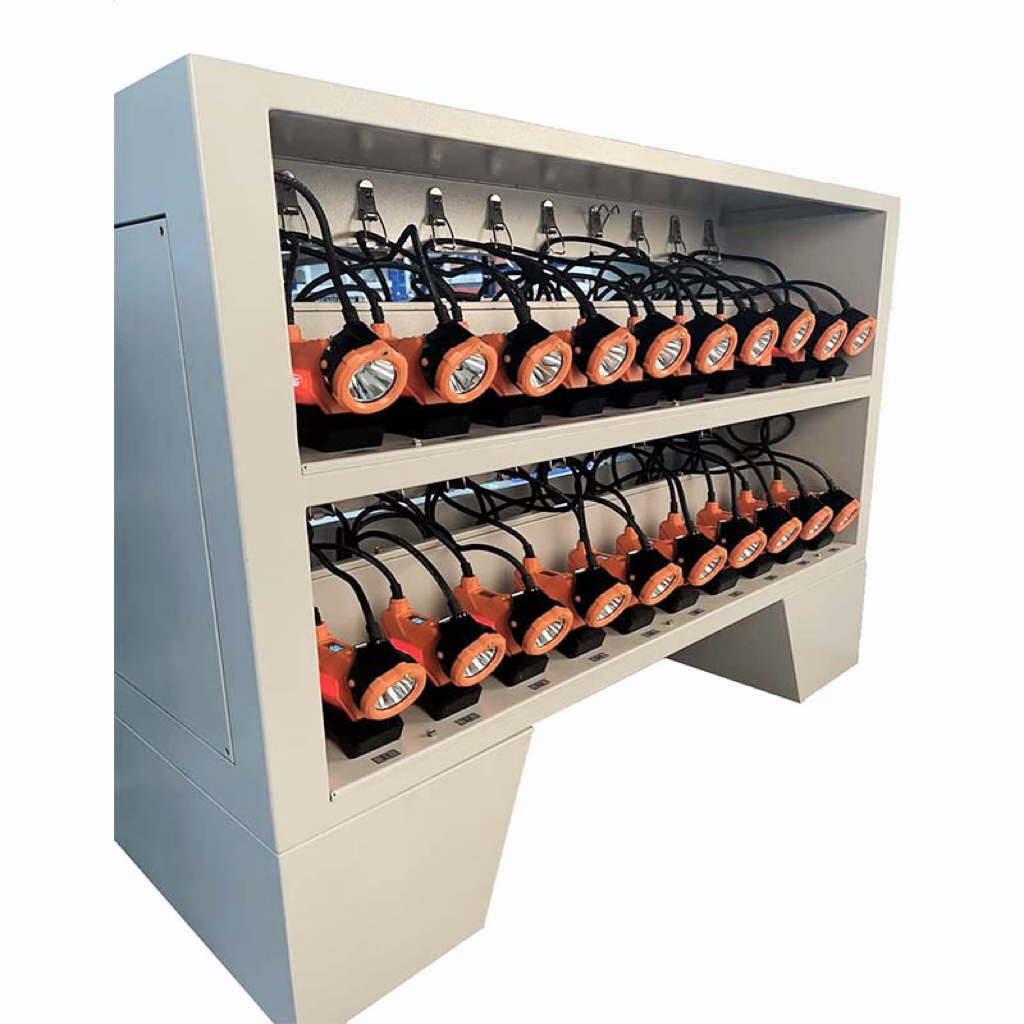

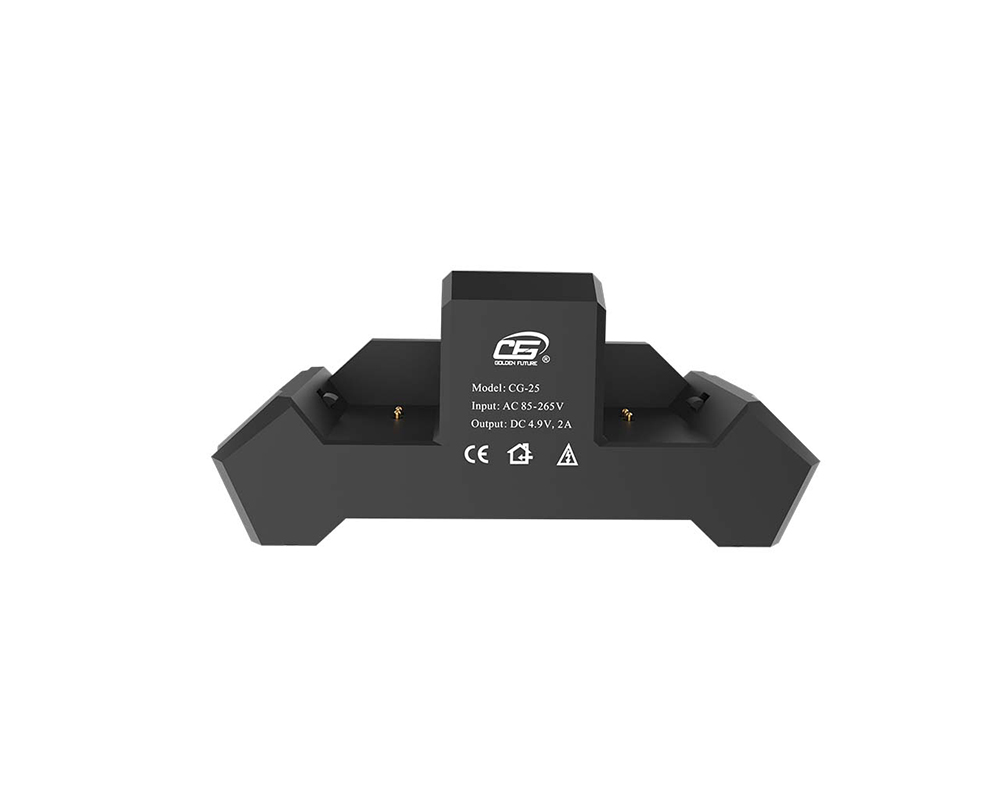

Charger rack with lock catch

2

Advantage of KL8LM underground safety corded miners lamp led mining headlamp with digital device

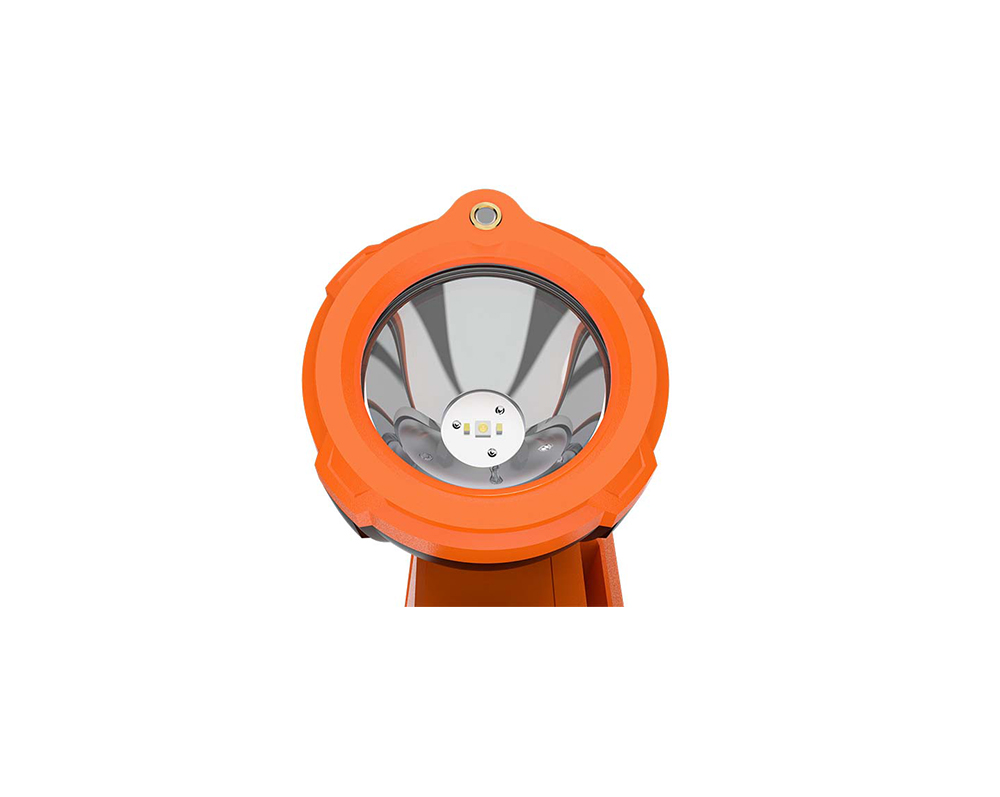

● 3 kinds of light source:main LED, auxiliary LED and laser pointer

●Headlamp function:main LED full bright(more than 25,000 lux),auxiliary LED light on,or laser pointer light on.

● Indication on Brand logo: the brand logo on battery box will ight on in white color for rear safety       when the headlamp light on; and the brand logo will show red color when charging,and turn to green color when the battery full charged

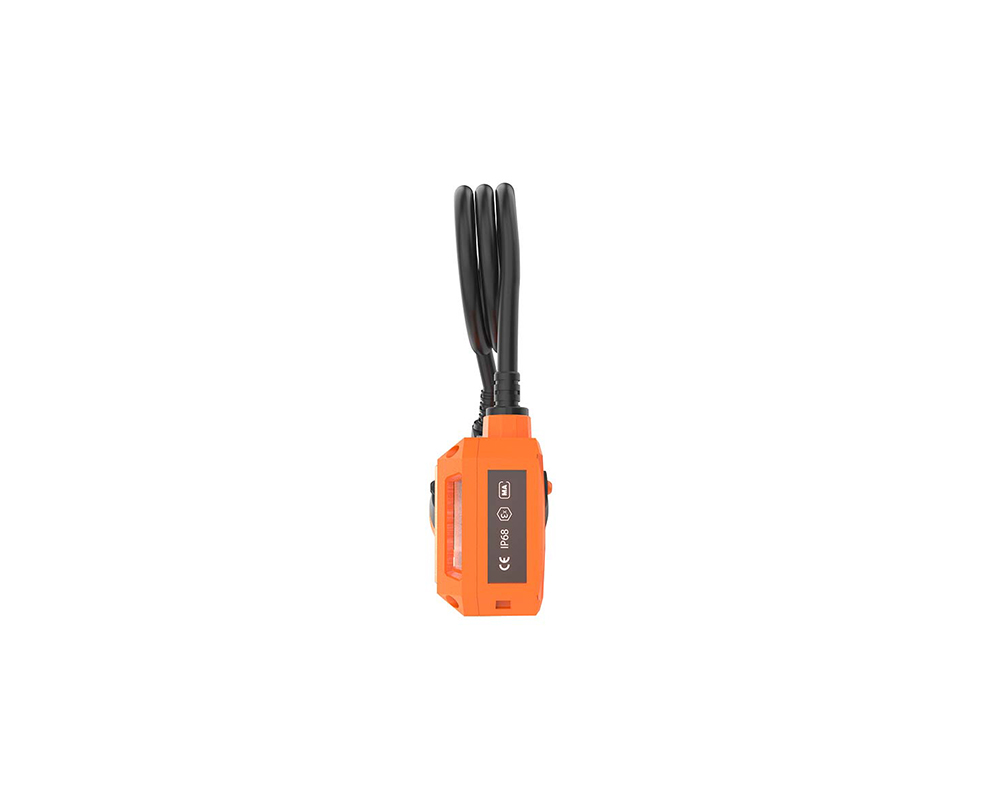

● Digital display: the display on battery box will show time,date,week,battery balance, S/N number,charging status and working mode.

● Reliability: High impact resistant plastic housing,all the plastic parts can afford 20Jimpact;

● Safety:IP68 waterproof protection; With over-charge& over-discharge protection for battery

● Economy:more than 100,000 hours Long lifespan LED;more than 1000 cycles battery lifetime,and maintenance free

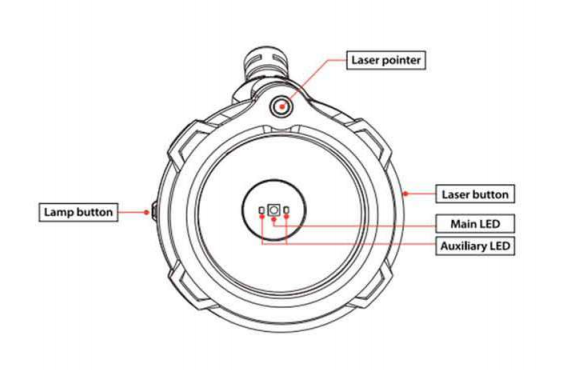

Operation of KL8LM corded miners lamp led mining headlamp

● Press the lamp button (orange color)1st time for main LED full bright;

● Press the lamp button 2nd time for auxiliary light on;

● Press the laser pointer(black color) to turn on the laser pointer;

2

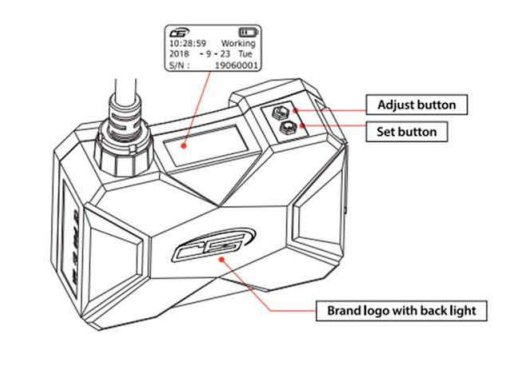

Operation of KL8LM miners lamp display device

● Press the buttons in any status to active the display;

● Press both set button and adjust button at the same time for three seconds,the display turn to time and date setting;"Setting"will be shown on the right of display, and the digit of "hour' start flashing at the same time.

● then press adjust button to set the number of "hour";After that press set button again, the digit of "minute" start flashing,press adjust button to set the number for "minute"

●Repeat the above steps to set the numbers of date and week.

●For S/N change,please contact dealer for help

2

How to charge KL8LM underground safety corded miners lamp led mining headlamp

● Input voltage for the Charger is AC100-240V@50/60HZ;

● Put the battery box on the charger,and hang the headlamp on battery box;

● The brand ogo on battery box turn on red color when charging,and turn to green color when full charged


Packaging & Shipping

12pcs/ctn,gross weight :15kg/ctn ,Carton size : 48*39*37CM


Our Services

We can provide good quality, quick delivery, AQ discount for all customers.

1. For all your inquires, we will reply you in detail within 24 hours.

2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.

3. We have sales who have engage in LED many years to provide customize-made the sales solution.

4. We have engineers who has the experience of projects to solve the problems of technical.

5. We have very experienced R&D and we have strong ability to do ODM projects.

Looking forward to cooperating with you.

Parameters

Technical Parameter of KL8LM underground safety corded miners lamp led mining headlamp with digital device

ParametersValueUnit
Light sourceLED Power3W
Lighting degree25000Lux
Life time100,000hour
Li-ion batteryRated capability7.8Ah
Rated voltage4.9V
Charging time<6hour
Life time1000circle
Chargerinput voltageAC100-240V
output voltageDC5.2V
output current1.5A
Lighting timeMain light>15hours
Auxilliary light60hours
DimensionheadlampDia.76*75mm
battery box112*51*85mm
charger155*64*71mm
Lighting distance200m
Working temperature-20~40°C°C
Highest surface temperature<45°C°C
Weight (with battery)550g
IP ClassIP68
Ex-markI M1 Ex ia T5 Ga

Application

Application of KL8LM underground safety corded miners lamp led mining headlamp with digital device

KL8LM led safety corded coal miners lamp can be widely used for safety lighting for the flammable and explosive environment.such as all kinds of mines, petroleum, chemical industry ,roadway,electric power plant,tunnel,exploring etc.
