ATEX approved KL6LM cordless mining light wireless inductive charging miner cap lamp with OLED display

Model Number: KL6LM

LED light source: Cree XPE2

Power Source: Rechargeable Battery

Battery Type: li-ion battery

IP Rating: IP68

Certification: ATEX

Lamp Body Material: PC

Warranty (Year): 1

Lamp Power(W): 1

battery capacity: 6.6Ah

Charging time: 8H

lighting degree: 15000 lux

Feature:wirelss inductive charging

Feature: OLED display

Ex mark:I M1 Ex ia op is I Ma EN 60079-35-1

Product Details

ATEX approved KL6LM cordless mining light wireless inductive charging miner cap lamp with OLED display

KL6LM cordless miner cap lamp is all-in-one designed with wireless charging technology and OLED display. The max lighting degree is 15000lux,and four lighting modes: strong light,soft light,backup light and SOS flashing. OLED display to show time,date,battery balance,lamp series number,working modes and charging status;

Wireless charging has higher efficiency,and will not have oxidated or corroded problem on charging pins; It can widely be used in mining,construction stie,emergency rescue,and other outdoor activities.

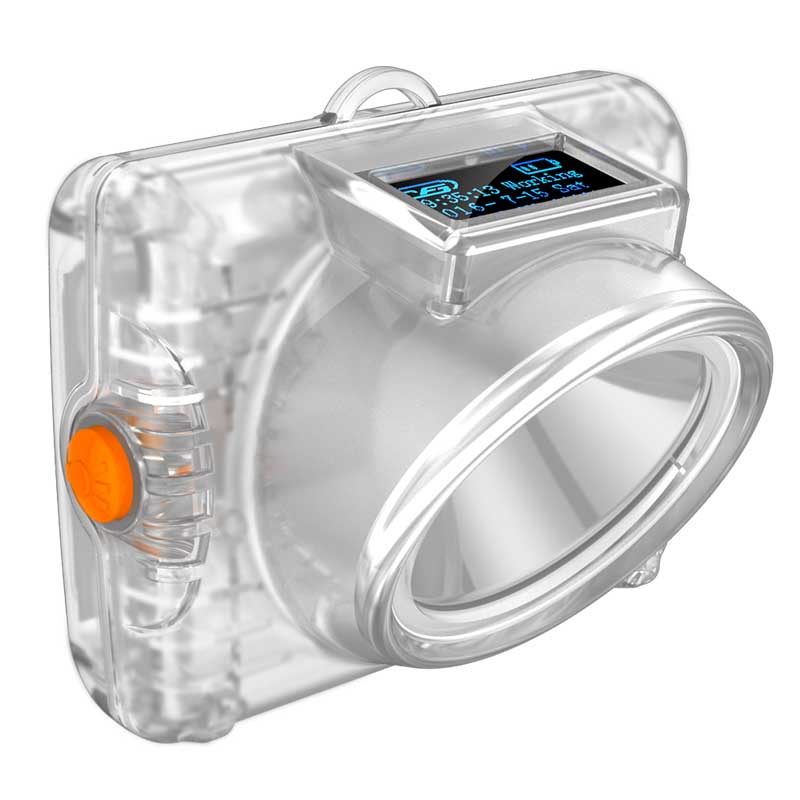

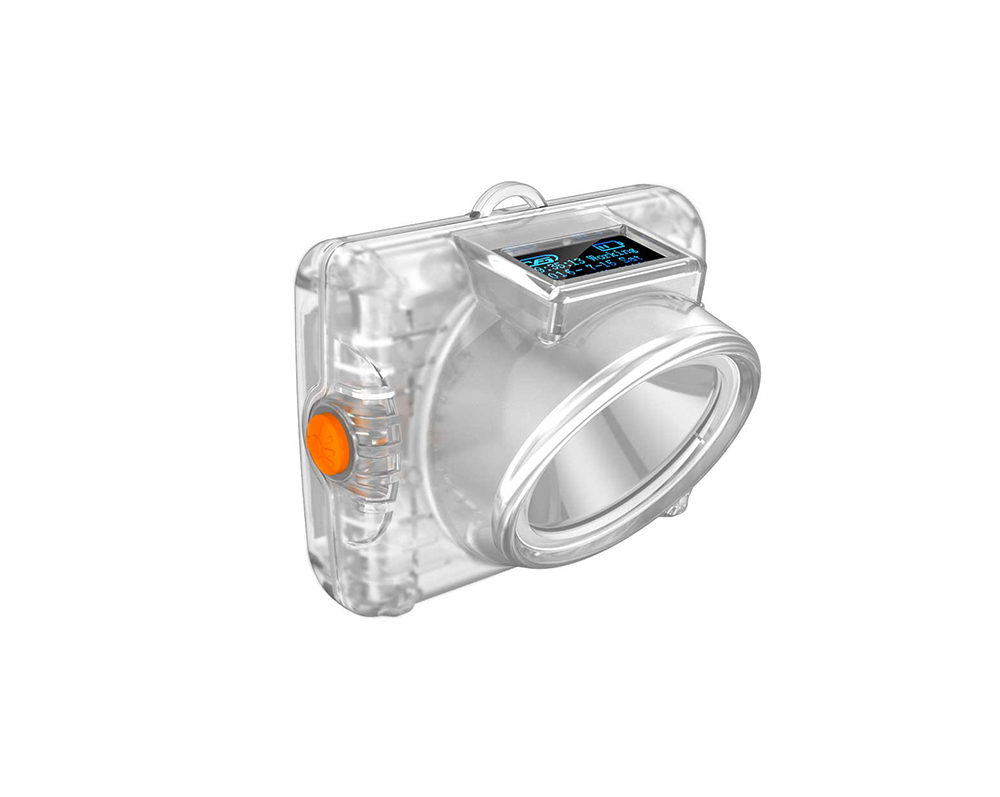

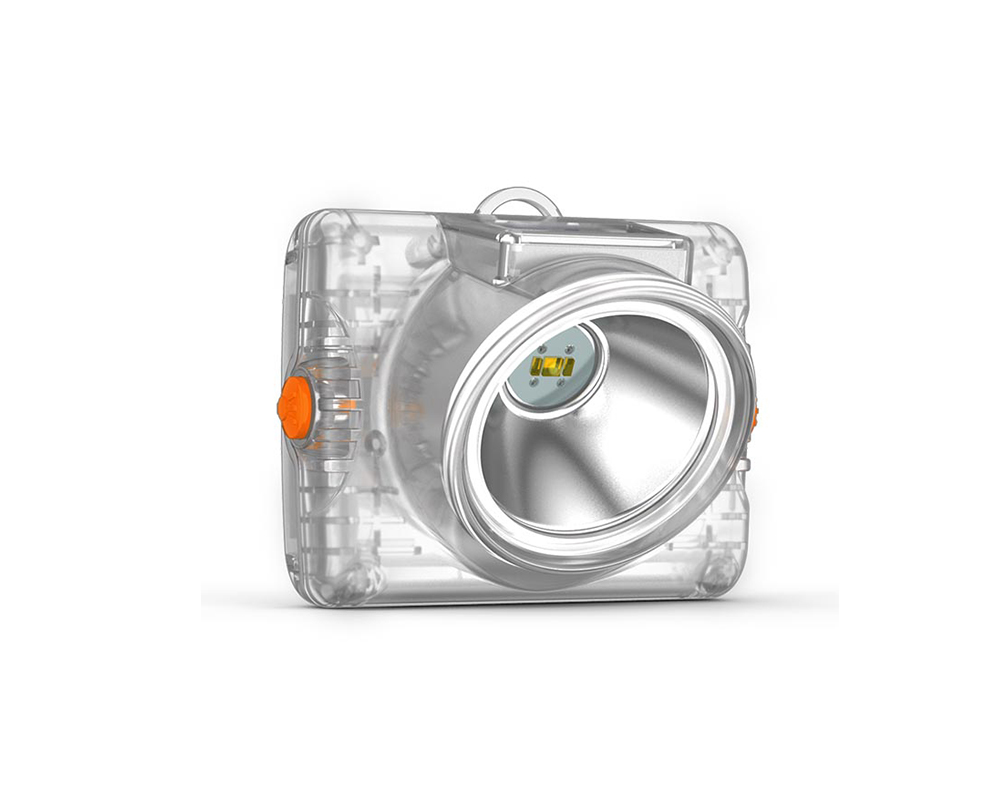

Picture Show of KL6LM cordless mining light wireless inductive charging miner cap lamp

Advantage of KL6LM cordless mining light wireless inductive charging miner cap lamp

●Reliability: High impact resistant, water proof and corrosion proof with matte transparent PC housing.

●Safety: High IP grade with All-in-one intrinsic safety design and compact structure; with over-charge & over-discharge protection for battery.

●Energy saving: In same brightness, the LED can save 70% energy compared with traditional light source.

●Economy: Long lifespan LED; maintenance free.

●Environmental: High Performance and green-environmental lithium battery; low self-discharge rate and no memory effect.

●Portability: Small size and light weight make it comfortable to wear.

●Uniqueness: Wireless charging technology avoids poor contact of charging which caused by the oxidation of charging port, and achieves better IP grade; with OLD display to show time,  battery balance, working mode and the light's serial number;

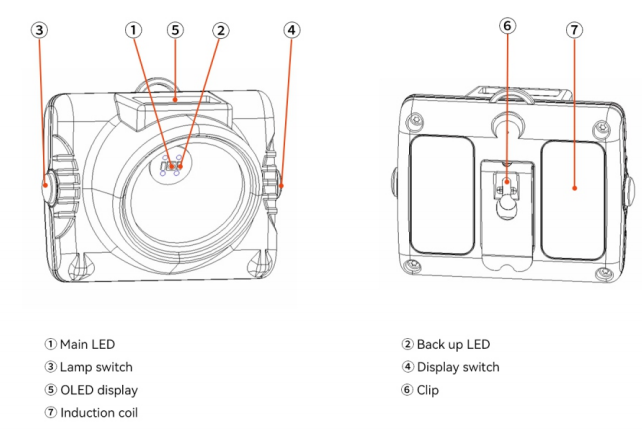

Sturctural parts of KL6LM cordless mining light wireless inductive charging miner cap lamp

20230603104658MO6s75

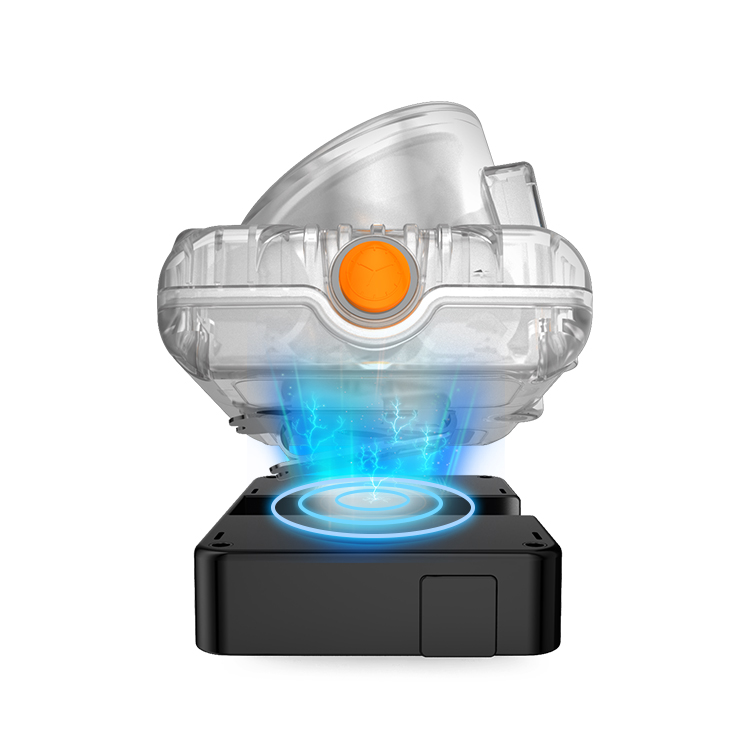

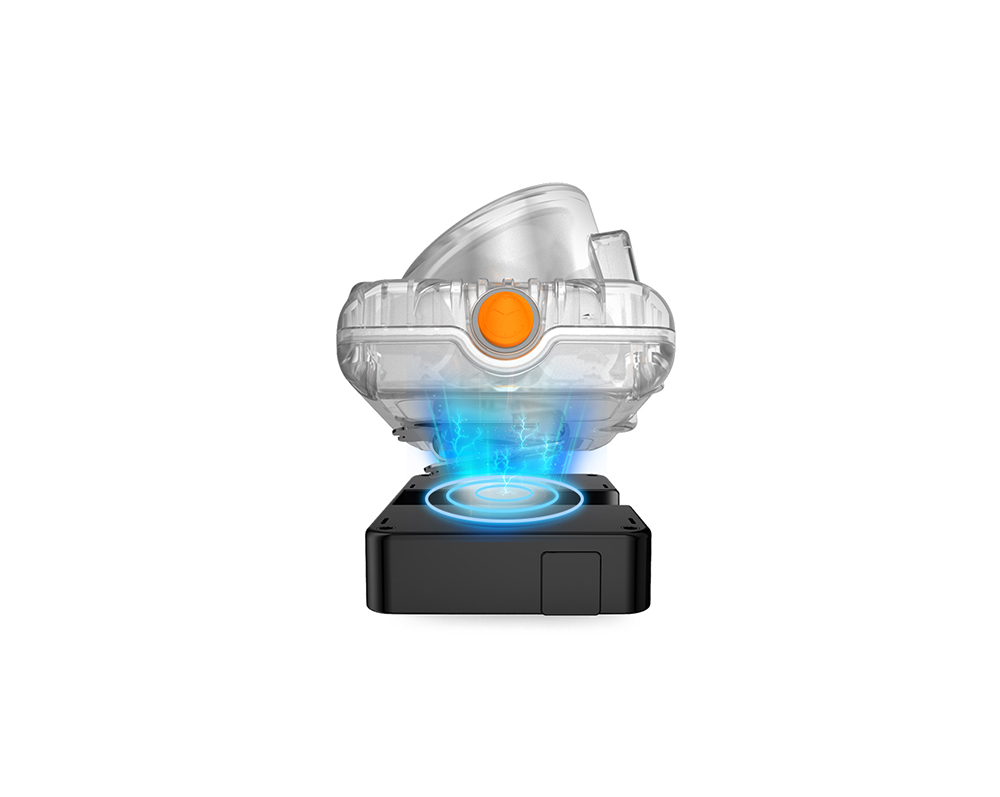

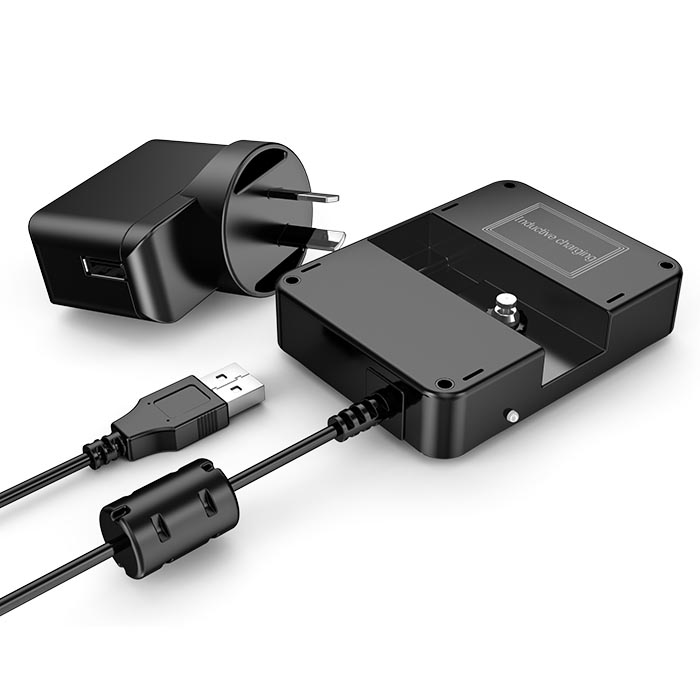

How to charge KL6LM cordless mining light wireless inductive charging miner cap lamp

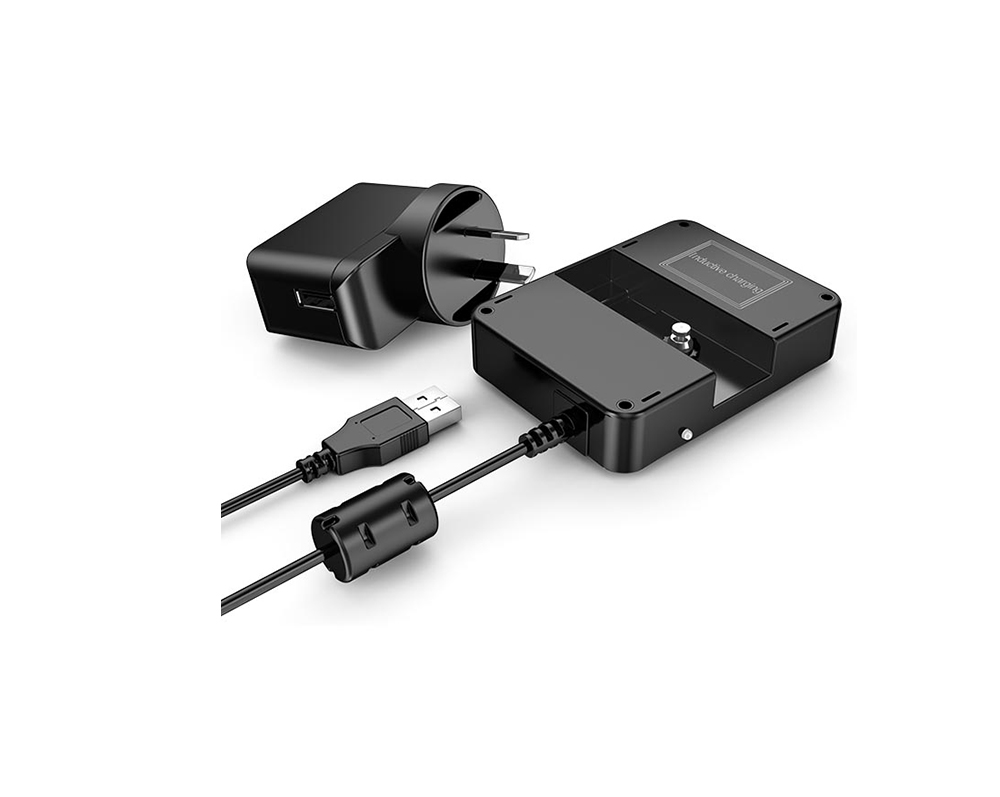

● Input voltage for AC adapter is AC100-240V@50/60HZ;

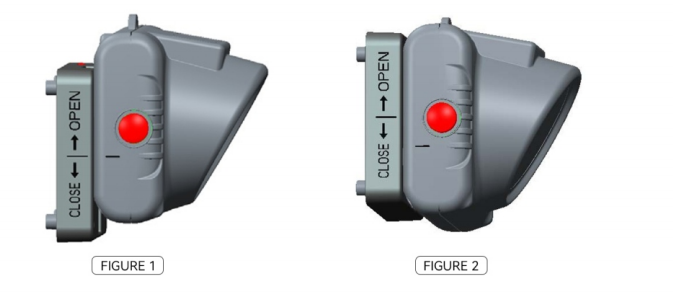

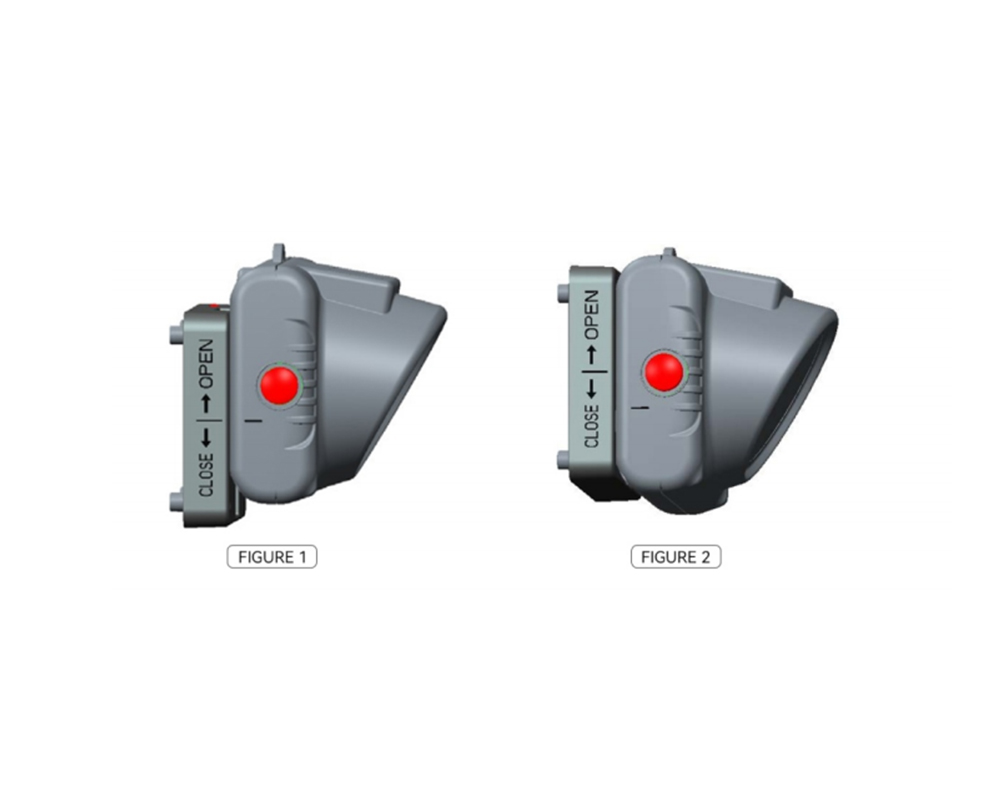

● Refer below "Figure 1 "to put the lamp on the charger,and align the line on lamp to the centre line on charger

● Slide the lamp as the "close " direction to lock the lamp with charger well ,refer "Figure 2"

● After full charged,pls slide the lamp as "open"direction to take down the lamp

20230603095417L2h3OG

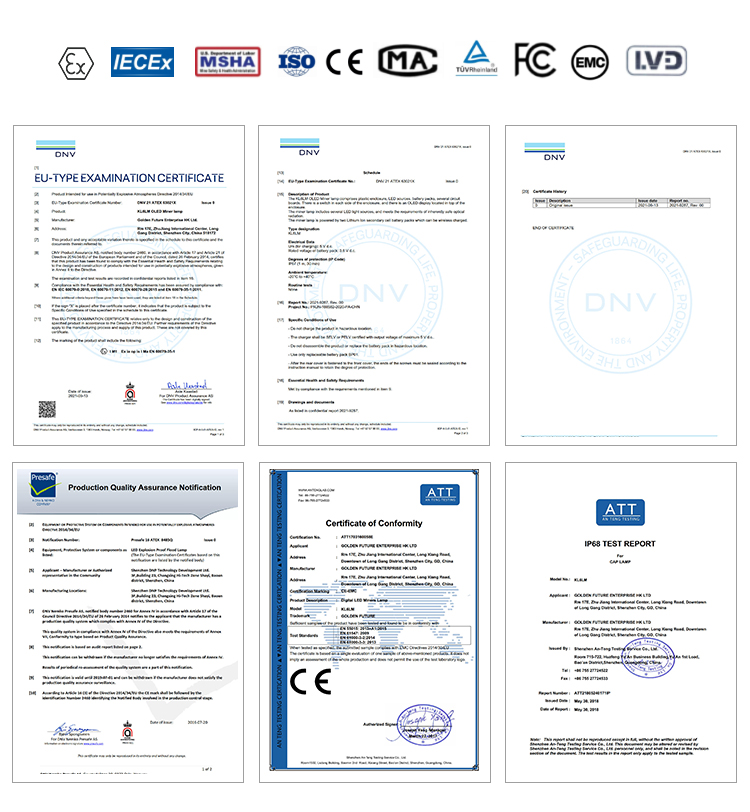

ATEX certificate show for KL6LM cordless mining light wireless inductive charging miner cap lamp

20220427143441GU8SzJ

Parameters

Technical Parameter of ATEX KL6LM cordless mining light wireless inductive charging miner cap lamp

ParametersValueUnit
Light sourceLED Power1W
Lighting degree15000Lux
Life time100000Hours
Li-ion batteryRated capability6600mAh
Rated voltage3.7V
Charging time45147hour
Life time1000circle
Wireless Chargerinput voltageDC5V
output voltageDC5V
output current1A
Lighting timeHight bright13H
Half bright26
Backup bright100
Lighting distance200m
Working temperature-20~45°C°C
Dimension90*73*64mm
Weight (with battery)209g
IP ClassIP67
Ex-markI M1 Ex ia op is I Ma EN 60079-35-1


Application

Application of KL6LM cordless mining light wireless inductive charging miner cap lamp

20230605143051Cd9cMf
