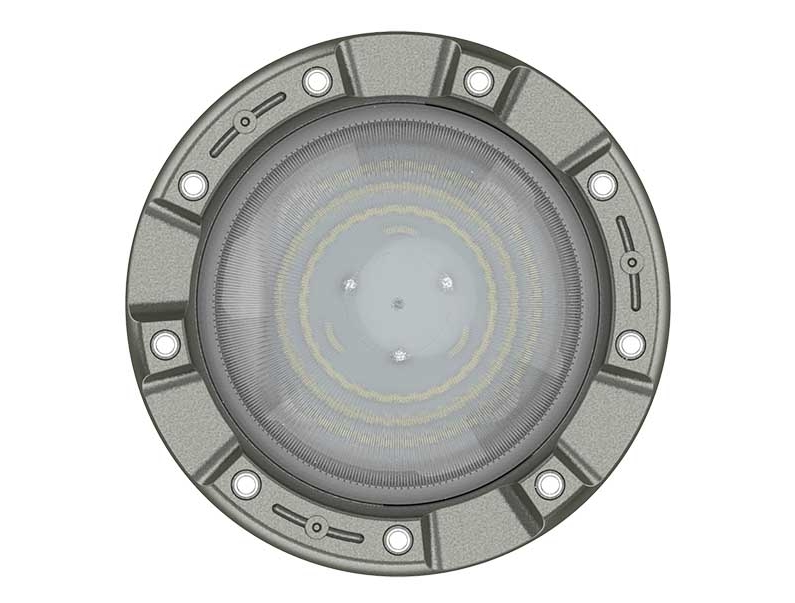

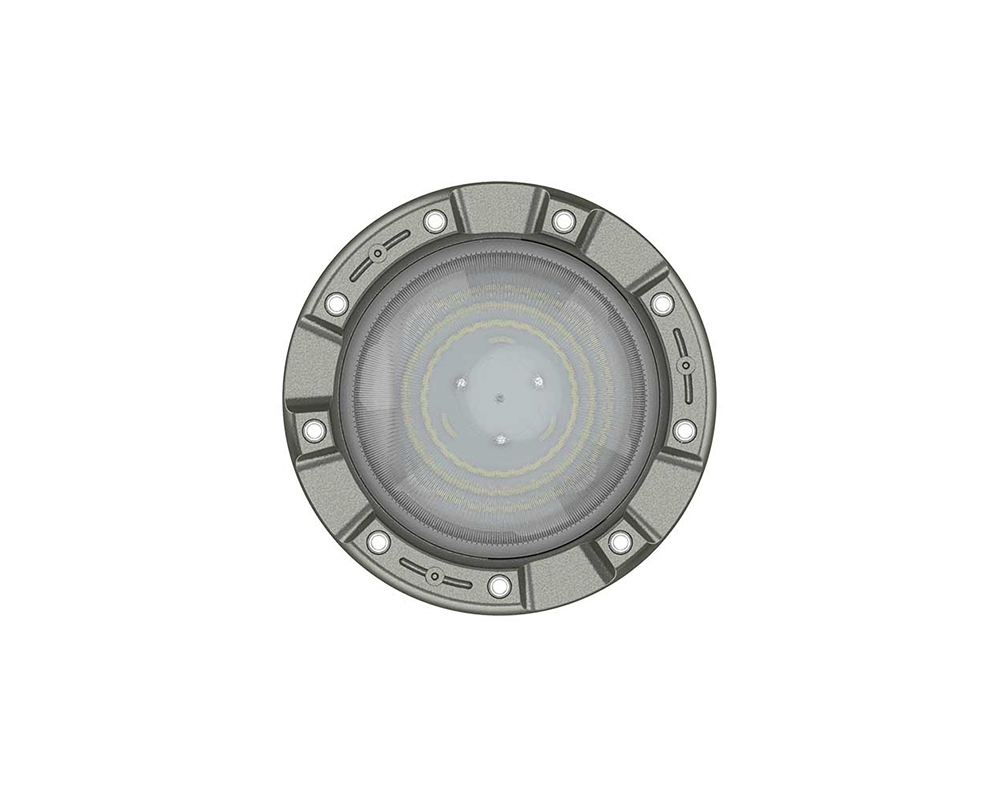

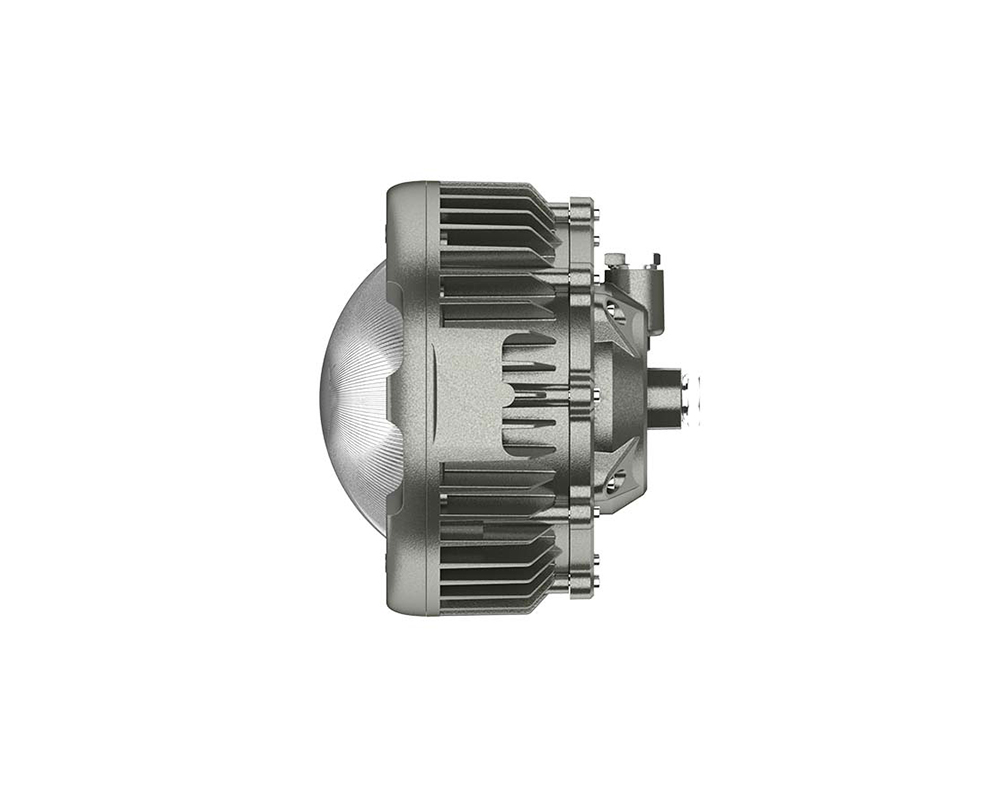

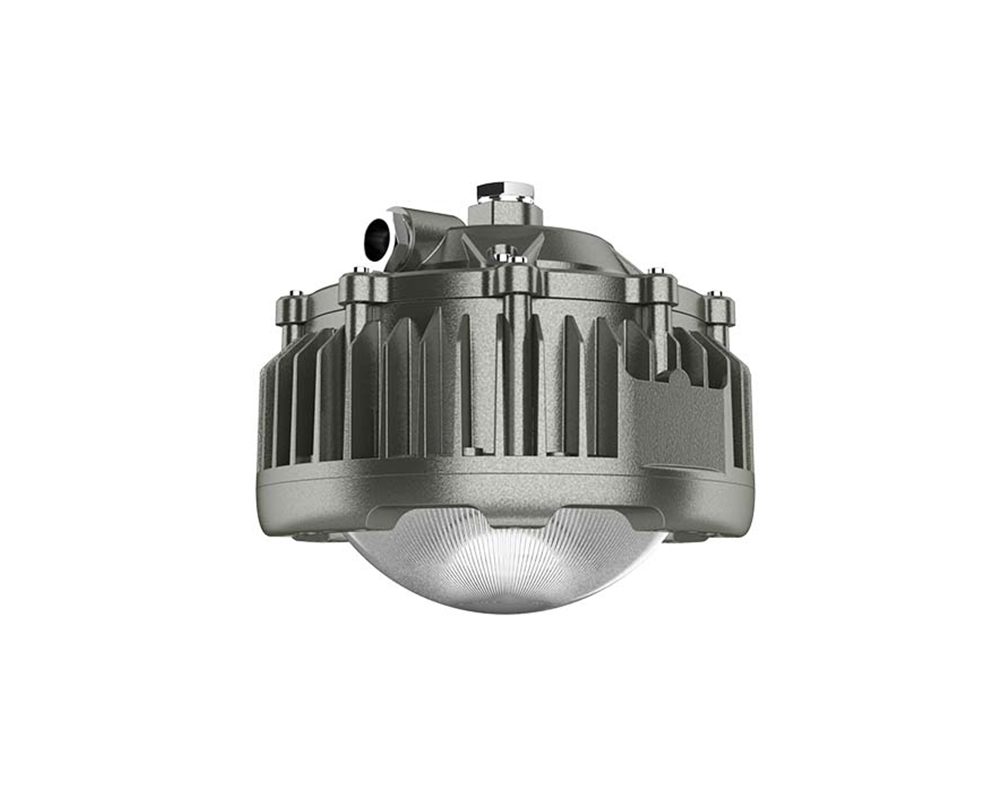

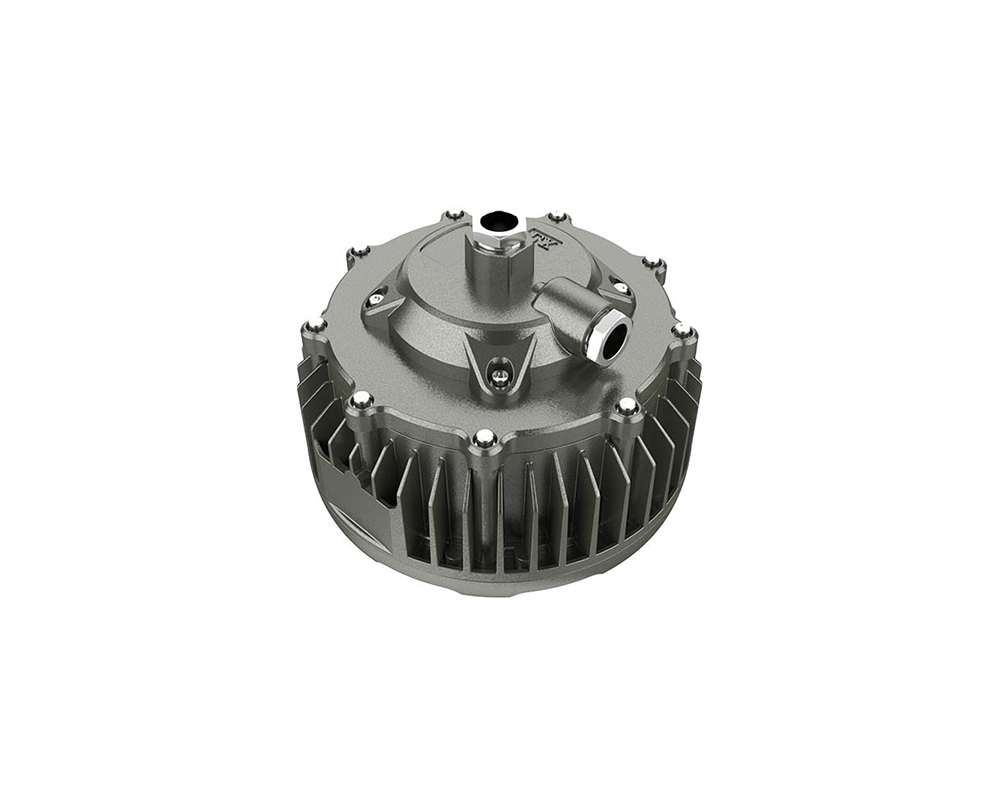

DL231 50w~90w led explosion proof light for hazardous area

Model Number: DL231

LED Light Source: CREE

Rated Voltage(V): AC110-270V

Lamp Power(W): 50~90W

CRI (Ra>): 70

Working Temperature(℃):-30°C ~ +50°C

Working Lifetime(Hour): 100000

IP Rating: IP66

Ex mark:Ex d IIC T6

light source: Cree led

beam angle: 120

Product Details

DL231 50w~90w led explosion proof light for hazardous area

This product has good explosion-proof function, suitable for IIA, IIB, IIC explosive gas environment and various inflammable and explosive places, mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and each Efficient lighting in factories, stations, large facilities, venues and other places

Product Features:

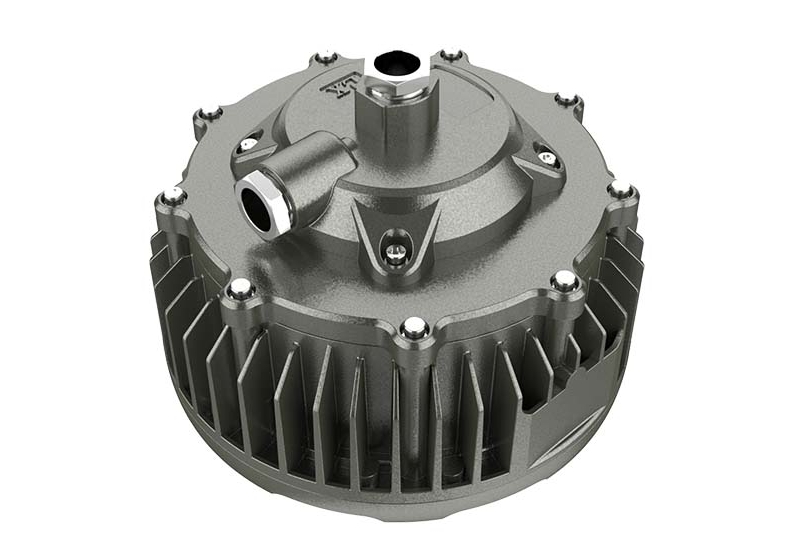

1. The lamp fixture is made of aluminum alloy die-casting, the surface is treated with high pressure electrostatic spray, and the exposed fasteners are made of

high-preservative stainless steel. Exposed fasteners are made of stainless steel with high corrosion resistance and excellent anti-corrosion performance.

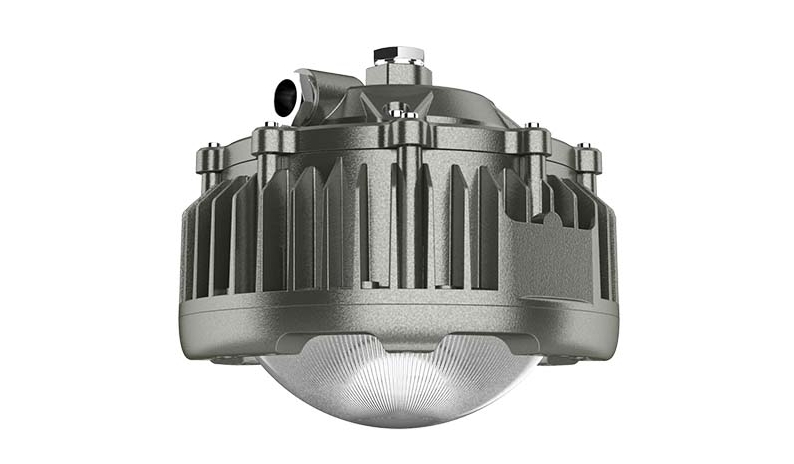

2. Adopting high-strength transparent cover, high light transmission and impact resistance.Unique anti-glare design with optical reflector for high reflection efficiency.

3. The explosion-proof structure is designed according to the national explosion-proof standard GB3836. It has reliable explosion-proof performance, long life, special constant current power supply, low power consumption and constant output power. It adopts high temperature resistant and aging resistant silicone sealing ring with high protection level.

4. Adopting international brand light source Corey chip, unidirectional illumination can effectively ensure high light utilization, high light efficiency, high index.The lamp has open circuit, short circuit and overheat protection function to ensure reliable and continuous operation of the light source, wide voltage input, constant luminous flux output, and the lamp can be started instantly.

5. Unique heat dissipation structure design, excellent heat dissipation performance could ensure long life of the lamps.

6. Top and side outlets are available for quick and easy installation.

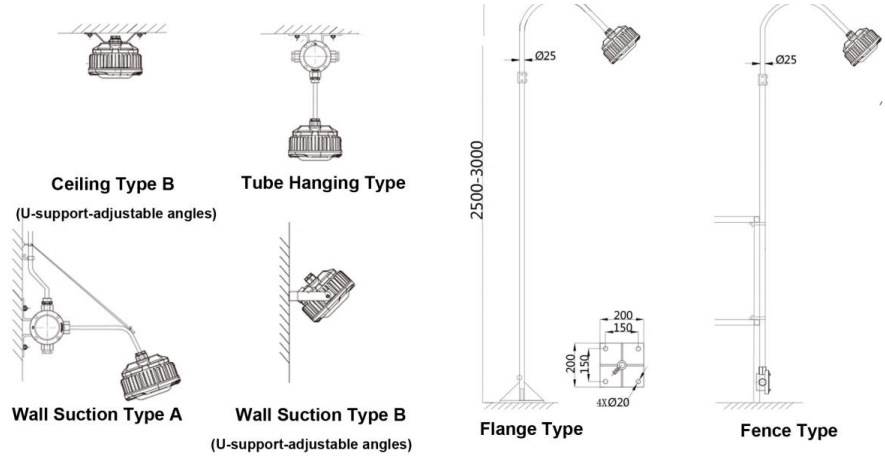

Installation Instruction:

12

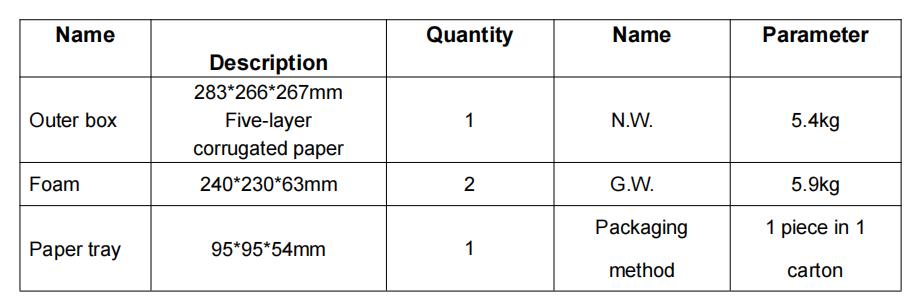

Dimension and Package :


Parameters

ITEMDescription

UNIT

Rated VoltageAC110-270V
Power50,60,70,80,90W
Protection LevelIP66
Lighting Angle120°
Anti-corrosion gradeWF2
Explosion proof gradeEx d IIC T6
Light efficiency122.4Lm/W
Frequency50/60Hz
Power Factor>0.95PF
Operating Temperature-30~50
Storage Temperature-30~50
Correlate Color Temperature3000-6500K
Color Rendering Index≥70RA
LED'S Operating Life100000Hours
Start-up time≤0.2S
Executive standardGB3836.1 GB3836.2
SizeΦ230*211mm
Emergency Time120Min
