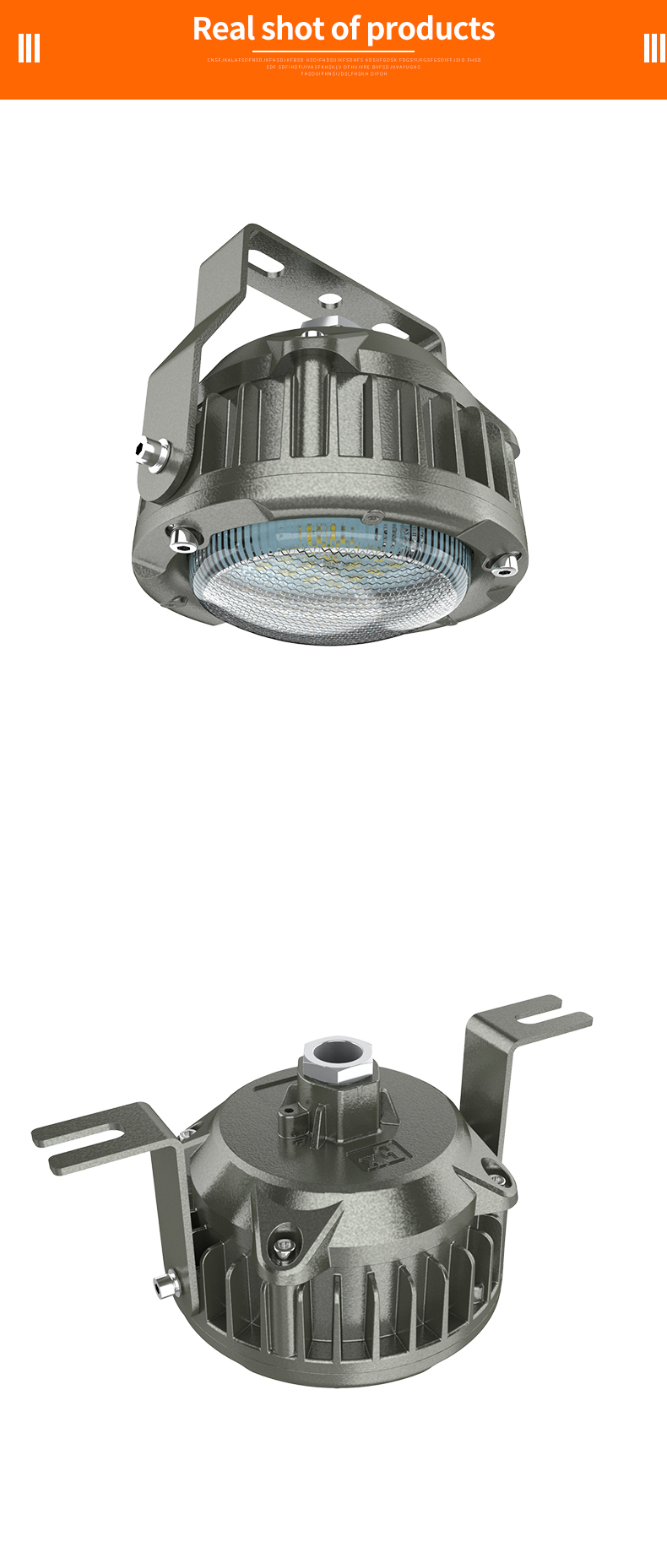

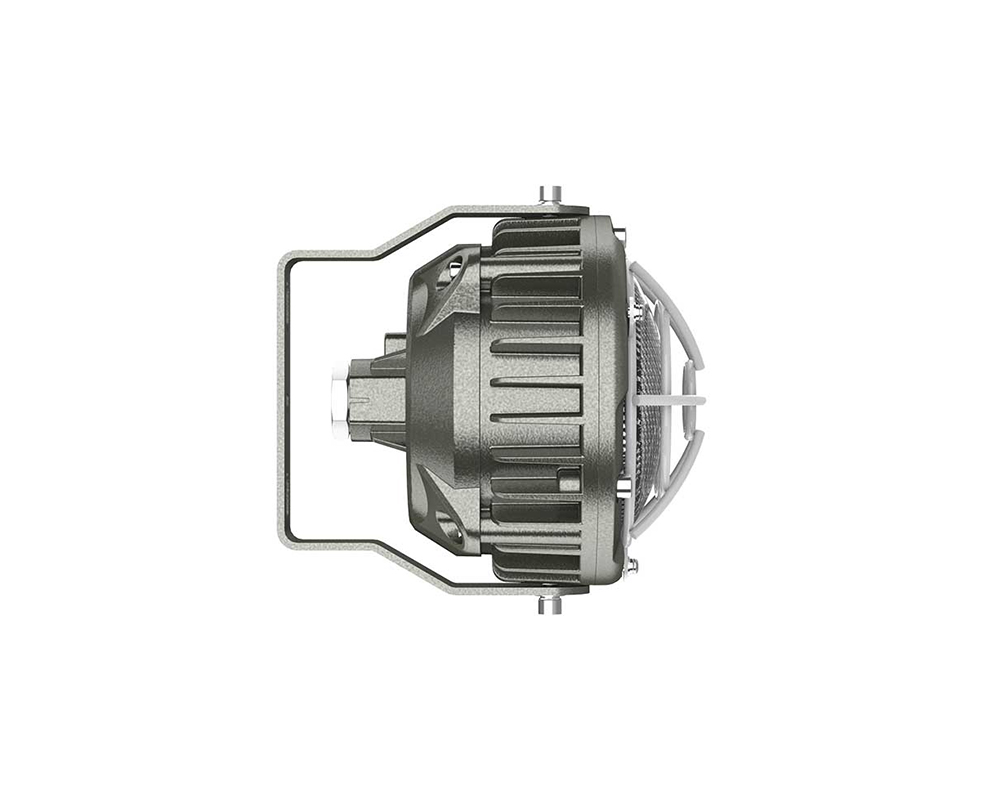

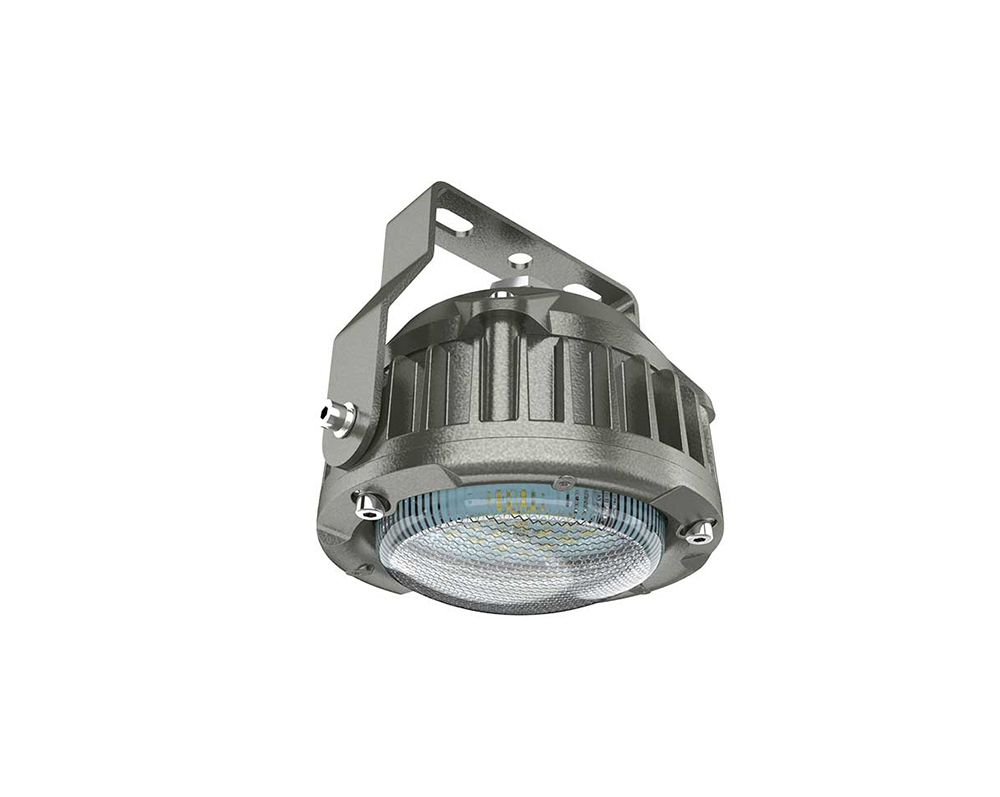

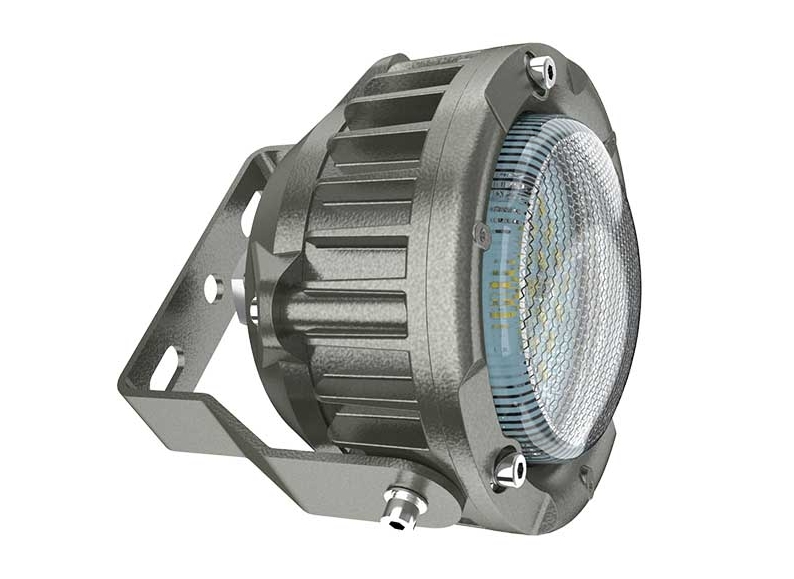

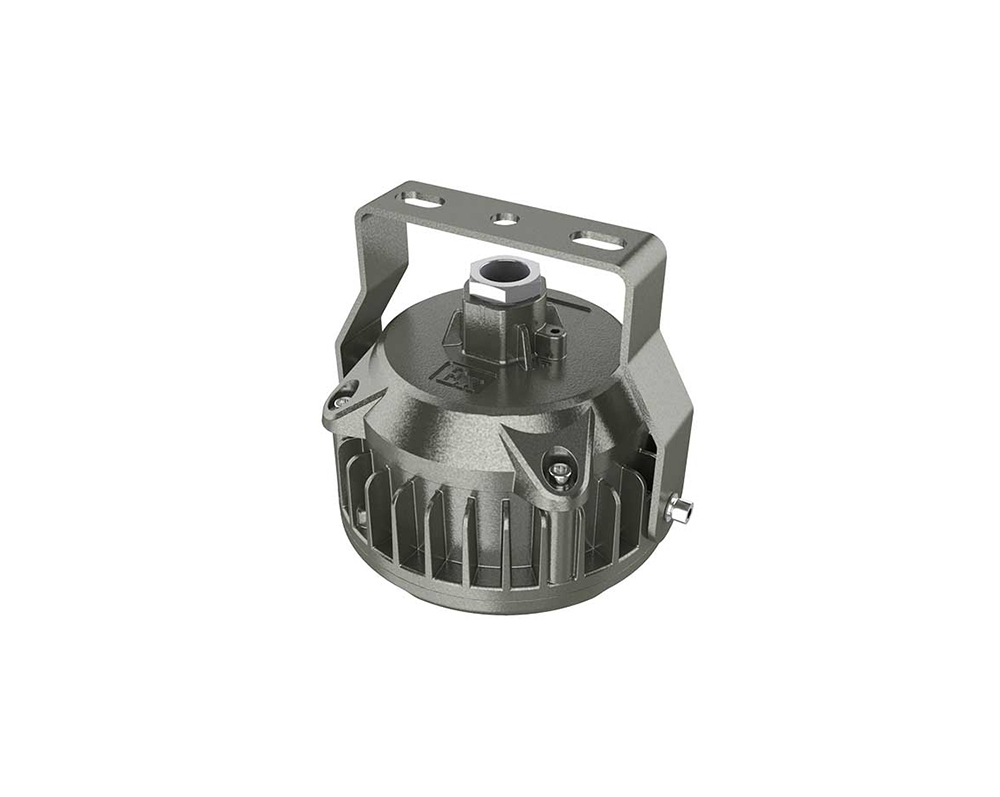

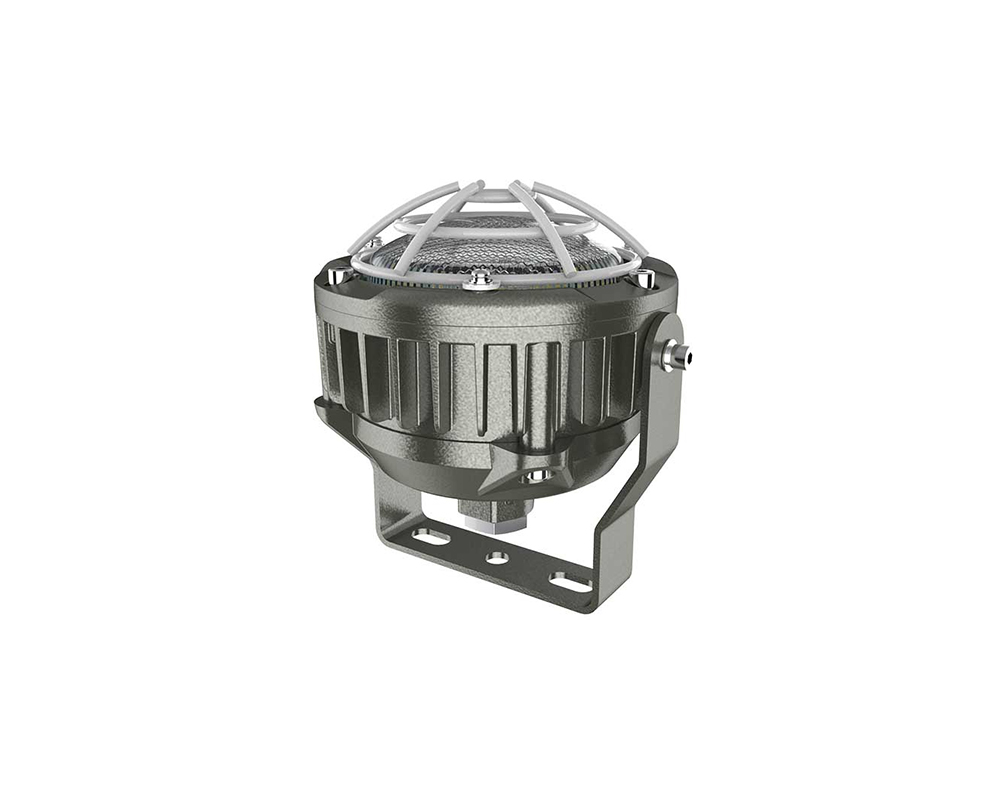

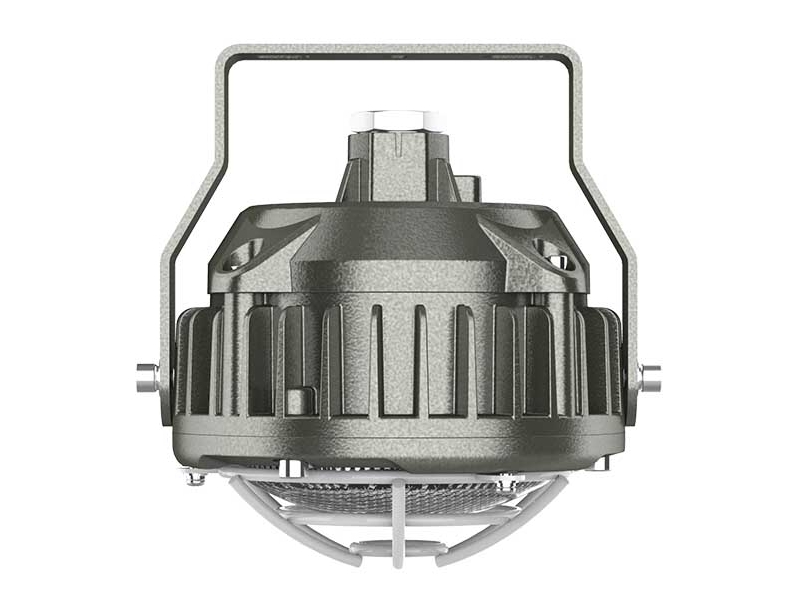

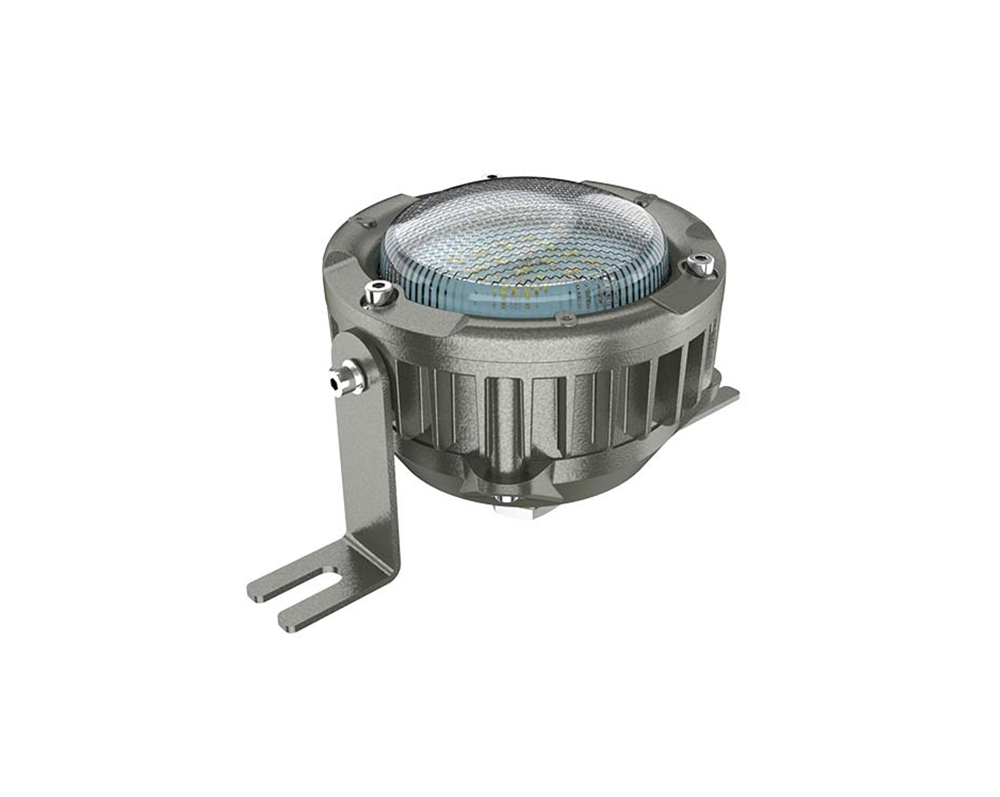

DL230 LED Portable Explosion Proof Light for Hazardous Area Lighting

Model No:DL230

Input voltage:AC220-240v

Led source: Cree led, 120lm/w

PF>0.95 CRI:Ra>70

Ex mark: Ex d IIC T6

Waterproof grade:IP66; Corrosion proof:WF2

Beam angle:40/60/90/120 degree

product size:φ145x130mm

Net weight:1.4kg

Carton Size:344*344*395

Product Details

DL230 LED Portable Fluorecent Explosion Proof Light for Hazardous Area Lighting

This product has good explosion-proof function, suitable for various inflammable and explosive places, mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and each Efficient lighting in factories,stations, large facilities, venus and other places.

Product Features :

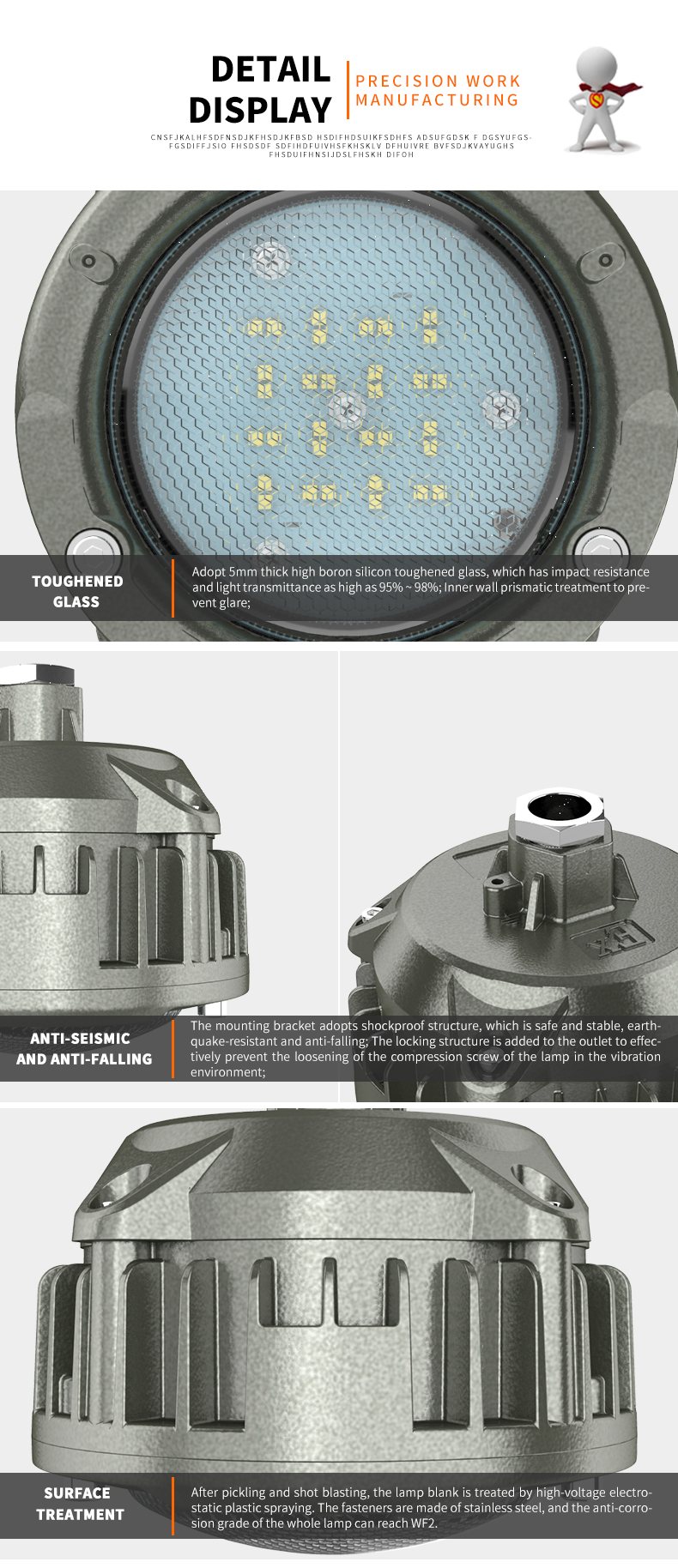

1 . The lamp body is made of aluminium alloy by die casting. The surface of the lamp is sprayed with high voltage electrostatic. The exposed fastener is stainless steel with high anticorrosive performance. The whole lamp has excellent anticorrosive performance.

2 . High-strength transparent cover, high light transmission, impact resistance, unique anti-glare design, with optical reflector cup, high reflection efficiency.

3 . The explosion-proof structure designed in accordance with the national explosion-proof standard GB3836 has reliable explosion-proof performance, long life, special constant current power supply, low power consumption, constant output power meter, high temperature and aging resistant silica gel sealing ring, and high protection grade.

4 . Adopt the international first-line brand light source chip, unidirectional luminescence, no side light, high light utilization rate, high light efficiency, high display finger, with open circuit, short circuit, overheat protection function, ensure the reliable and continuous operation of light source, wide voltage input, constant light flux output, instantaneous start-up.

5 . Unique heat dissipation structure design, excellent and reliable heat dissipation performance, ensure the long life and reliable use of lamps.

6 . Cable wiring, fast and convenient.


Parameters

ITEMDescriptionUNIT
Rated VoltageAC220V
Power10-30W
Protection LevelIP66
Lighting Angle45/ 60/90/120°
LED Qty30pcs
Explosion proof gradeEx d e mb IIC T6
Light efficiency120Lm/W
Frequency50/60Hz
Power Factor>0.95PF
Operating Temperature-30~50
Storage Temperature-30~50
Correlate Color Temperature3000-6500K
Color Rendering Index≥70RA
LED'S Operating Life100000Hours
Start-up time≤0.2S
Executive standardGB3836.1 GB3836.2
SizeΦ145×130mm
Weight1.4kg

Application

Applicable Place :

1. Aplicable to areas 1 and 2 in exprosive gas environment ;

2. Aplicable to explosive gas environment of Class IIA,IIB,IIC;

3. It is suitable for places in Zone 21 and Zone 22 combustible dust environment ;

4. Applicable to temperature groups of T1-T6(T5);

5. Applicable to energy-saving nenovation projects and places where maintenance and replacement are difficult .
