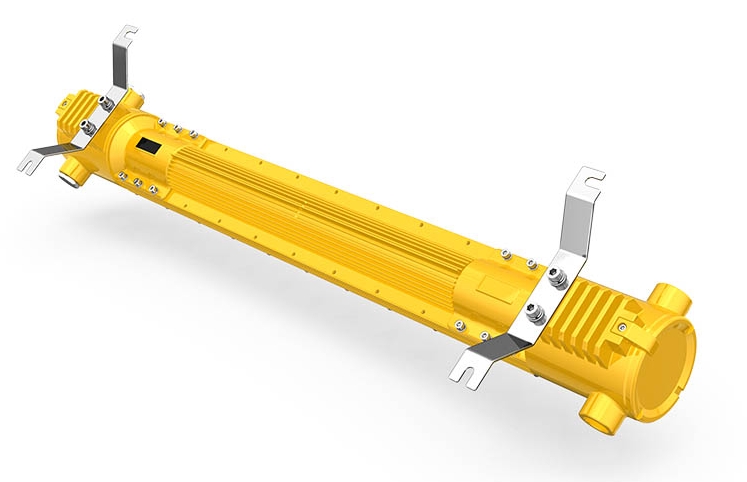

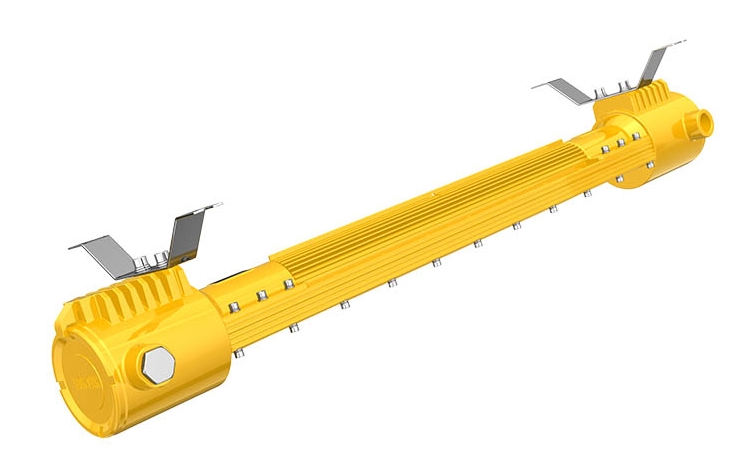

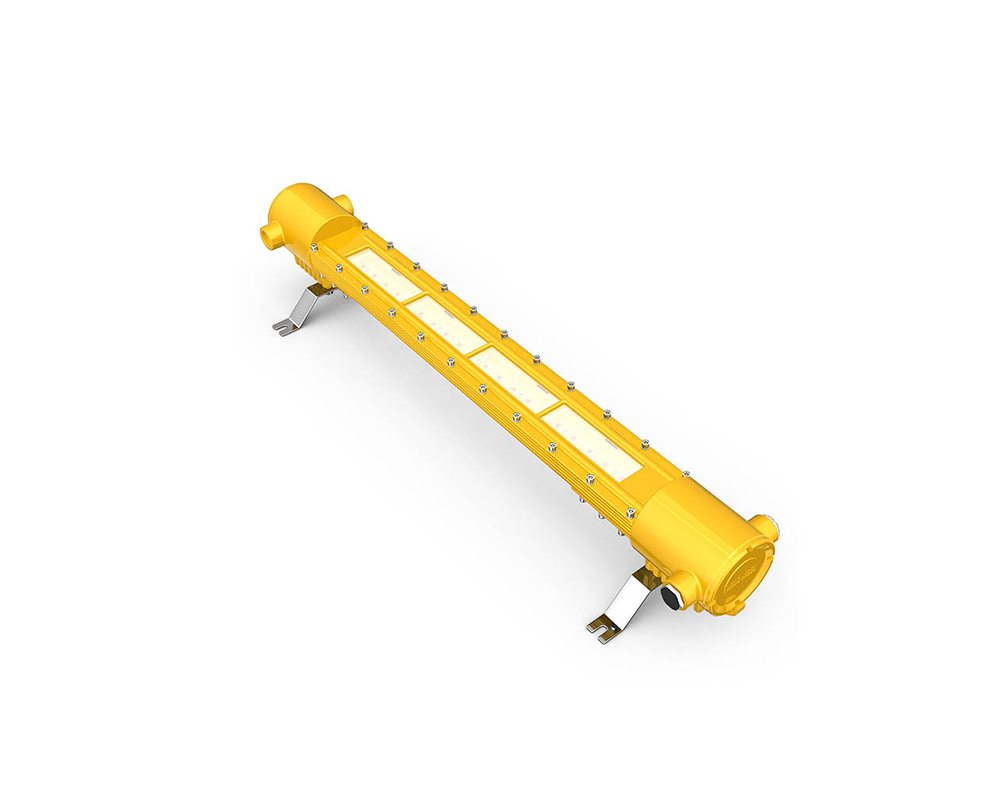

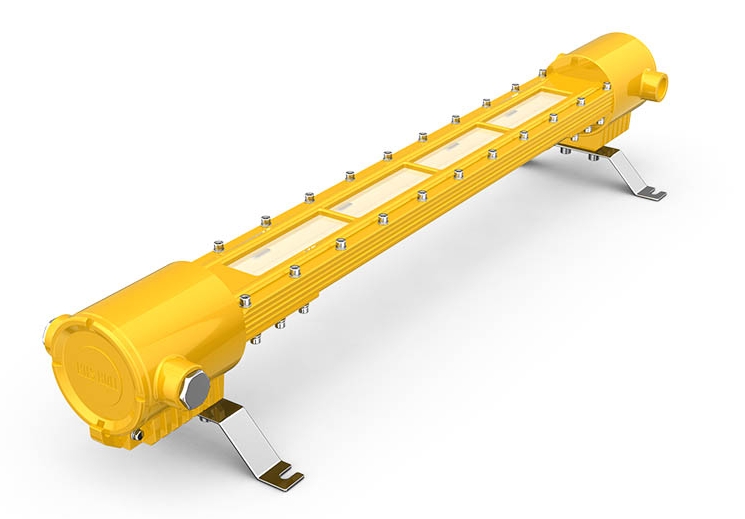

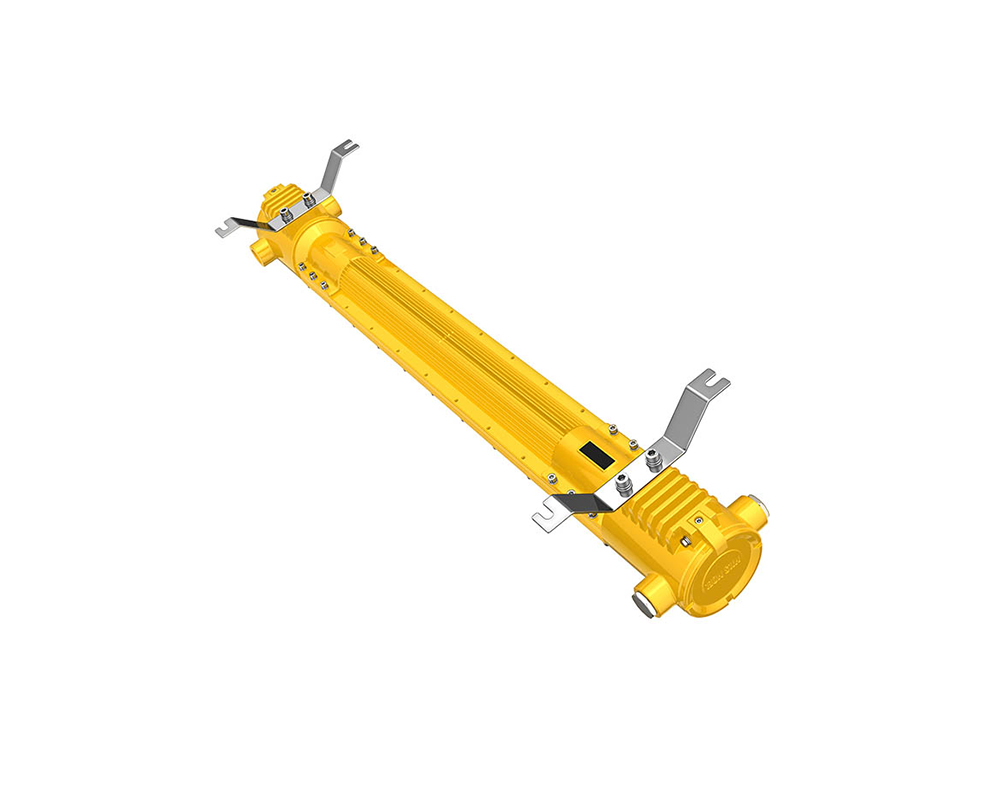

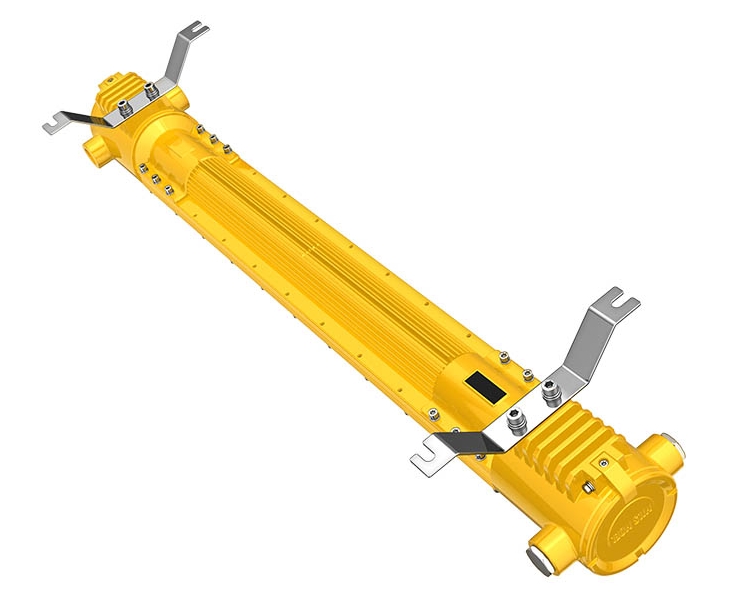

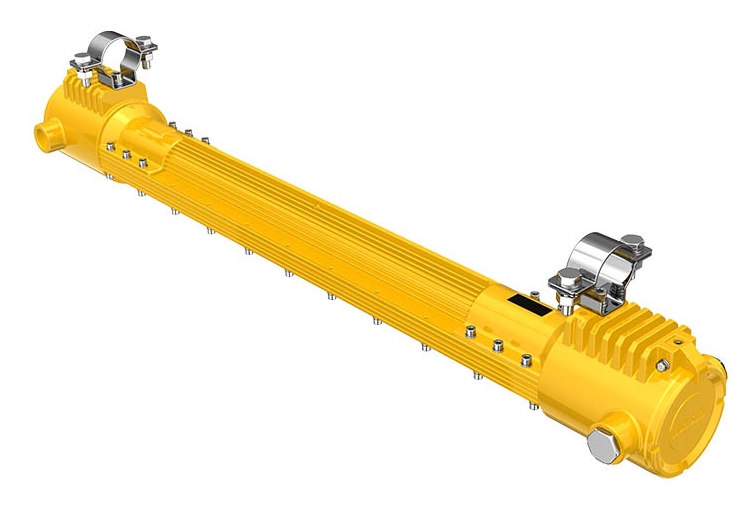

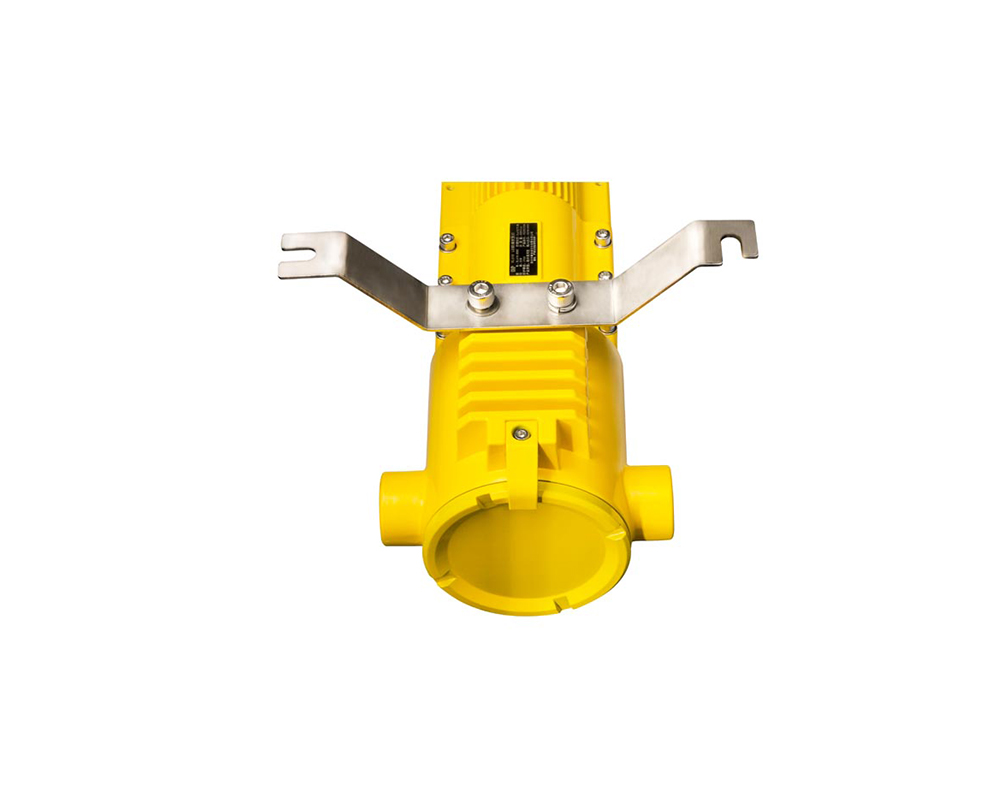

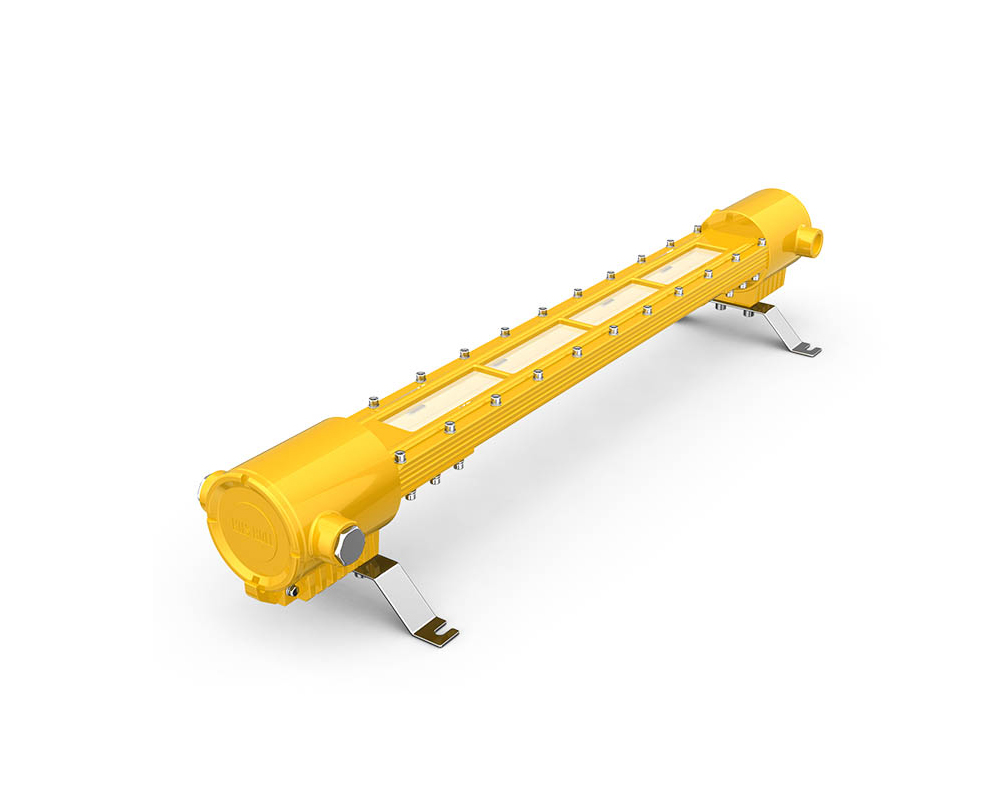

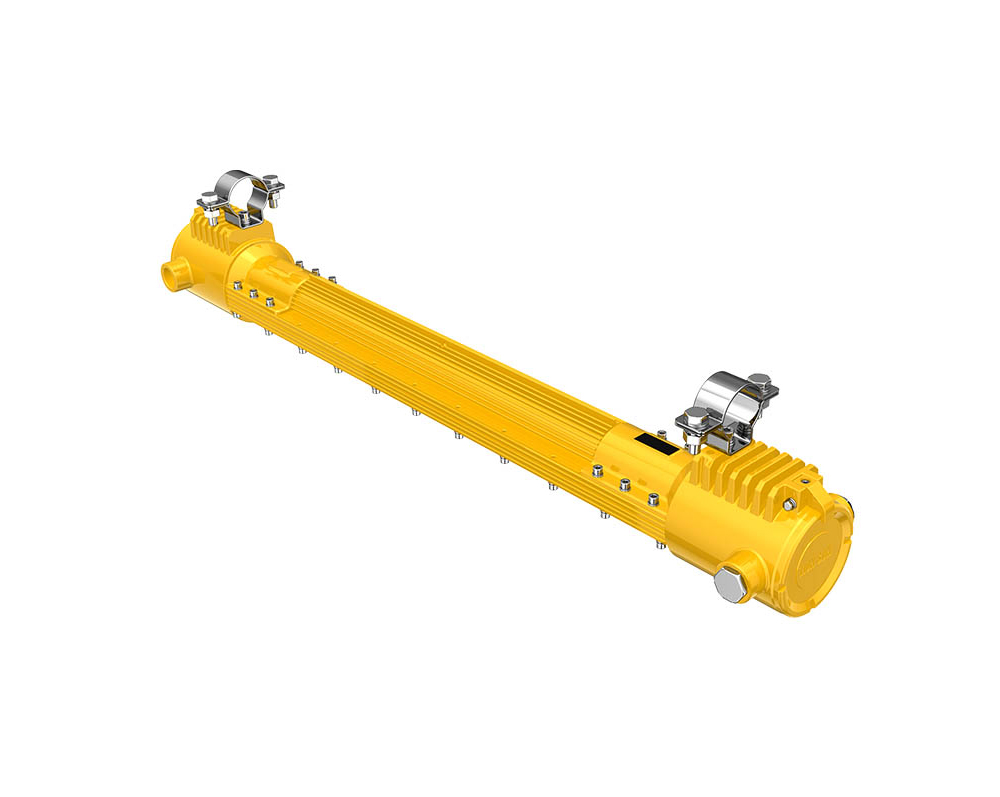

DL618 40w with maintained type emergency function led explosion proof lights/flame proof lamp/explosion proof lighting fixtures

DL618 40w with maintained type emergency function led explosion proof lights/flame proof lamp/explosion proof lighting fixtures

Model Number: DL618
LED Light Source: CREE
Input Voltage(V): AC110-240V
Lamp Power(W): 40
Lamp Luminous Flux(lm): 5400
CRI (Ra>): 80
Working Temperature(℃):-20°C ~ +50°C
Working Lifetime(Hour): 50000
IP Rating: IP66
Ex mark: II 2G Ex db IIB + H2 T5 Gb / II 2D Ex tb IIIC T100°C Db
light source: Cree xm-L led
beam angle: 160
Housing: aluminium alloy
Certificatiion: CE,ROHS

DL618 40w with maintained type emergency function led explosion proof lights/flame proof lamp/explosion proof lighting fixtures

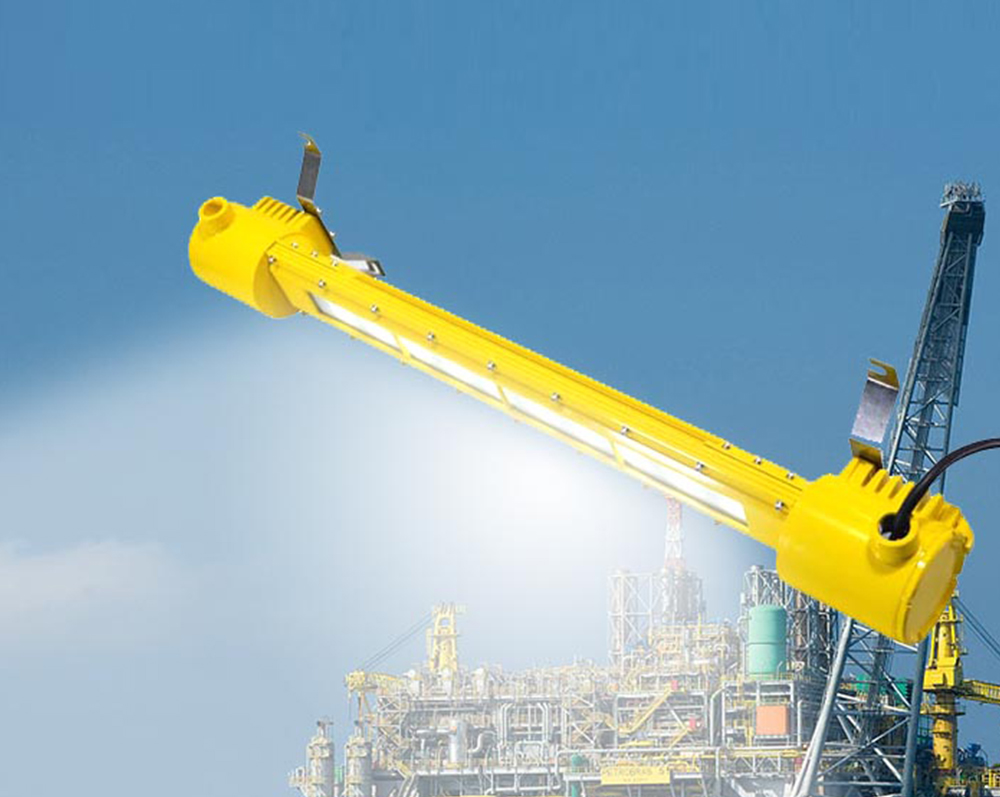

Application of 40w with maintained type emergency function led explosion proof lights:



1. chemical plant,oil store,gas station,drilling platform.

2. restricted district,heavy industry machining equipment area,offshore area.

3. refinery,dangerous seacoast, flammable and explosion zone I&II.

Technical parameter

Items

Unit Value

Light

Source

LED

CREE XT-E

Luminous Flux

5400 lumens

Color Temperature

5700-6000K

Color Rendering Index

Ra>80

power

40 watt

Input Voltage

AC 110-240V

Housing Material

Die cast aluminum housing with tempered glass

Dimension

ø117X151 X910mm

Weight

8 kg

Working Temperature

-20°C ~ +50°C

Beam angle

160°

Corrosion protection Classification

WF2

IP Classification

IP66

EX Mark


Exd II 2G Ex db IIB + H2 T5 Gb / II 2D Ex tb IIIC   T100°C  Db

Total harmonic current

<15%

Factor

>0.95

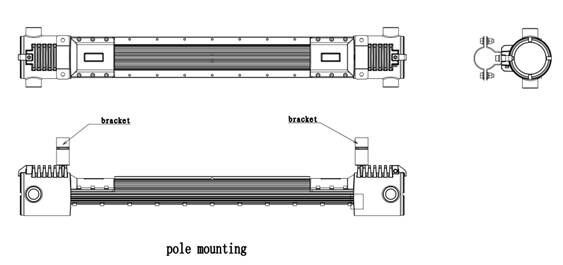

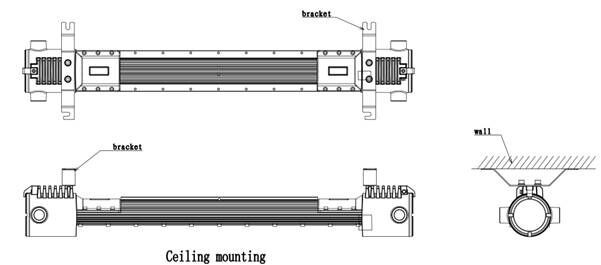

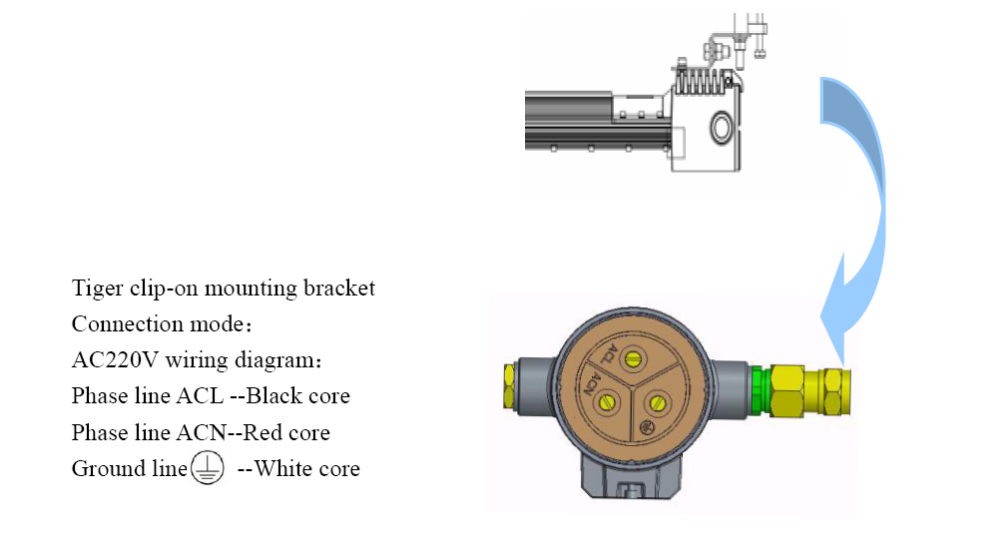

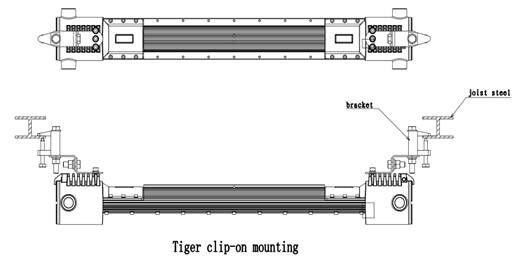

Installation Instruction:

 40w led explosion proof lamp/gas station light/hazardous area lighting led explosion proof lampDL618A安装3 40w led explosion proof lamp/gas station light/hazardous area lighting

Please access the cable with power, pay attention to lamps to safety ground , and operate the light in right way.

Dimension and Package (unit: mm):

1) DL618 dimension: 910*151*117(figure 1)

2) Package size: 1030*270*260 (figure 2)

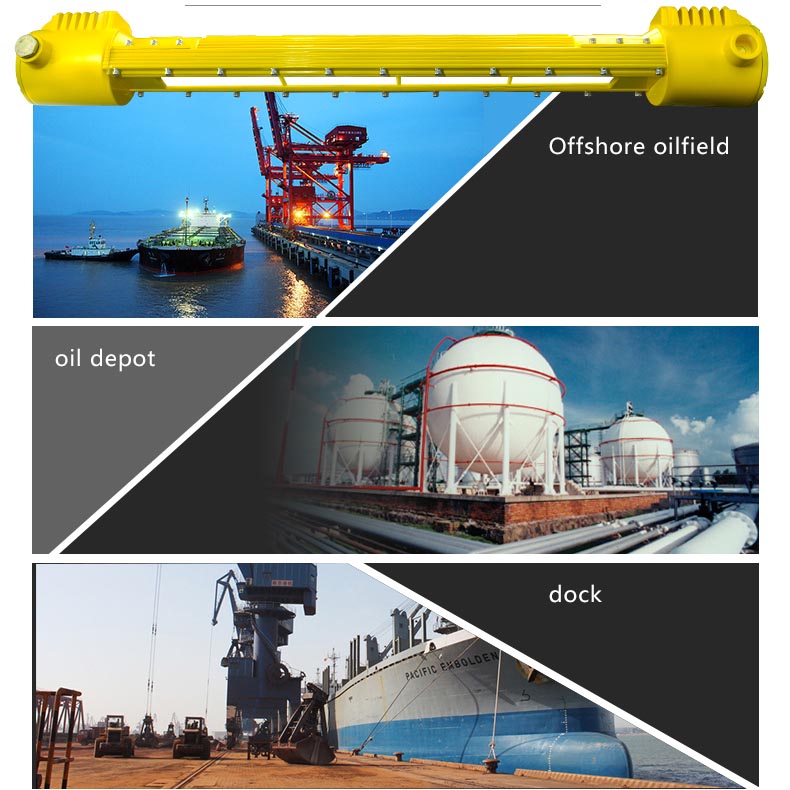

Application of 40w led explosion proof lamp/gas station light/hazardous area lighting :



 40w led explosion proof lamp/gas station light/hazardous area lighting
