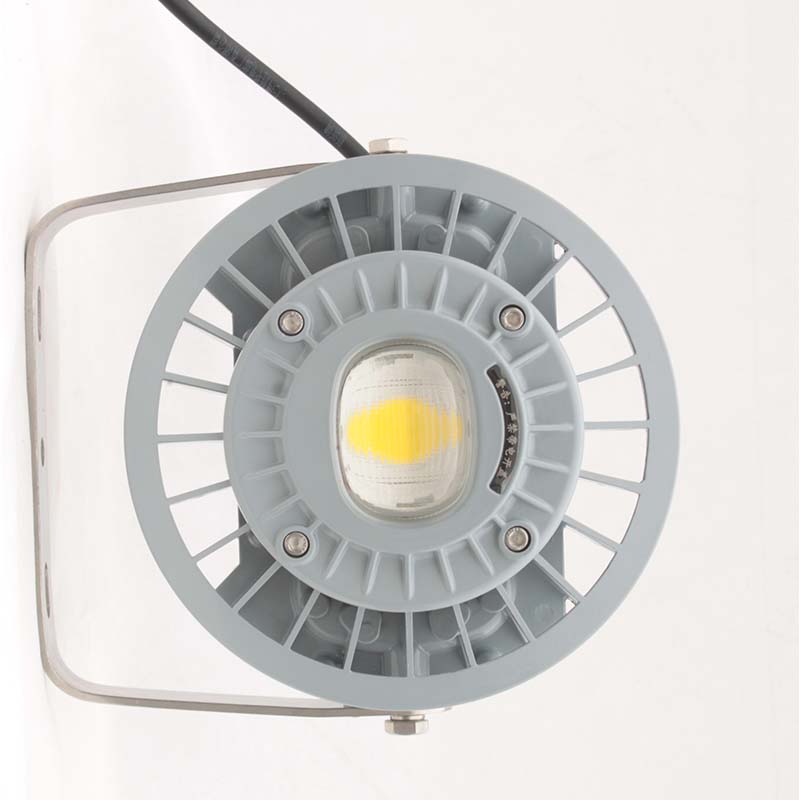

DL9306 ATEX LED explosion proof  light for hazardous area lighting

DL9306 ATEX LED explosion proof light for hazardous area lighting

Model Number: DL9306
Light Source: led
Rated Voltage(V): AC90-264VAC / 18~43VDC/ 18~55VDC
CRI (Ra): 70
Working Lifetime(Hour): 50000
IP Rating: IP66
Ex mark:Ex db e IIC T6/T5/T4 Gb, Ex tb IIIC T80℃/ T95℃ / T130℃ Db

DL9306 ATEX LED explosion proof light for hazardous area lighting

DL9306 ATEX led explosion proof light t can be widely used in oilfield, chemical industry, offshore drilling platform, steel industry, petroleum etc.Gas explosive environment: Group IIA,IIB,IIC.Zone 1,zone 2;zone 21,zone 22.

Product Parameters

ITEM

Description

UNIT

Input Voltage

AC90-264VAC

V

                                     18~43VDC/ 18~55VDC

Light source

LED



Rated Frequency

50/60

Hz

Life time

50000

Hours

Cable entry

M20×1.5, M25×1.5, NPT3/4", NPT1/2", G3/4"



Correlate Color Temperature

5000(3000/4000 optional)

K

Color Rendering Index

70 ( 80 optional )

RA

Ex Marking

               Ex de op is IIC T5 Gb, Ex op is tb IIIC T95℃ Db

Dimension

φ230×270

mm

Net Weight

4.2

kg







Product Features:



1 It is made using a special aluminum housing, all exposed fasteners and bracket adopt 304 stainless steel. Using high-tech anti-corrosion surface treatment technology, suitable for long-term highly corrosive environment of offshore oil platforms, oil drilling platform, chlor-alkali, vulcanization cyanide, etc.

2. A full range of high conductivity material accelerate convection cooling structure, effective guarantee long-term use in high temperature
environments.

3.Variety of light distribution, variety of installation types, an effective solution to beautify workshop and device platform.

4. The shell is made of high-tech surface coating technology, corrosion resistant, waterproof and dust proof, suitable for harsh environments.

5.Optoelectronic integrated technology, no dark spot, no ghosting, the  average light efficiency of whole lamp can reach to 120 lm/W, energysaving is 60% more than Metal Halide Lamp.

6. Taiwan Meanwell power supply or same quality power supply, power factor above 0.98, high reliability and long time service life

7.Independent wiring chamber, safe and easy installation and maintenance.

8. Quick replay light source without welding.

9. Intelligent control functions can be realized.( Dimming: 1-10VDC, PWM,  Carrier, DALI, etc.)

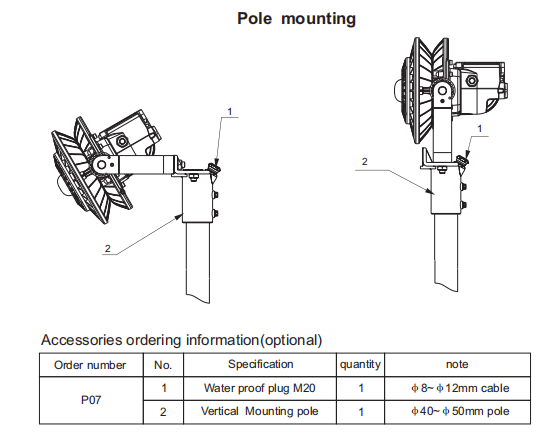

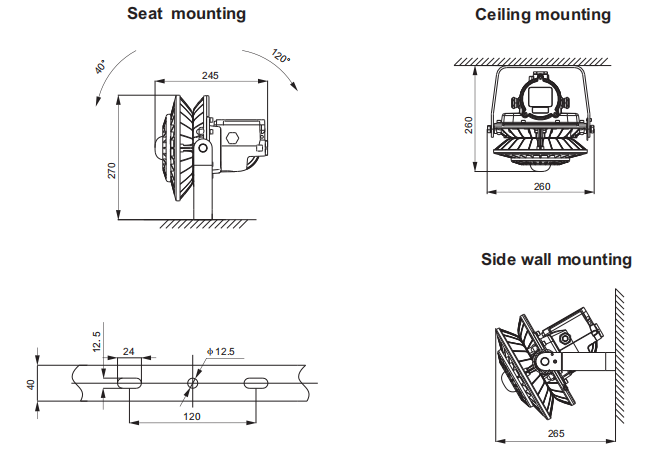

Install
