HBC120W 120w IP65 industrial workshop UFO high bay led lightings

HBC120W 120w IP65 industrial workshop UFO high bay led lightings

Model Number:HBC120W
Warranty(Years):3
Input Voltage(V):AC100-277V
Lamp Power(W):120
Lamp Luminous Flux(lm):13000
Lamp Luminous Efficiency(lm/w):100
CRI (Ra>):80
Color Temperature(CCT):Warm White
Working Temperature(℃):-20 - 45
Working Lifetime(Hour):50000
Lamp Body Material:Aluminum Alloy
IP Rating:IP65
Certification:CE, RoHS
Application:industrial worshop/supermarket
Beam angle:115 degree
LED Driver:MEANWELL
CRI:80
LED Type:Nichia SMD3030
Power Factor(PF>):0.95
CCT:DW/WW

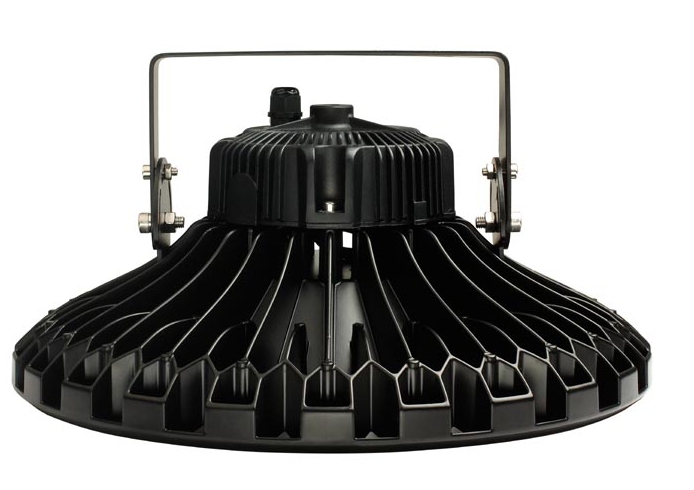

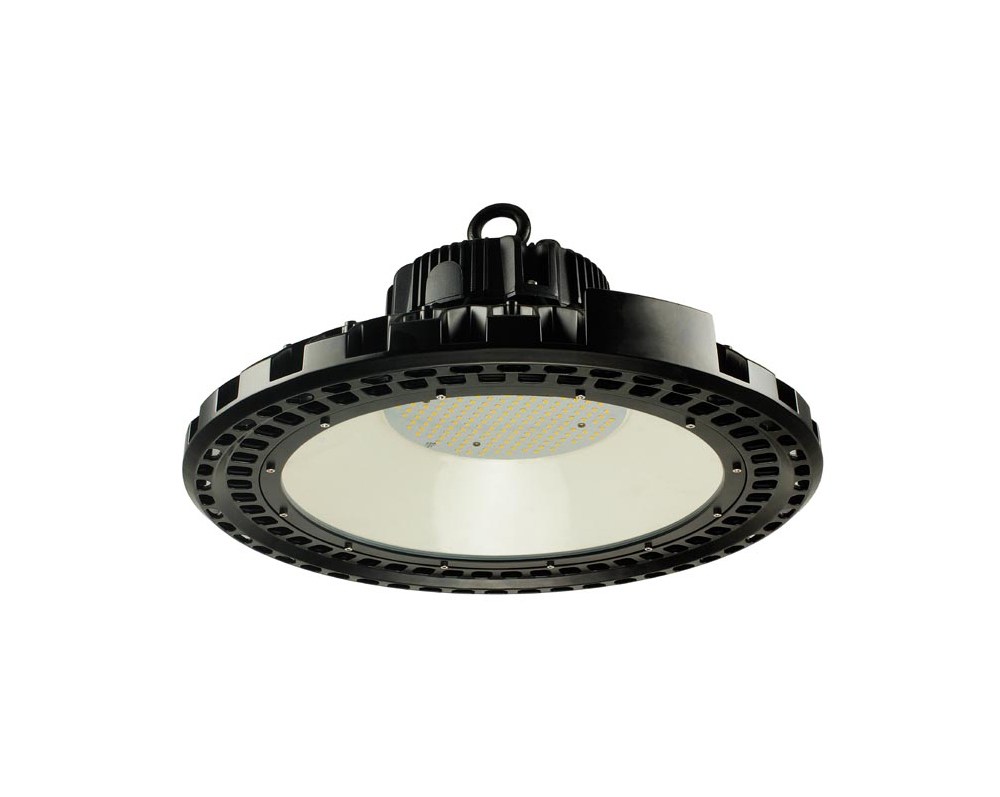

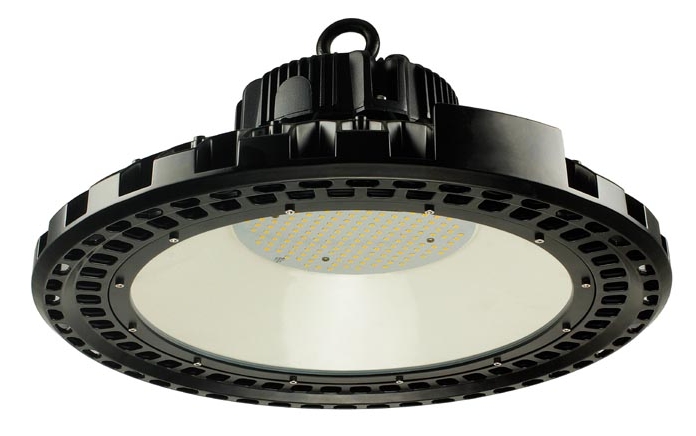

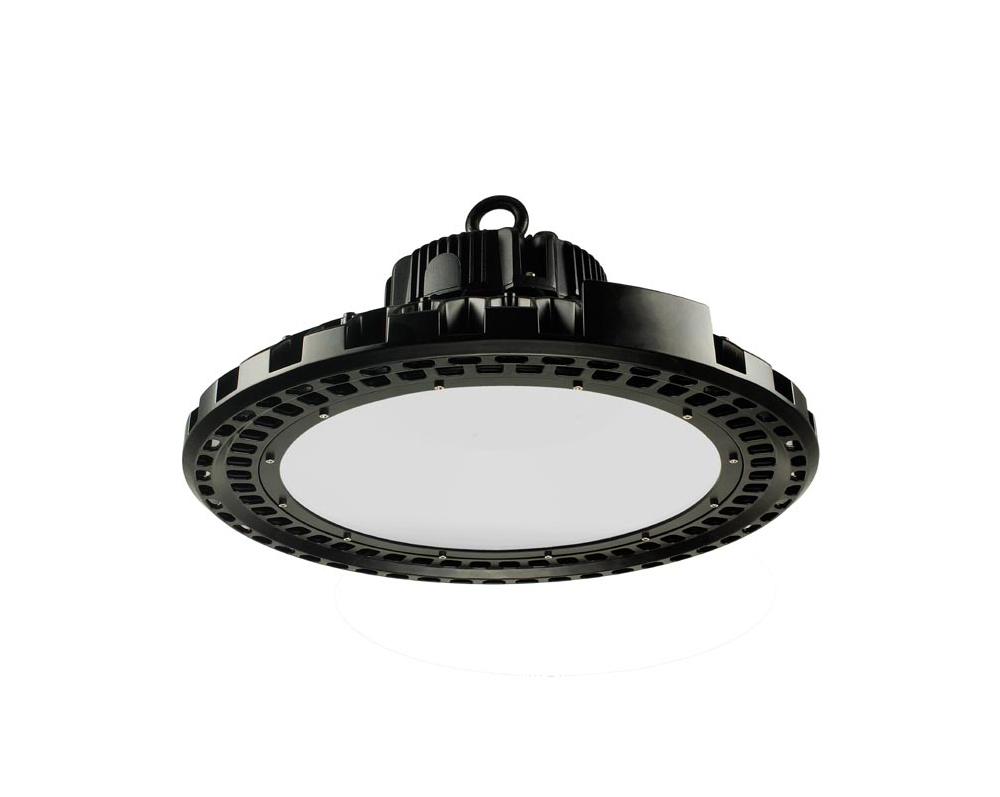

120w IP65 industrial workshop UFO high bay led lightings



Product Description

Advantage of 120w IP65 industrial workshop UFO high bay led lightings



1. Stable quality LEDs with low lumen decay,
2. With high CRI(≥80), similar to nature light,
3. Unique UFO shape, lighter and smaller,
4. Nichia as light source, LM80 standard,≥110lm/W,
5. Meanwell driver,
6. PF value over 0.95,
7. Easy installation and low maintenance,
8. Mercury- and leadfree, environment friendly.
9.5 years warranty.

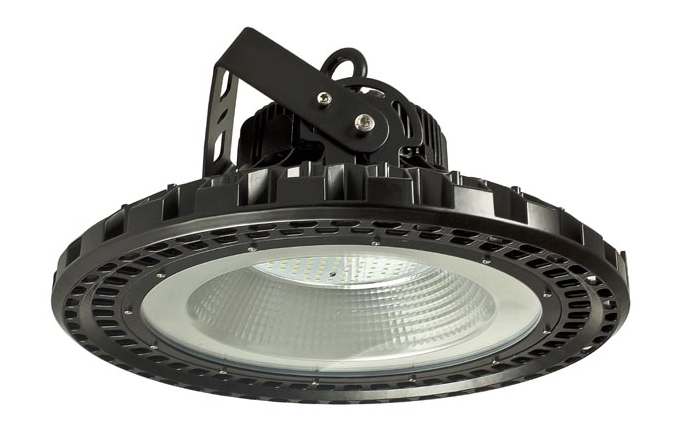

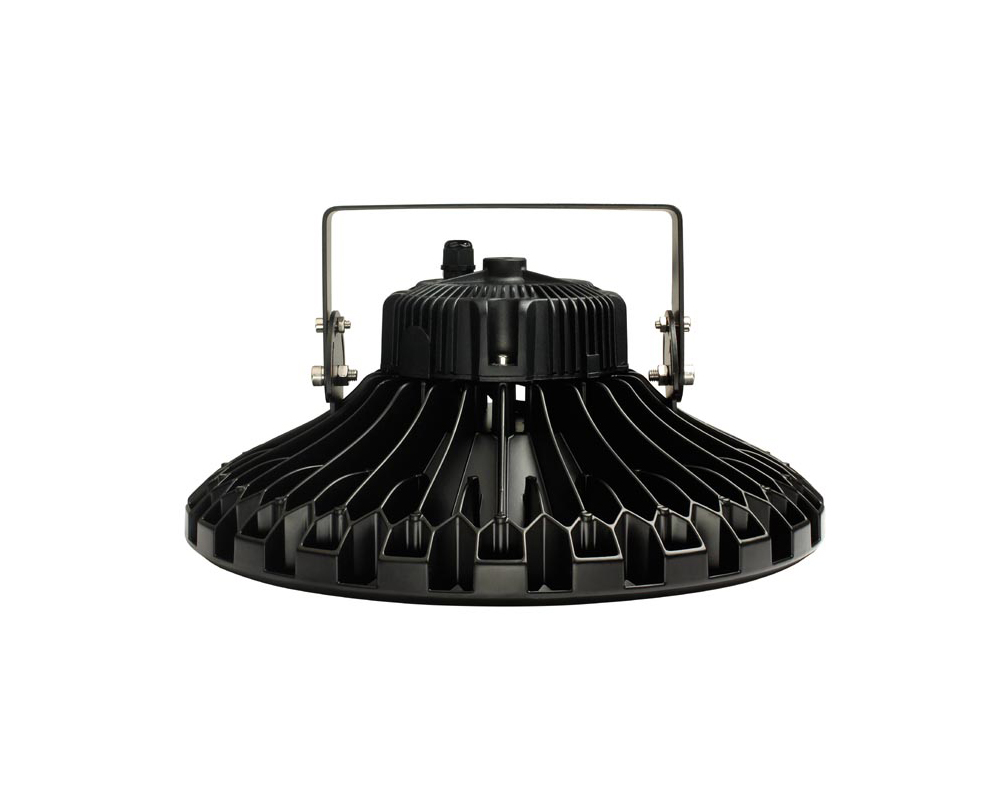

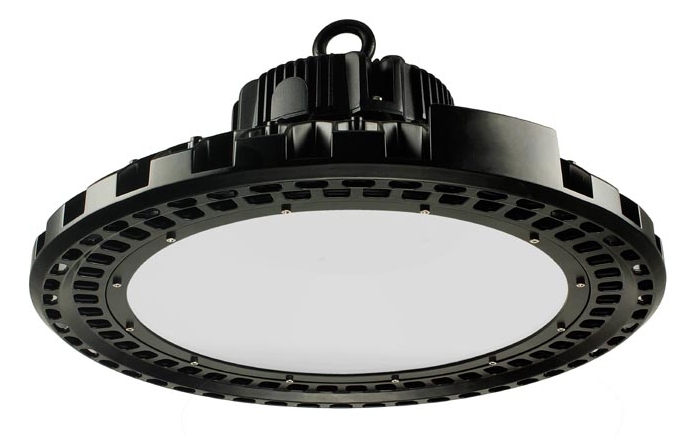

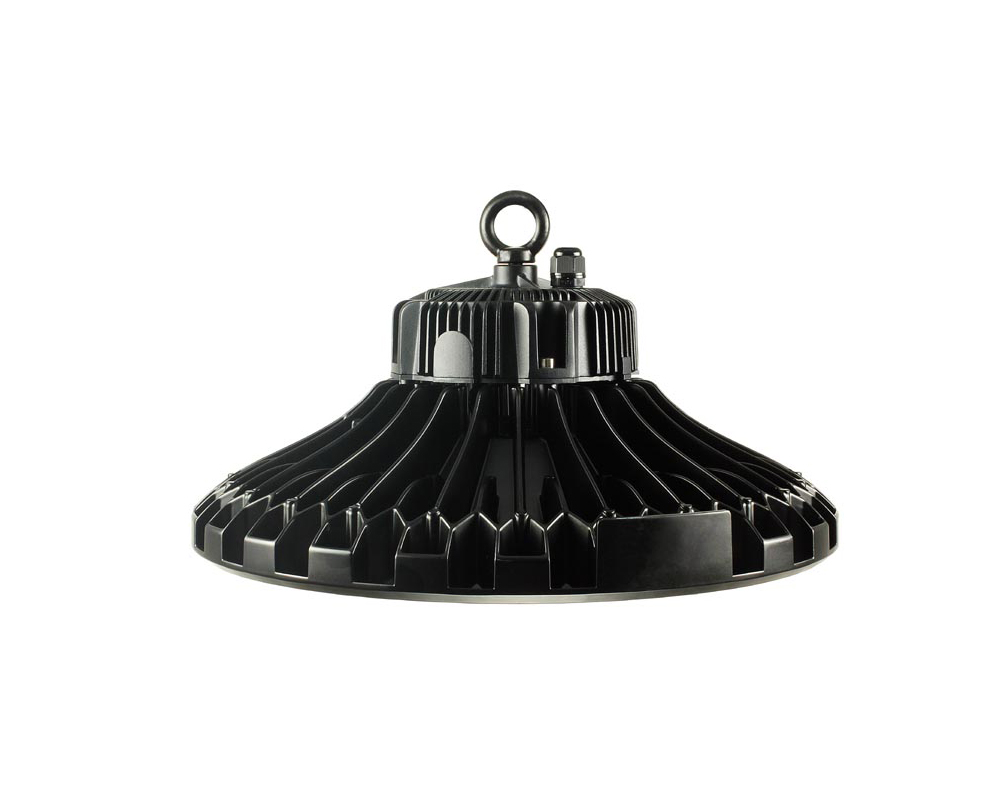

120w ufo high bay light120w ufo high bay light120w ufo high bay light120w ufo high bay light



Specifications of 120w IP65 industrial workshop UFO high bay led lightings



Model

LED Type

LED Q\'ty
(pcs)

Color

Voltage

Beam

Angle

Wattage

Lumen (lm)

CRI (Ra)

PF

IP factor

HBC120W

Nichia
SMD3030

154

DW

AC100-277V

115°

150W±10%

13200±15%

≥80

≥0.95

IP65

Nichia
SMD3030

154

WW

AC100-277V

115°

150W±10%

13000±15%

≥80

≥0.95

IP65

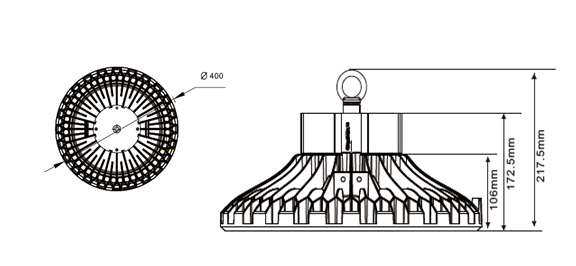

Dimensions

120w IP65 industrial workshop UFO high bay led lightings

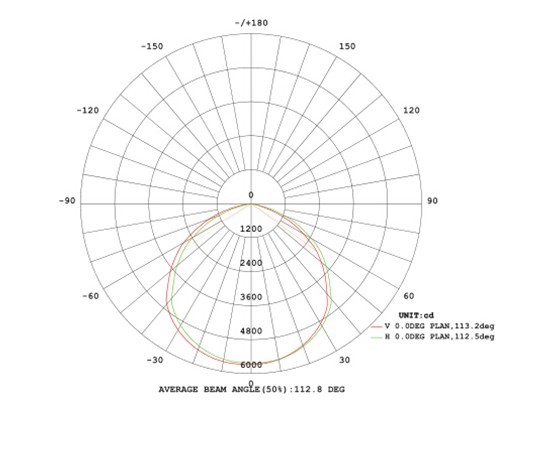

Lighting Distribution Curve

120w IP65 industrial workshop UFO high bay led lightings



Application of 120w IP65 industrial workshop UFO high bay led lightings


1. Indoor project lighting;
2. For workshop, factory, storage warehouse, exhibition center, and other places.
3. Replacement for sodium lamp

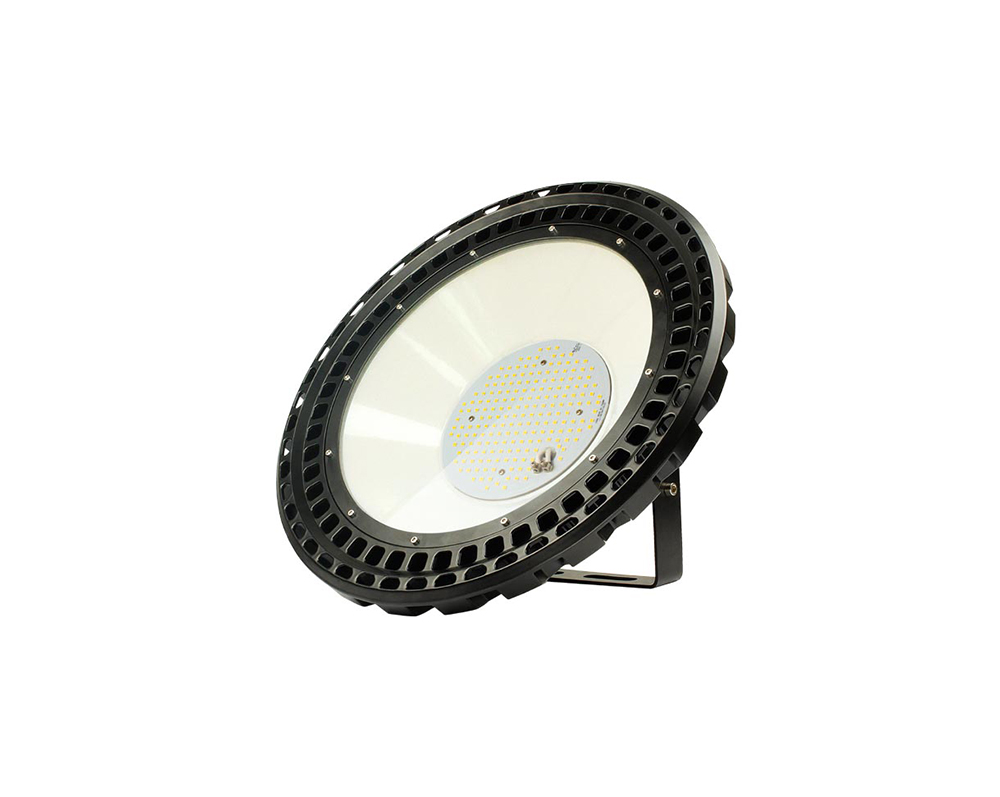

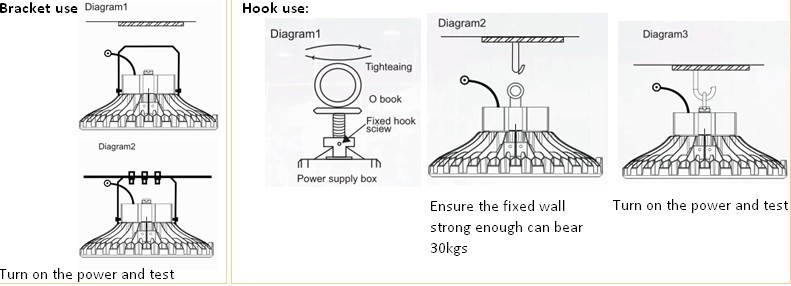

Installation



120w IP65 industrial workshop UFO high bay led lightings



Packaging & Shipping



Package of 120w IP65 industrial workshop UFO high bay led lightings



1. Net weight:8.0 kgs
2. Outer carton size: 455x455x233mm
3. Q\'ty per ctn:1 Pcs
4. G.W per ctn:8.5 kgs


Our Services



Replying your inquiry within 24 hours

Consultation from professional and experienced staff

Providing 1-3 years warranty

Solid pakage & fast delivery & newly tracking mews

OEM is welcome. Providing customized service.

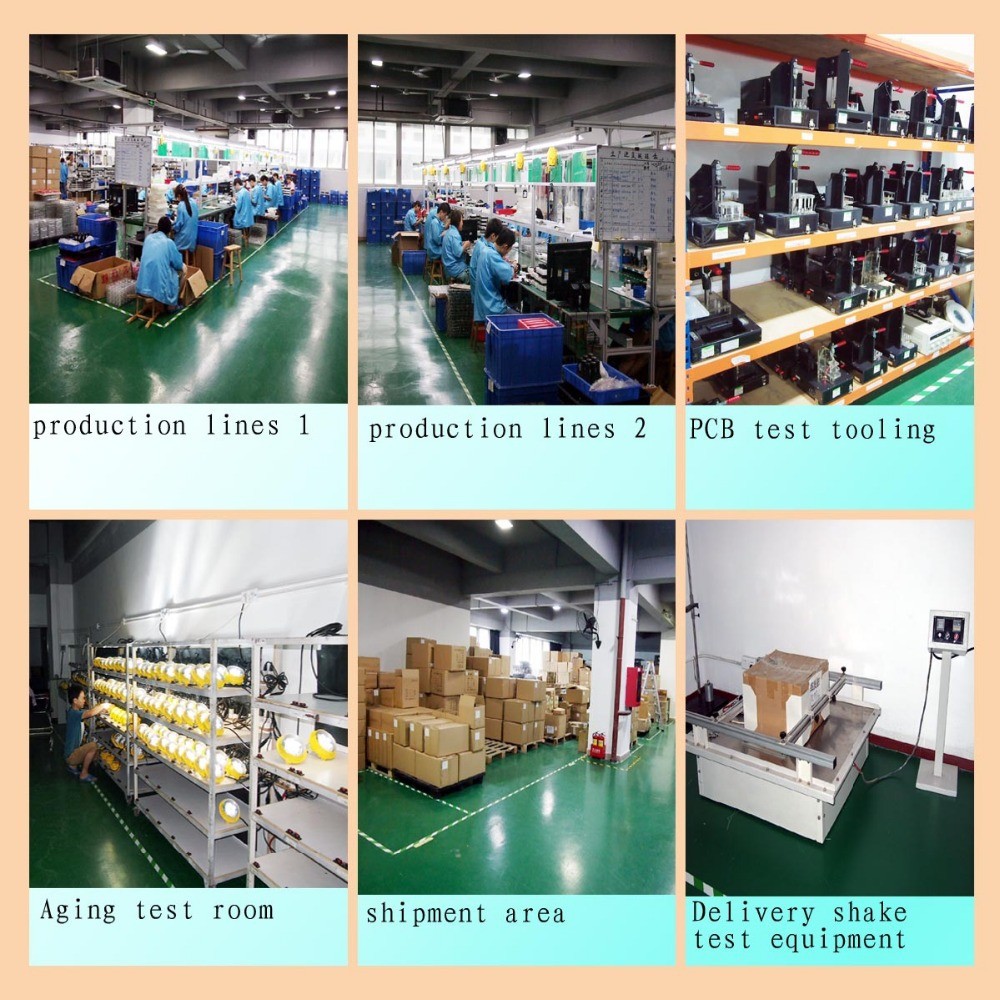

Company Information



Golden Future Enterprise HK LTD. is a specialist on the design and selling of LED industry lighting for more than 10 years,especially for miner lamp, explosion proof lighting fixture, led street light and other led commercial lightings,and etc.

Besides the led application products, our factory also can do some OEM products, such as making moylds, plastic injections, CNC aluminum parts or copper parts.

Please do not hesitaye to contact us if you need led application products or need to develop new products.
