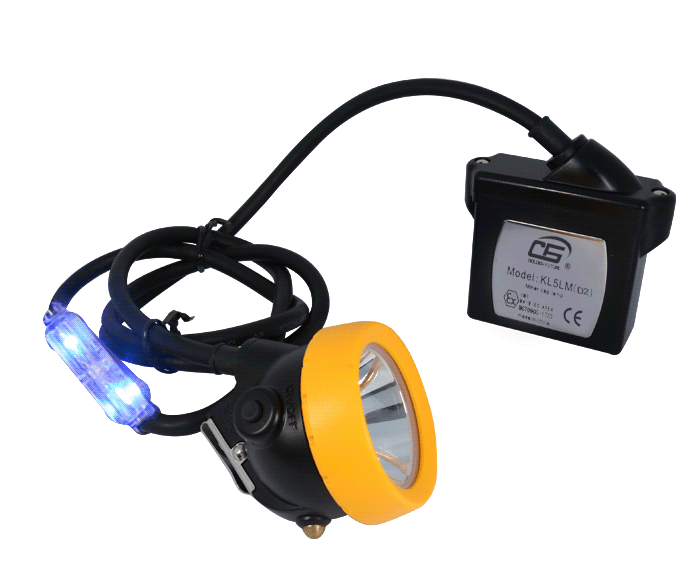

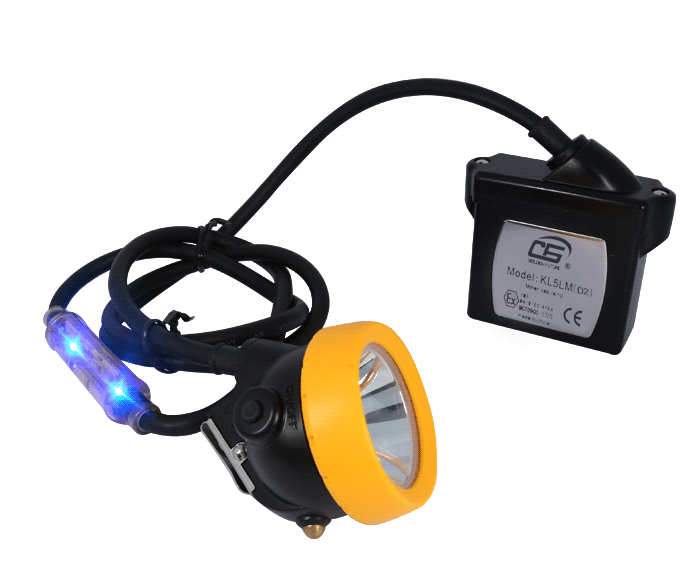

KL5LM(D2) underground safety led coal mining light/cap lap with safety rear light
LED light source: CREE
Power Source: Rechargeable Battery
Battery Type: li-ion battery
IP Rating: IP68
Certification: ATEX
Lamp Body Material: PC
Warranty(Year): 1
Lamp Power(W): 1
battery capacity: 7.8Ah
battery type: li-ion battery
Charging time: 6H
lighting degree: 20000 lux
KL5LM underground safety led coal mining light/cap lap with safety rear light
Technical parameters:
|
NO. |
item |
parameter |
unit |
remark |
|
|
1 |
Rating voltage |
3.7 |
V |
|
|
|
2 |
Rating capability |
7.8 |
Ah |
|
|
|
3 |
Lighting duration(main lamp-house) |
≥15 |
H |
The real duration is more |
|
|
4 |
intensity of illumination(main lamp-house) |
beginning |
≥20000 |
Lux |
1 meter from the lamp |
|
After 11 hours |
≥15000 |
||||
|
5 |
LED average current |
main lamp-house |
400 |
MA |
|
|
secondary lamp-house |
110 |
|
|||
|
6 |
Charge protective voltage |
4.2 |
V |
|
|
|
7 |
Discharge protective voltage |
3.0 |
V |
|
|
|
8 |
Battery circular life |
>1000 |
CIRCLE |
Circular times |
|
|
9 |
Weight |
1000 |
g |
|
|

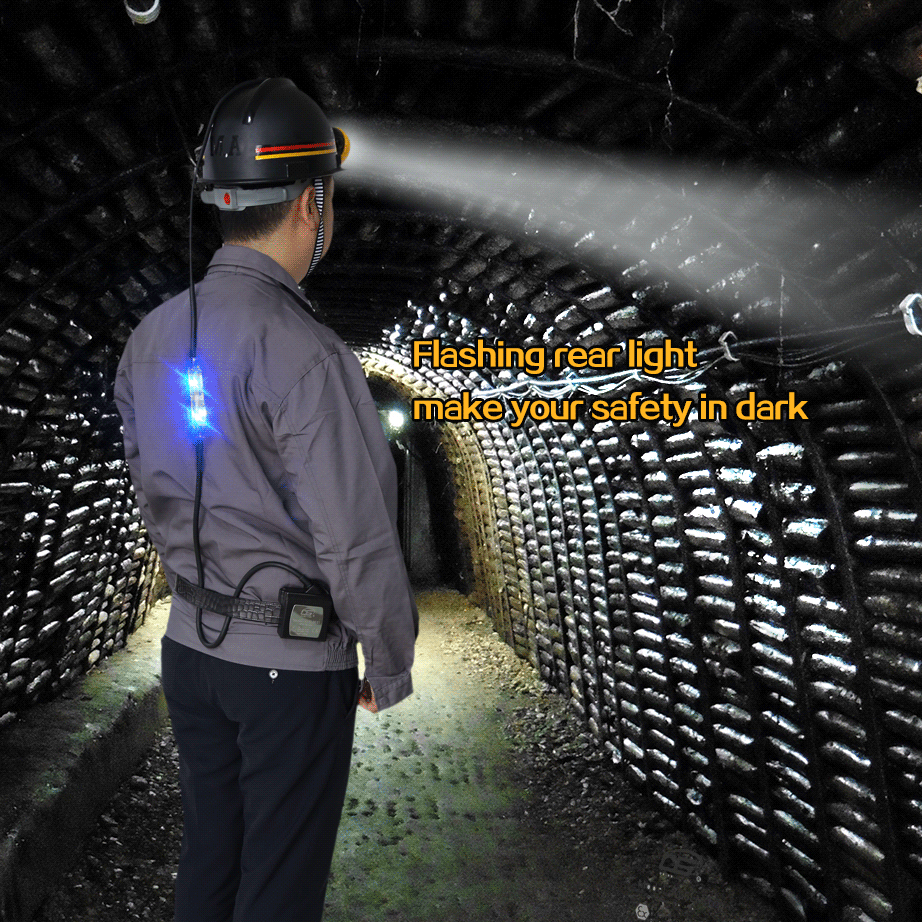

Applications of KL5LM underground safety led coal mining light/cap lamp with safety rear light
KL5LM underground safety led coal mining light with safety rear light is suitable for mineral industry, tunnel projects, construction and maintenance for power, communication, highway, railway at night, night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood, rescuing and marine use
Advantage of KL5LM underground safety led coal mining light /cap lamp with safety rear light
1. high lighting degree : main light is more than 20000 lux in full lighting time
2. with flash signal for low power indication for last one hour
3. long working time : continuous lighting time is more than 15 hours. With 7.8Ah Li-ion battery
4. safety precautions : with short-circuit protection, include single charger, charging rated voltage DC4.2V
5. certificate :CE & ATEX&I M1 Ex ia op is I Ma En 60079-35-1
6.Free maintenance, long lifetime, intrinsically safety, waterproof

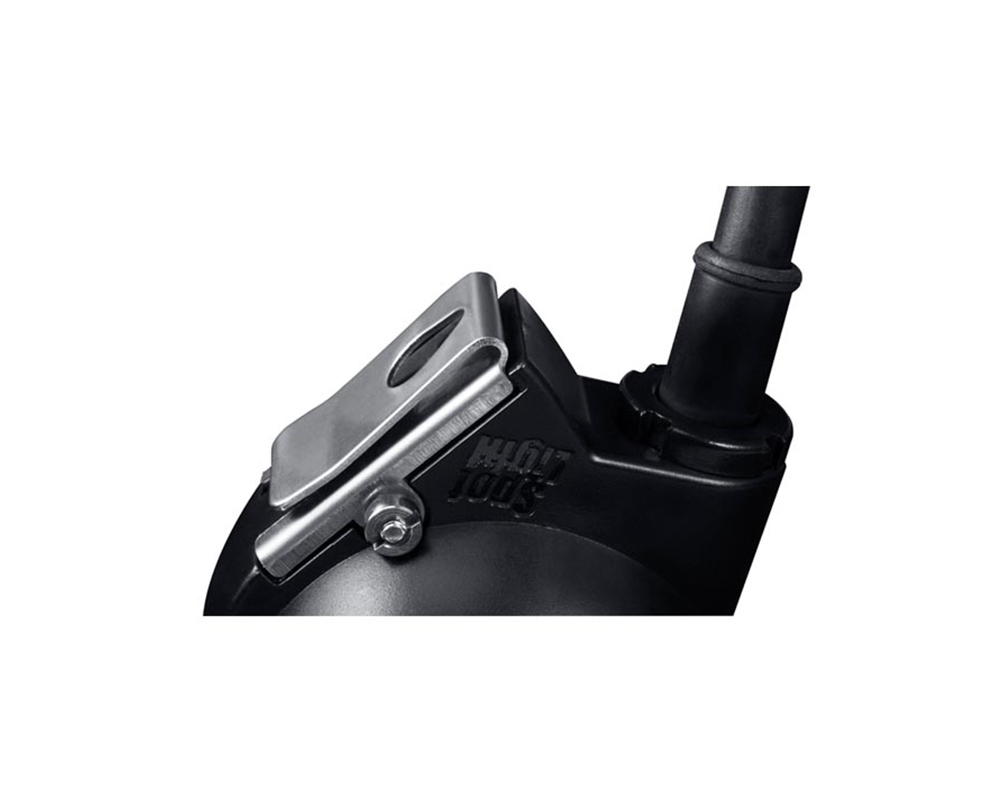

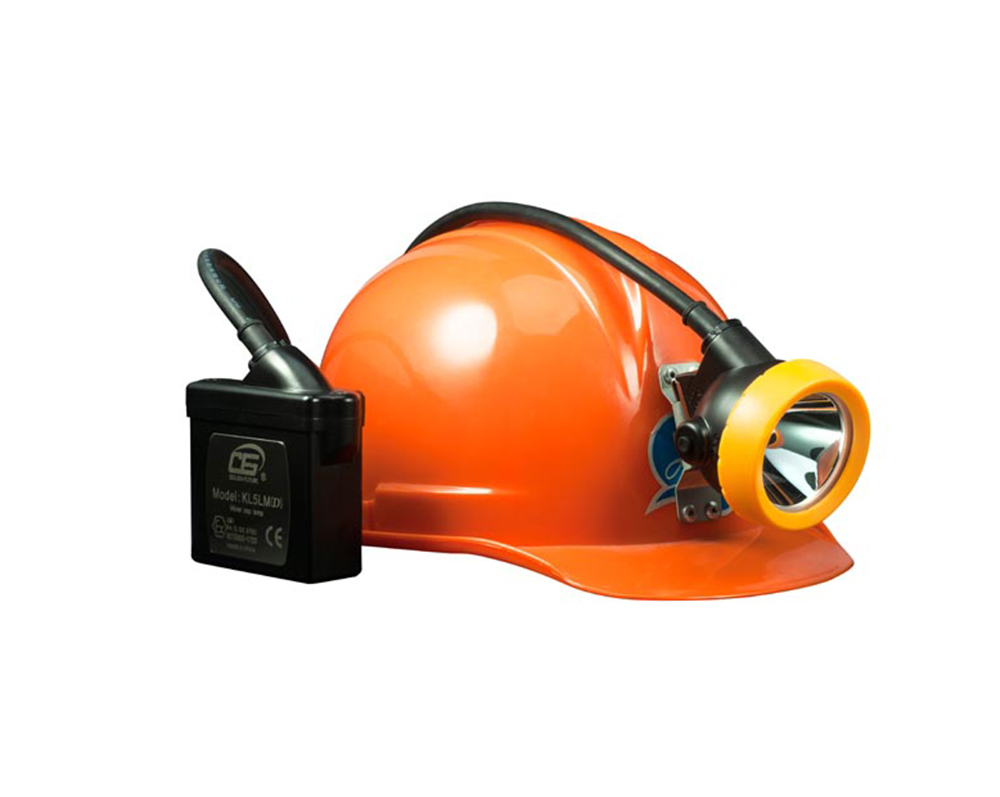

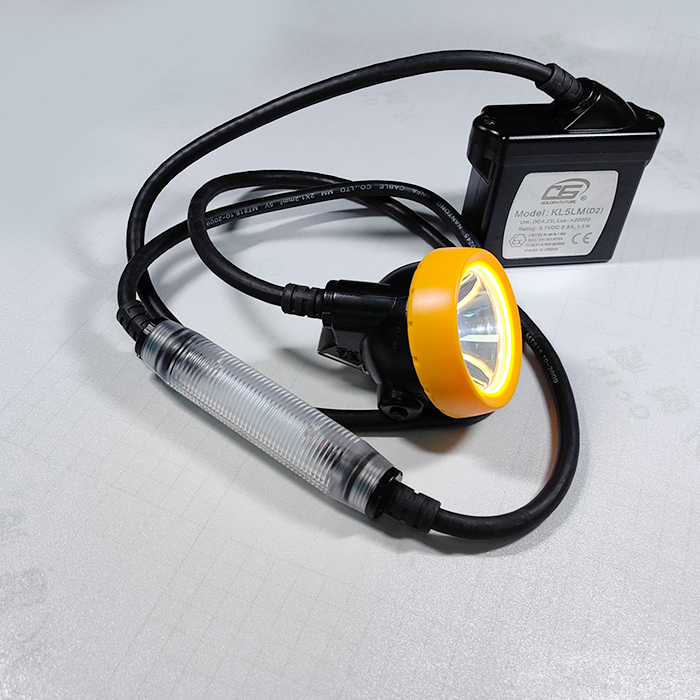

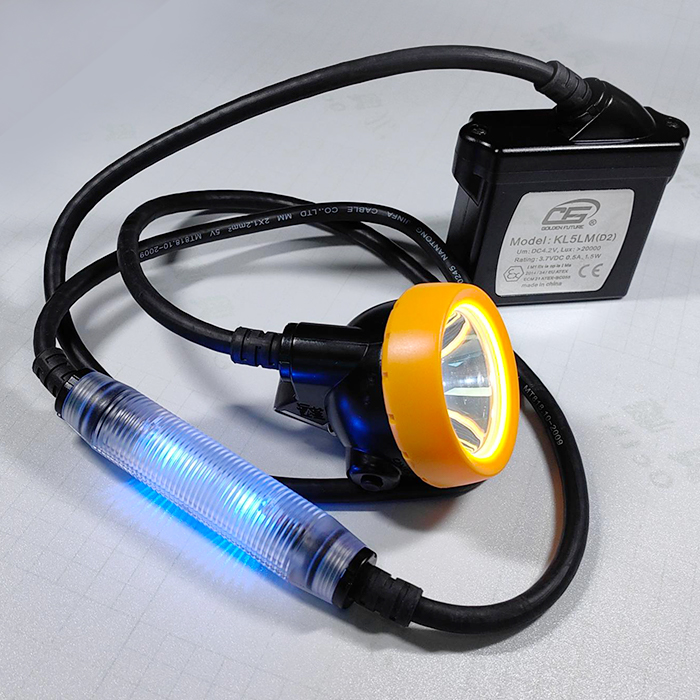

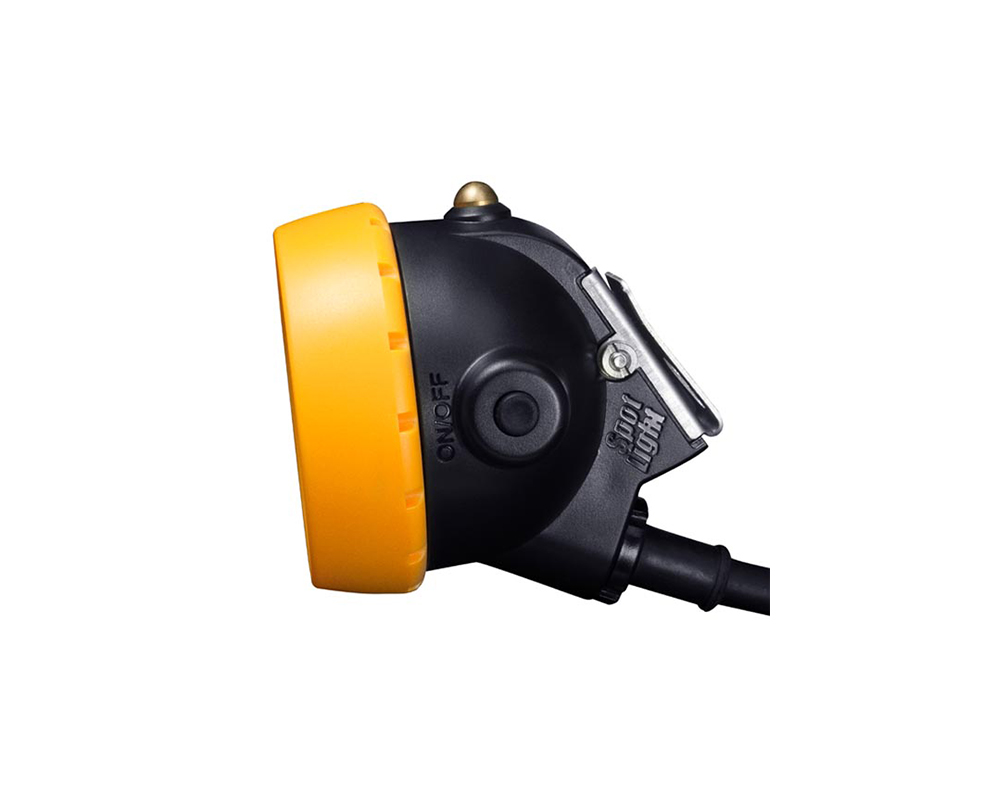

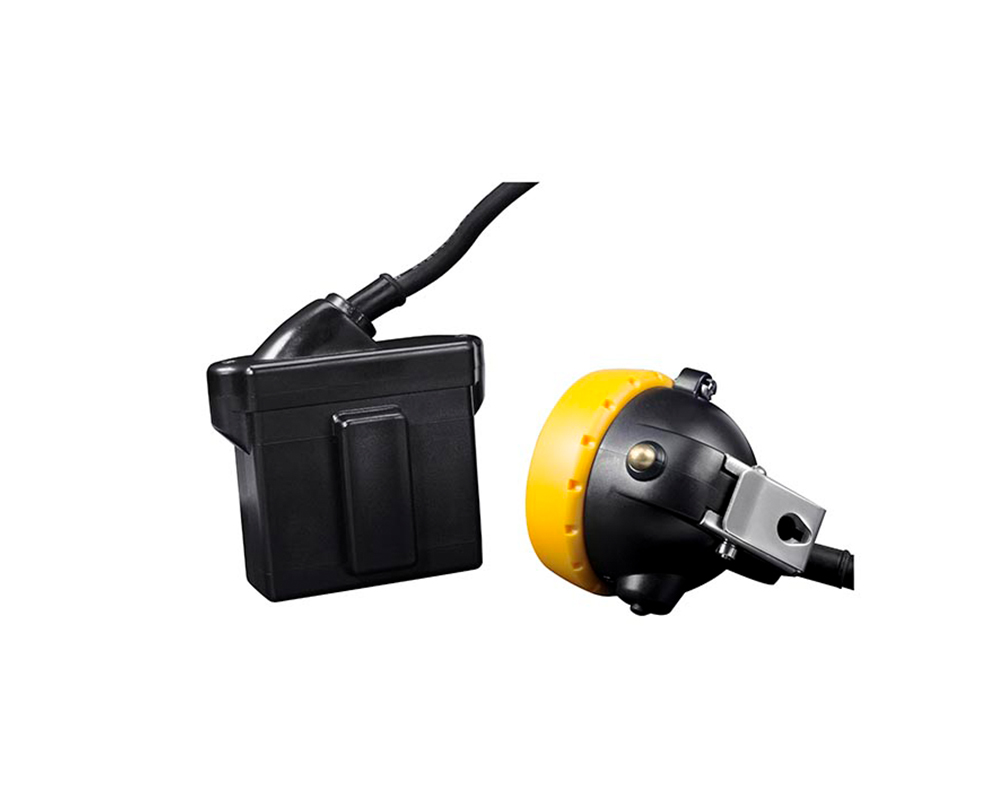

Product show:
Packing information:
20sets/carton, GW: 20KG, carton size:46*36*36cm
Our service:
We can provide good quality, quick delivery, AQ discount for all customers.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems of technical.
5. We have very experienced R&D and we have strong ability to do ODM projects.
Looking forward to cooperating with you.
Test equipment:
