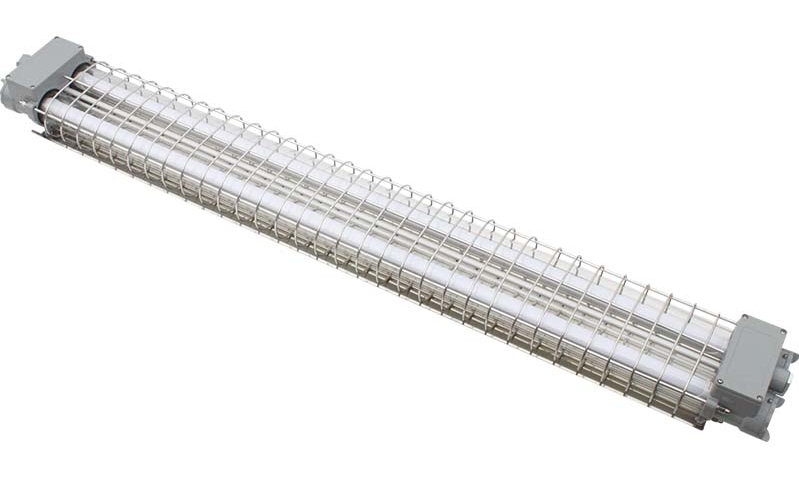

DL5401 ATEX LED explosion proof tube light for hazardous are

DL5401 ATEX LED explosion proof tube light for hazardous are

Model Number: DL5401
Light Source: led
Rated Voltage(V): AC90-264
Lamp Power(W): 2*20W / 2*10W
CRI (Ra): 80
Working Lifetime(Hour): 50000
IP Rating: IP66
Ex mark:Ex de op is IIC T5 Gb, Ex op is tb IIIC T95℃ Db

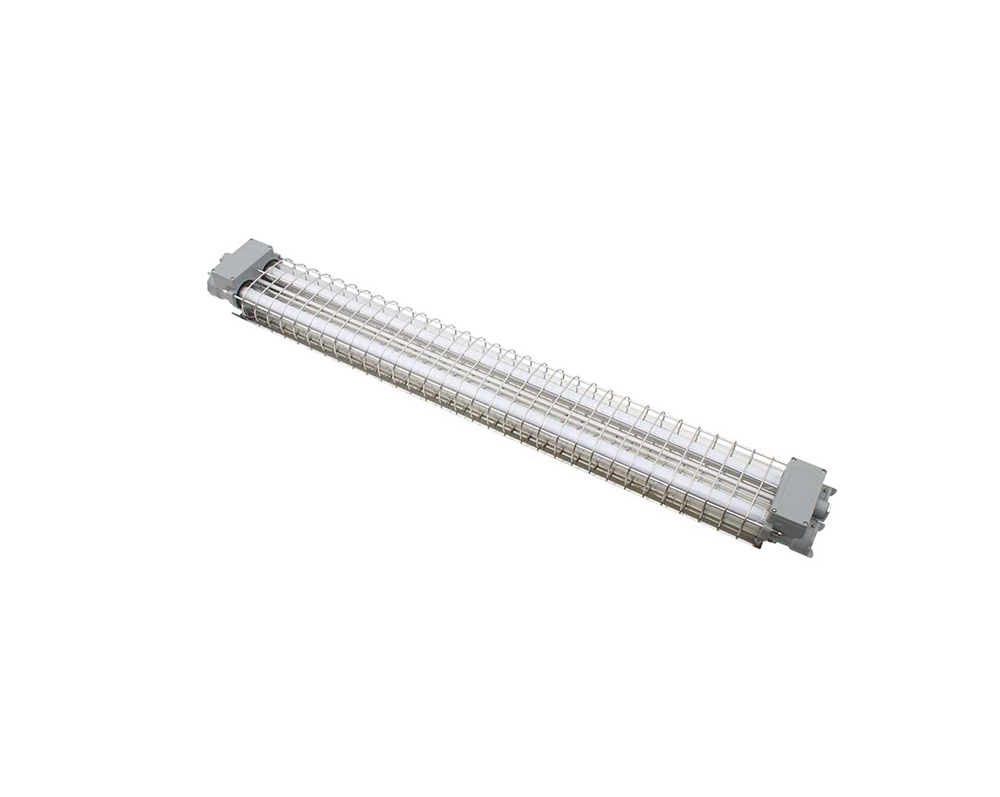

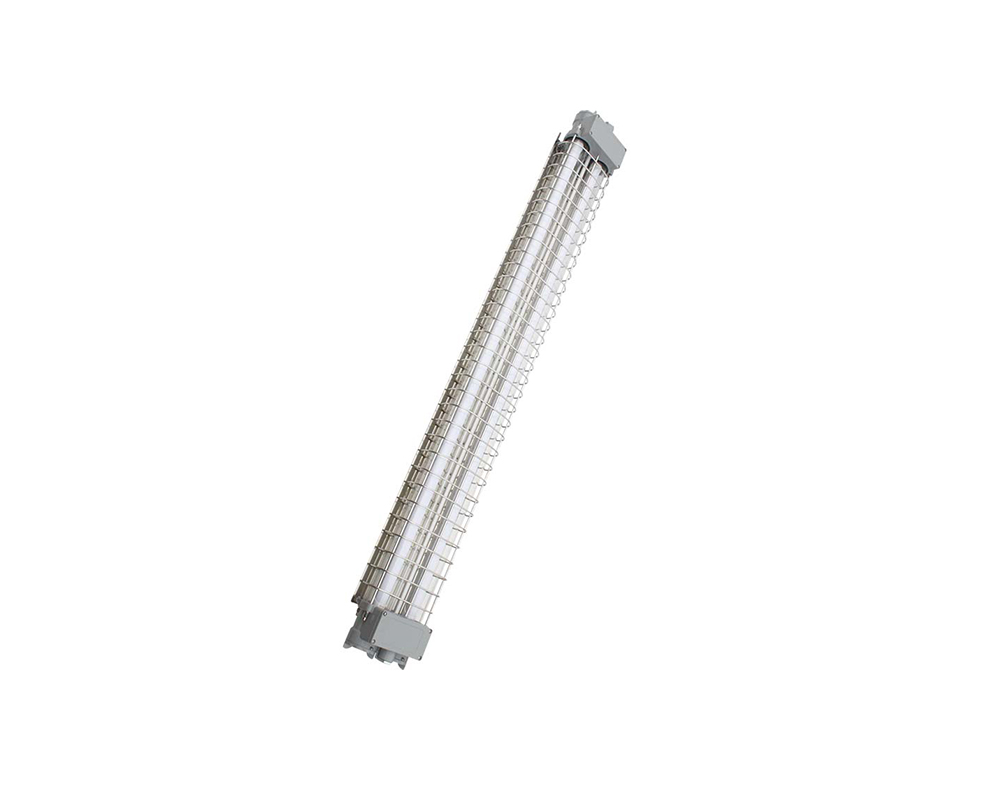

DL5401 ATEX LED explosion proof tube light for hazardous area lighting

This product can be widely used in petrochemical plants, oil platforms, oil pump housing, transit stations and other flammable and explosive places as fixed lighting.Gas explosive environment: Group IIA, IIB, IIC.Zone1, Zone2; Zone21, Zone22

Product Parameters

ITEM

Description

UNIT

Input Voltage

AC90-264

V

Rated Wattage

2*20W(T8)

2*10W(T8)

W

Light output

3900

1800

lumen

Light source

LED



Rated Frequency

50/60

Hz

Life time

50000

Hours

Cable entry thread

M20×1.5, M25×1.5, NPT3/4", NPT1/2", G3/4"



  Terminals

  Multi core: ≤ 2.5mm 2
Single core: ≤ 4mm 2

Correlate Color Temperature

5000

K

Color Rendering Index

80

RA

Ex Marking

               Ex de op is IIC T5 Gb, Ex op is tb IIIC T95℃ Db

Dimension

1390×180×110

780×180×110

mm

Net Weight

10.7

6.6

kg



Product Features:

1 It is made using a special aluminum housing, suitable for long-term  highly corrosive environment of offshore platforms, chlor-alkali, hydrogen sulfide, etc.

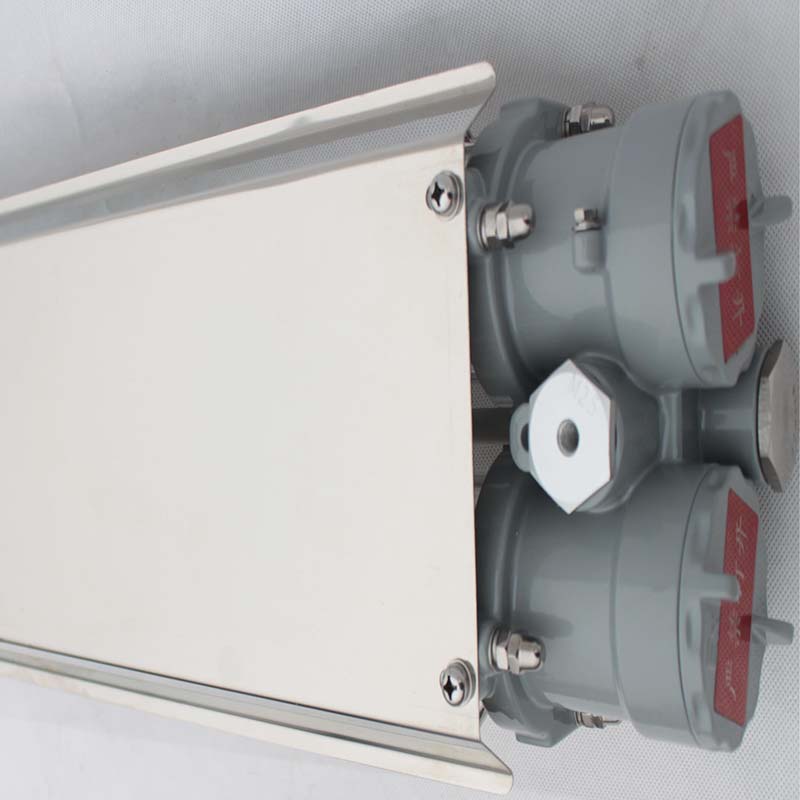

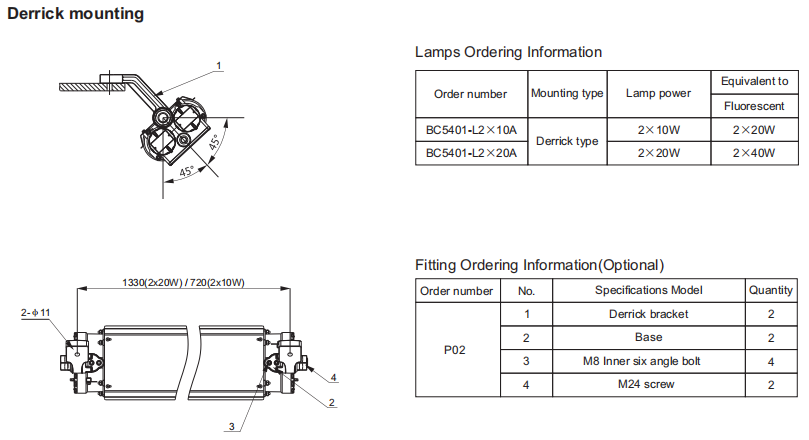

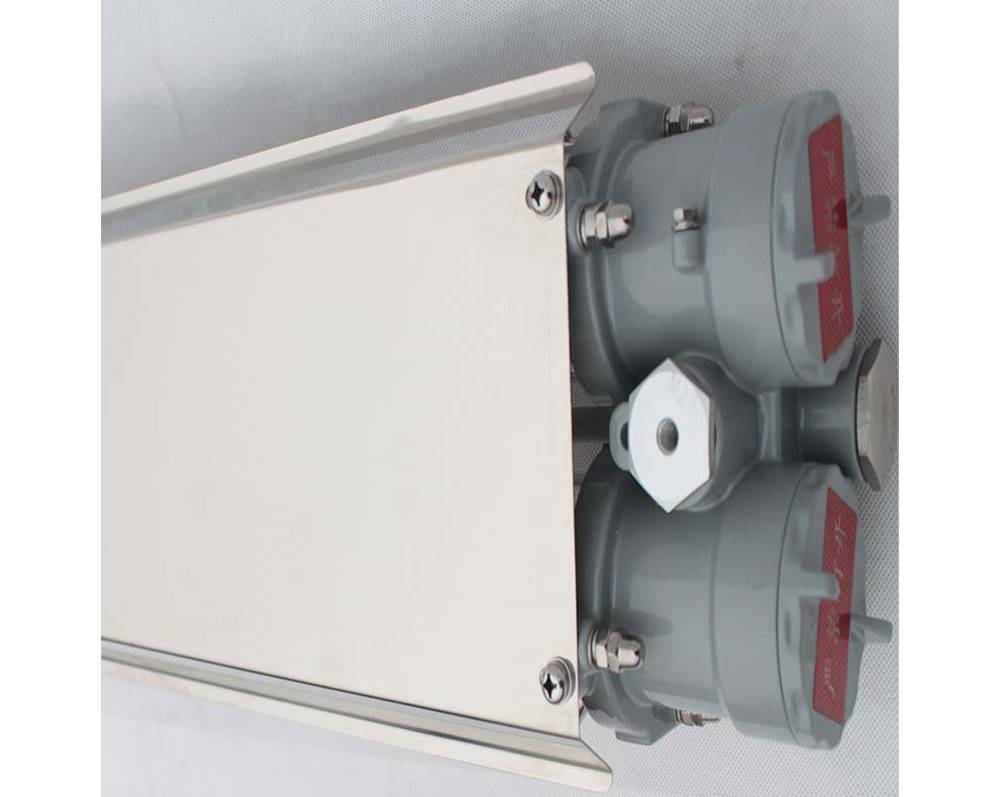

2. Derrick mounting fixture adopt high anti-corrosive aluminum and locking angle equipment, can be safely used in drilling platforms and high
vibration environment.

3.The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof, make the lamp an excellent high pressure environment

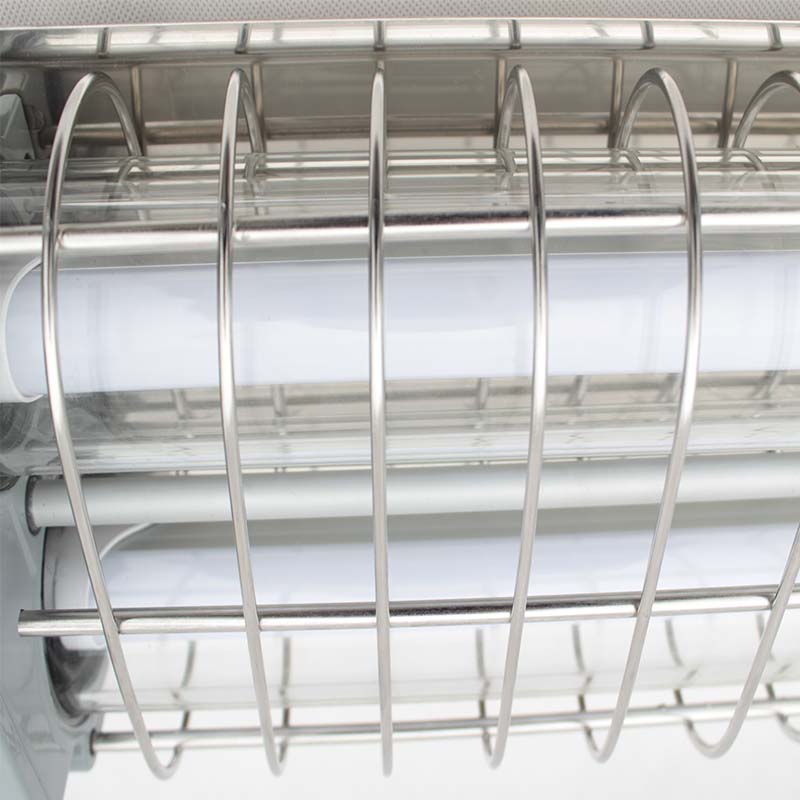

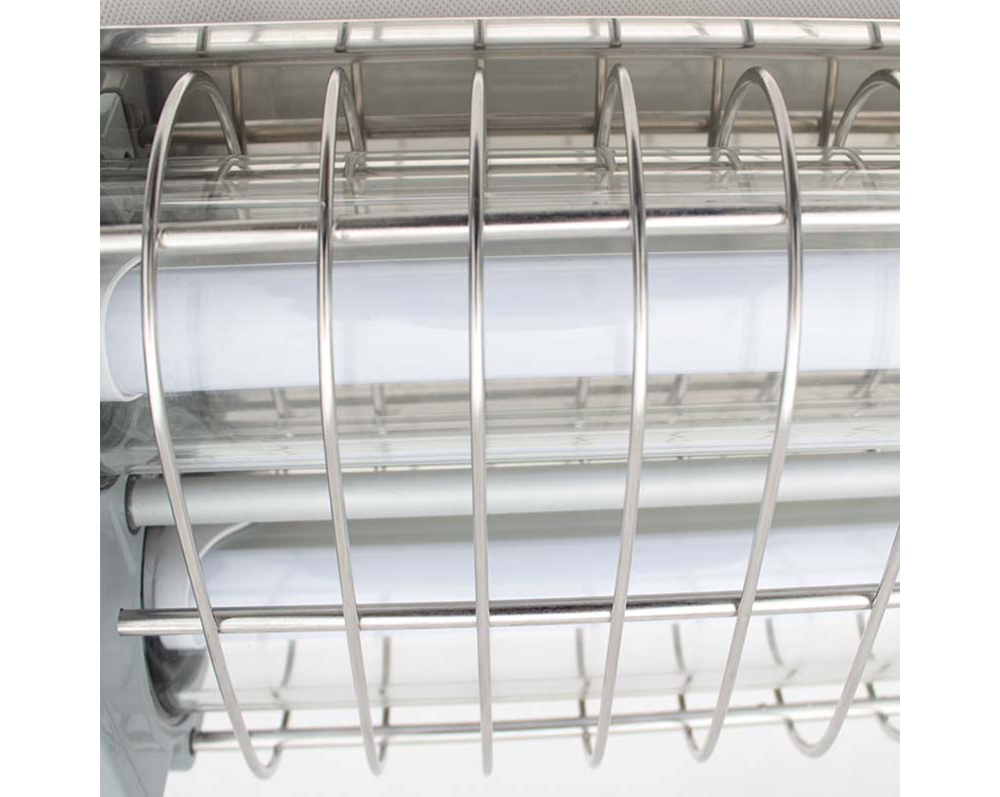

4 Bracket, reflector, guard, and all exposed fasteners adopt 304 stainless  steel (customizable 316), can effectively guarantee the strength and
strong anti-corrosion performance of lamp

5 Terminals are provided at both ends, can be directly wired in parallel, eliminating the junction box and installation costs.

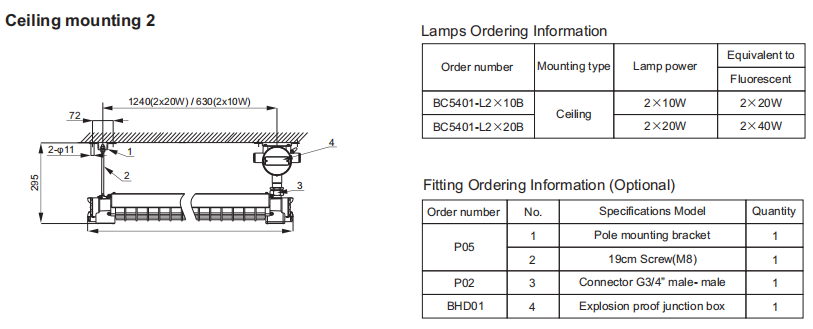

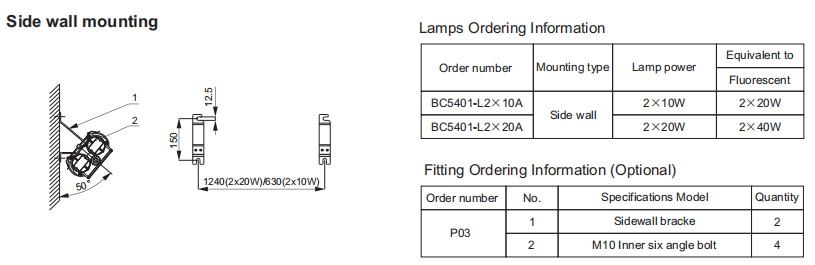

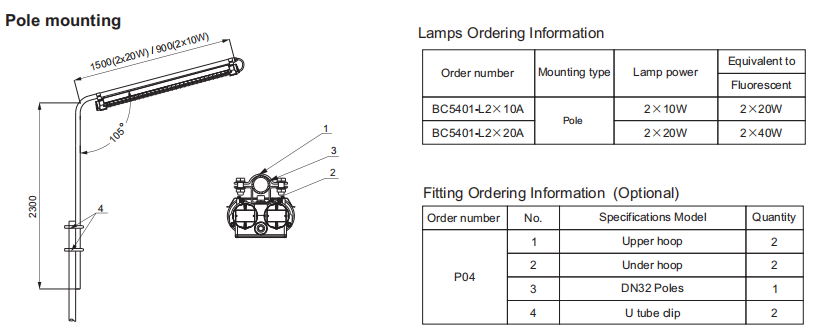

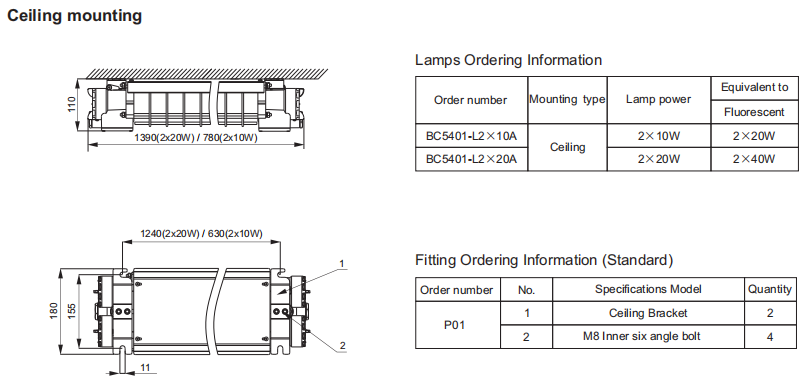

6. A variety of installation as optional: ceiling, oil derrick, the side walls,  curved rods, boom, etc.

Install
