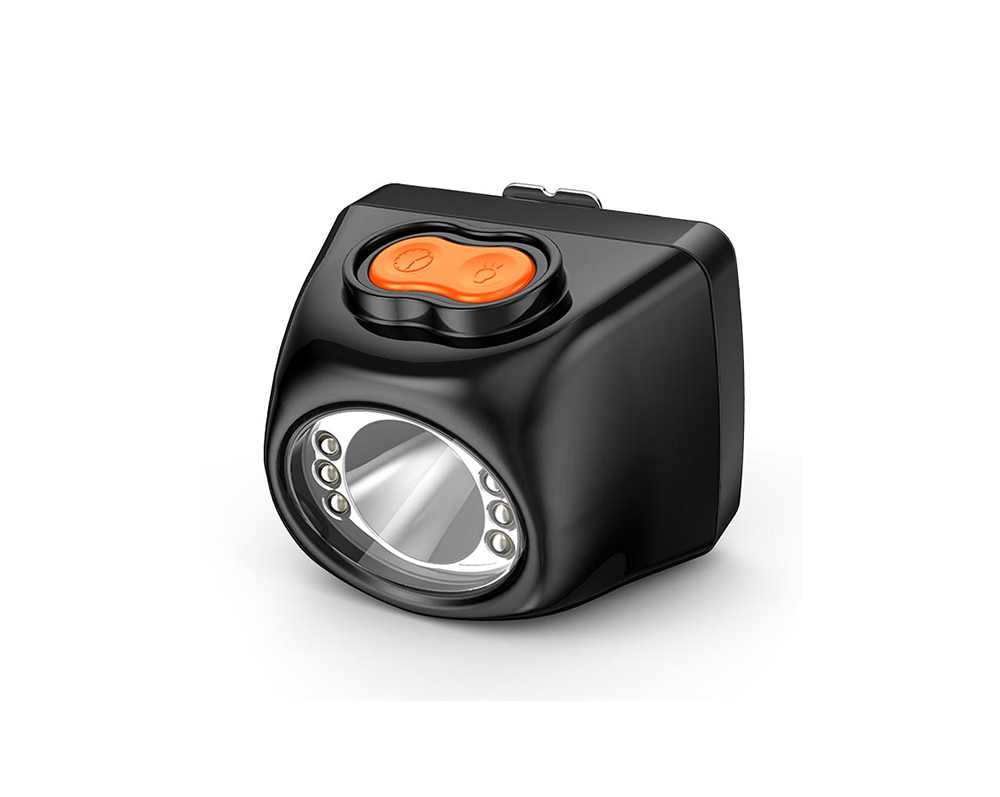

KL4.5LM underground led safety cordless miners lamp headlamp with digital device ​

KL4.5LM underground led safety cordless miners lamp headlamp with digital device ​

Model Number: KL4.5LM
LED light source: CREE
Power Source: Rechargeable Battery
Battery Type: li-ion battery
IP Rating: IP68
Certification: ATEX,MSHA,SABS, IECE
Lamp Body Material: PC
Warranty(Year): 1
Lamp Power(W): 1
battery capacity: 5.2Ah
battery type: li-ion battery
Charging time: <6H
lighting degree: 7000 lux

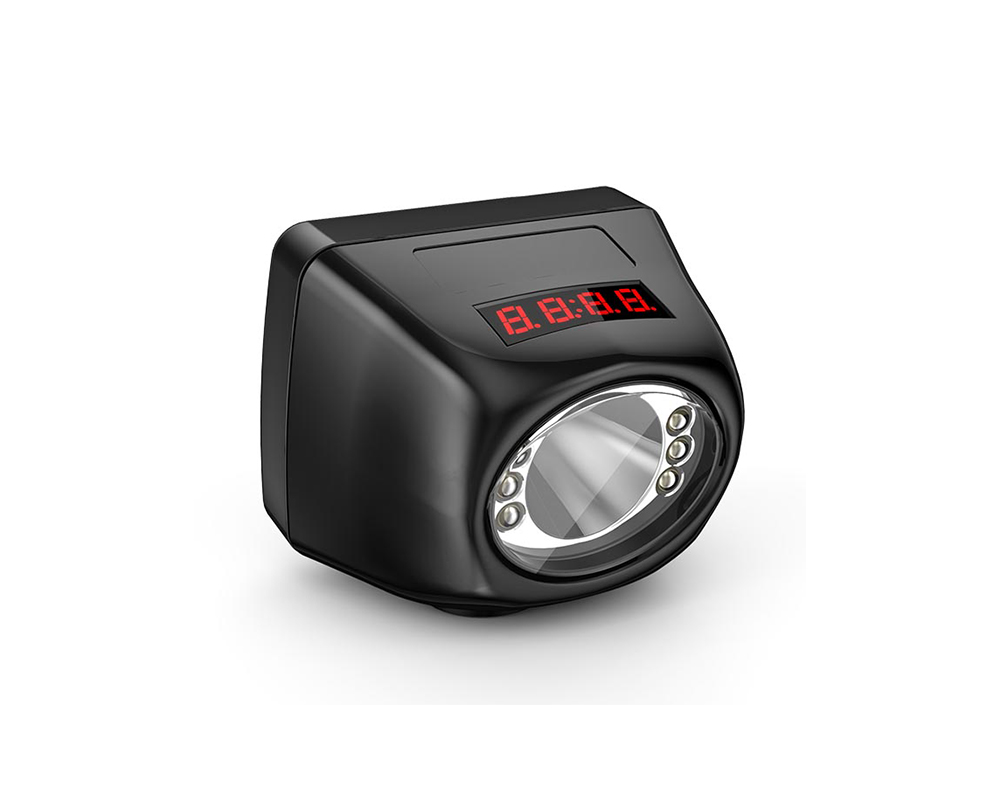

KL4.5LM underground led safety cordless coal miners lamp headlamp with digital device

miners lamp/mining light/cordless miners lamp/safety mining light





Product Description

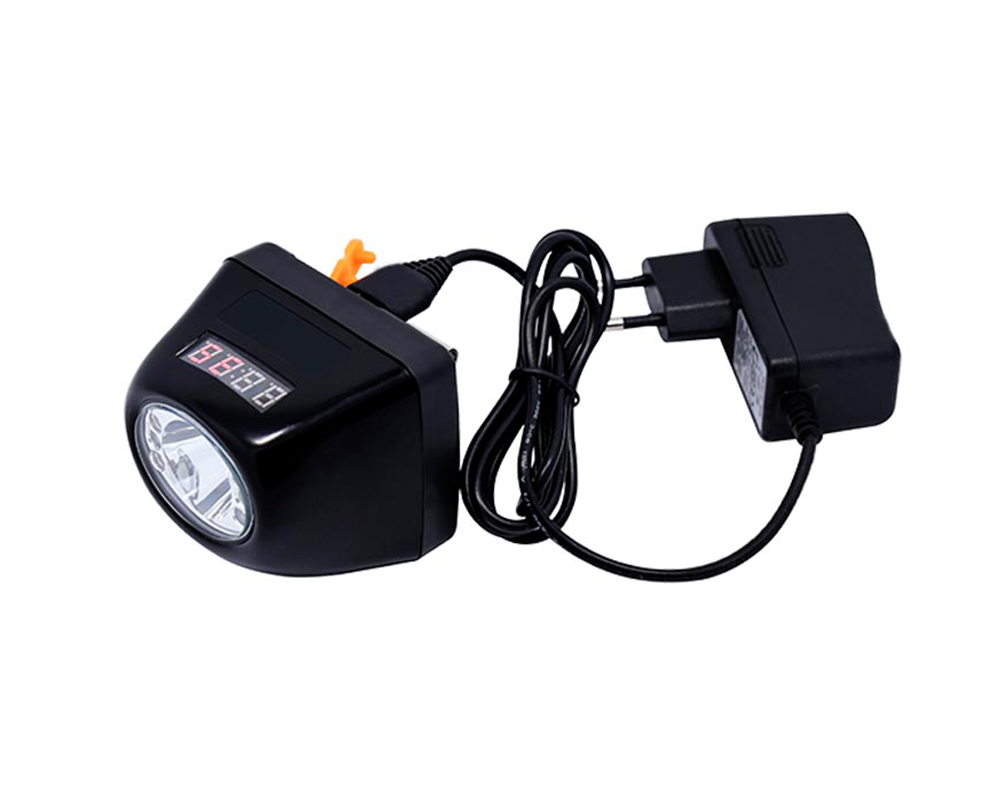

KL4.5LM underground led safety cordless coal miners lamp is a new designed model for miner. It has 4pcs led digital device,which can show product number,time and battery capacity.also remind user to recharg it when battery energy balance not enough for 1 hour lighting.

KL4.5LM miners lamp/coal miners lamp/cordless mining light/safety mining lamp/cap lamp





Technical Parameter of KL4.5LM underground led safety cordless coal miners lamp



Features

Value

Unit

Light source

LED Power

1

W

Luminous flux

>120

Lm

Life time

>100,000

hour





Li-ion battery





Rated capability

5.2

Ah

Rated voltage

3.7

V

Continuous working time

>15

hour

Charging time

<6

hour

Life time

1000

circle

Charing voltage and current

4.9V@1A

lamp lighting degree (distance 1 meter)

>7000

Lux

Accessory light Usage life hour

100000h



Short circuit protect time

<15ms



Weight (with battery)

<215

g

Outline dimension

77*61*55

mm

IP Class

IP68

EX MARK :

I M1 Ex ia op is I Ma En 60079-35-1



Advantage of KL4.5LM underground led safety cordless coal miners lamp



Safety: All in one case with PC plastic material , make very good feature of explosion-proof.

Protection in electrical short-circuit, automatic power-off on the socket , 100,000 hours LED’s Lifetime

Reliability: The high strength case , optimized structure design and MCU control make the product more reliable. And we also can provide RFID tag (in option) to track the miners.

Portability: Just a head lamp , Small in size , light in weight (only 215g for whole product), simple charging, easy usage

Efficiency: more than 15hours at full brightness. more than 7000lux at starting time, and more than 3500lux after 11 hours continuous lighting.Battery usage lifetime about 1000 cycles.

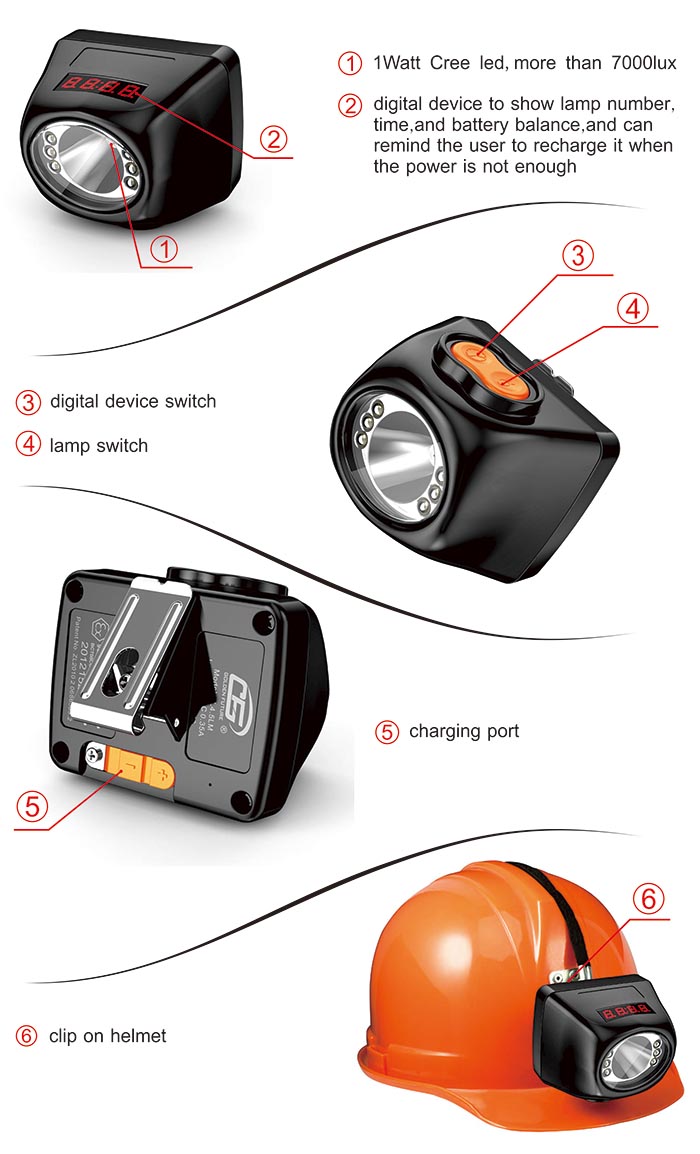

With digital device to show lamp number, time, and battery balance, show charging status, and can remind the user to recharge it when the power is not enough for one hour lighting.

Environmental: Li-ion battery is free for maintenance, and the material of li-ion is environmental, use 1Watt high power LED as the main light, and 6pcs 5mm backup LED’s to save power

Economy: three times longer than lead and acid cap lamp and saving in maintenance makes the product more compatible in price

Charger input power: AC100-240V / 50-60Hz. Charging time: 5 hours, continuous discharging time: more than 15 hours for main light, more than 40 hours for backup light.

Type of protection:I M1 Ex ia op is I Ma En 60079-35-1

Protection category: IP68



Agents all over the world: Russia, South Africa, USA, Canada, Ecuador, Colombia, Peru, Chile, Brazil, Turkey, Mongolia, Australia, India, and etc. Please contact us to know the agent which close to you.



Application of KL4.5LM underground led safety cordless coal miners lamp

KL4.5LM led safety cordless coal miners lamp can be widely used for safety lighting for the flammable and explosive environment.such as all kinds of mines,petroleum,chemical industry ,roadway,electric power plant,tunnel,exploring etc.



cordless miners lamp/safety mining light/cordless mining light/cap lamp/mining cap lamp





Packaging & Shipping

20pcs/ctn,gross weight :9kg/ctn ,Carton size : 41*33*24

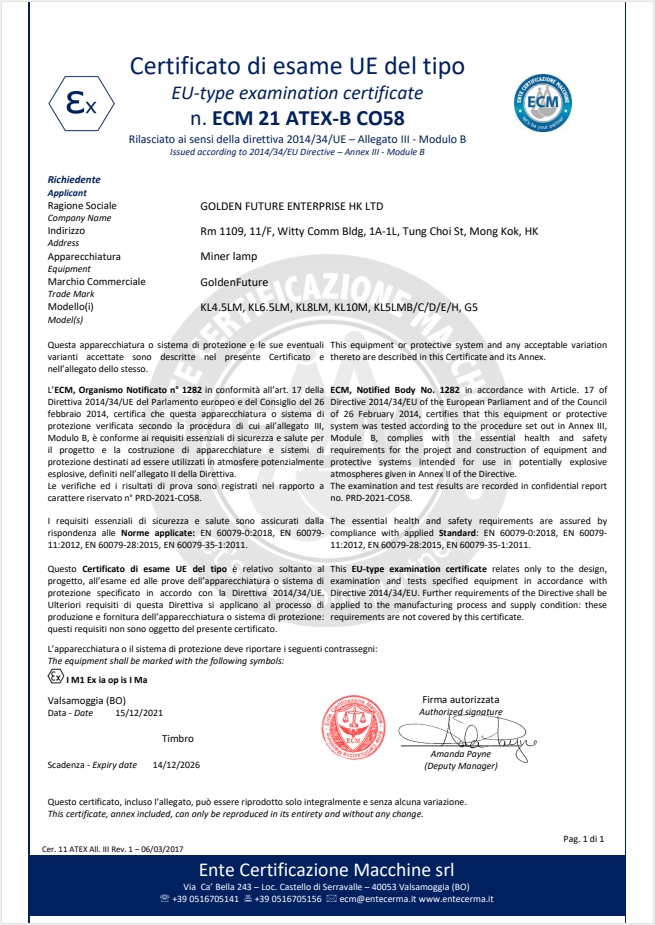

ATEX Certification:



kl4.5lm cordless miners lamp atex certification
