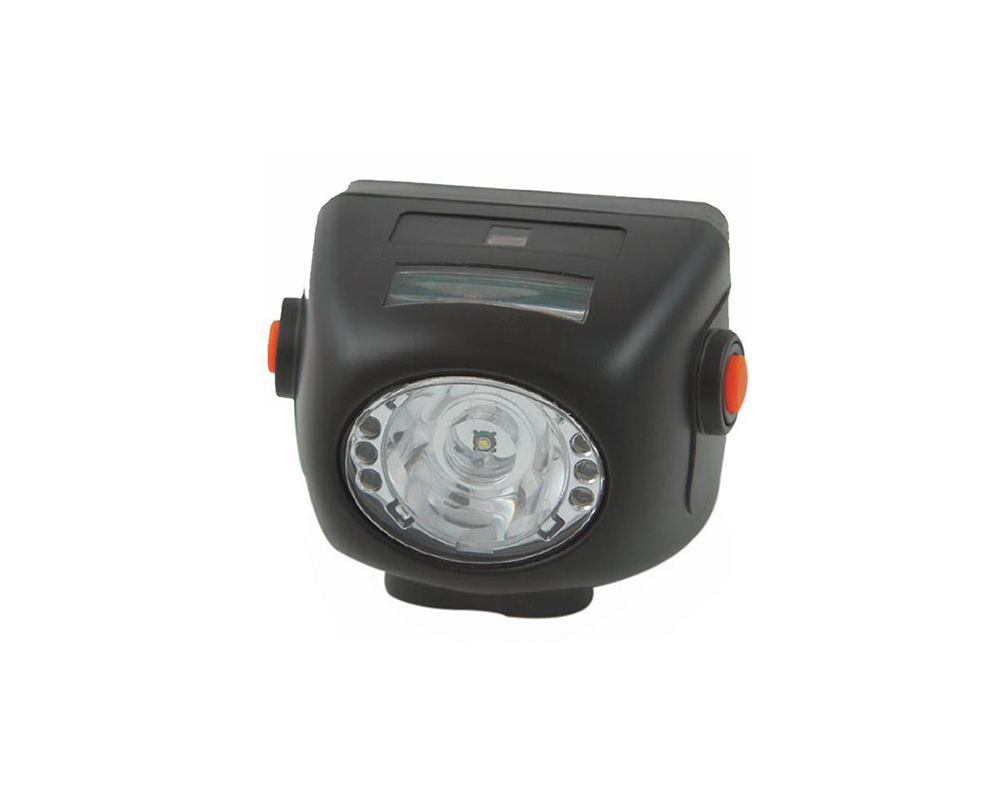

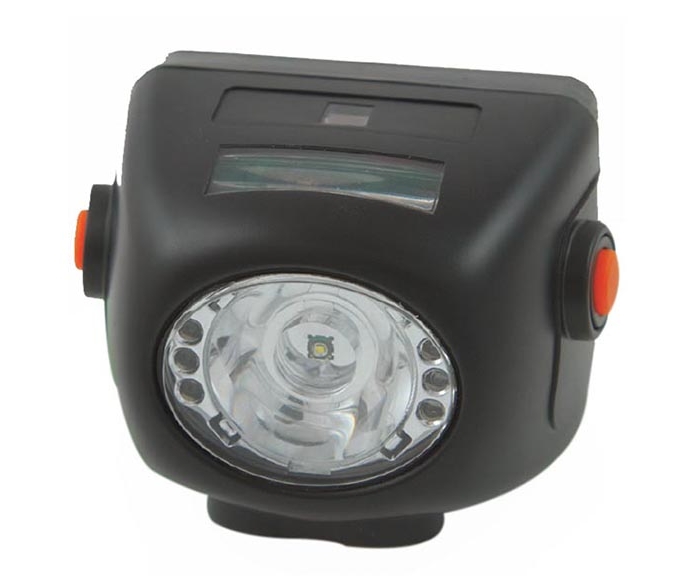

Newest coal led cordless miner cap lamp/mining lamp/mining light with RFID tracking tag

Newest coal led cordless miner cap lamp/mining lamp/mining light with RFID tracking tag

Model Number: KL4.5LM-RFID

LED light source: CREE

Power Source: Rechargeable Battery

Battery Type: li-ion battery

IP Rating: IP68

Certification: ATEX

Lamp Body Material: PC

Warranty(Year): 1

Lamp Power(W): 1

battery capacity: 5.2Ah

battery type: li-ion battery

Charging time: 5H

lighting degree: 7000 lux

Newest coal led cordless miner cap lamp/mining lamp/mining light with RFID tracking tag

coldless mining cap lamp|mining light with rfid tracking tag



Golden Future miner cap lamp offers all the standard cap lamp features in a compact, light weight and durable cordless cap lamp. Pls note this RFID cap lamps is Collocation use with system of NewTrax.


• Safety: All-in-one case with PC plastic material, protection against electrical short-circuit, automatic power-off on the socket, 100,000 hours LED’s lifetime.


• Reliability: The high strength case, optimized structure design and MCU control make the product very reliable.


• Portability: All functionalities enclosed in a head lamp, small in size, light in weight (275g),
simple to charge and easy to use.


• Efficiency: More than 15 hours at full brightness, more than 7000 lux ; battery usage lifetime of 1,000 cycles (approx); includes a digital device to show lamp number, time, and battery balance.


• Environmental: Li-ion battery is free of maintenance and environmentally safe; uses 1 Watt high power LED as the main light, and 4pcs 5mm backup LED’s to save power.


• Economy: Very low maintenance, lasts three times longer than regular lead and acid battery
powered cap lamps.



Function of RFID miner cap lamp:



1) Tracking: Tracking of location;
2) Evacuation notifications: flashing of light for Evacuation notifications;
3) Man-down detection;
4) Emergency assistance request;
5) Emergency stop signal to vehicles in range;
6) Proximity warning: Proximity warning to vehicles in range;

7) Acknowledgment of evacuation notifications.

8) online/offline indicator;

9) daily mandatory self-test procedure



Technical Parameter

Features

Value

Unit

Light source

LED Power

1

W

Luminous flux

>120

Lm

Life time

>50.000

hour





Li-ion battery





Rated capability

5.2

Ah

Rated voltage

3.7

V

Continuous working time

>15

hour

Charging time

<6

hour

Life time

1000

circle

Charing voltage and current

[email protected]

lamp lighting degree (distance 1 meter)

>7000

Lux

Accessory light Usage life hour

100000h



Short circuit protect time

<15ms



Weight (with battery)

<215

g

Outline dimension

77*61*55

mm

IP Class

IP68

EX MARK :

I M1 Ex ia op is I Ma En 60079-35-1

Room of Age test picture:

Room of Age test picture for miner cap lamp
