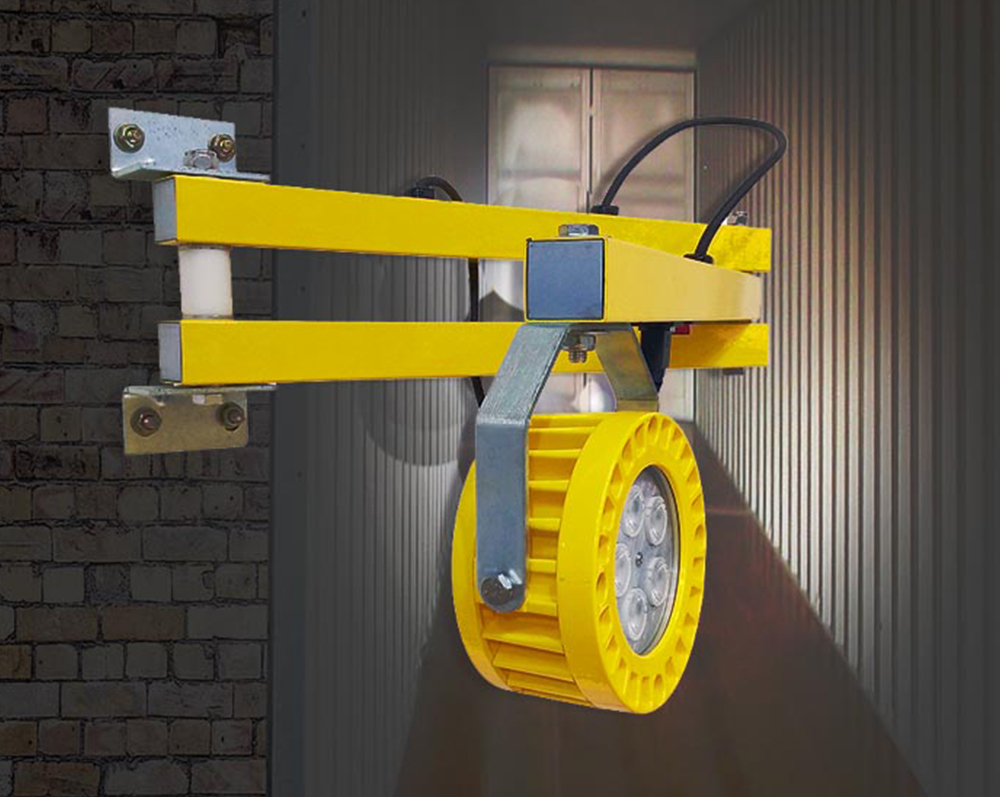

DL619 corrosion proof led warehouse loading dock light with flexible arm

Model Number: DL619

LED Light Source: CREE

Input Voltage(V): AC85-265V

Lamp Power(W): 30

Lamp Luminous Flux(lm): 2850

Working Lifetime(Hour): 50000

IP Rating: IP66

Housing: aluminium alloy

Certificatiion: UL,CE,ROHS

Corrosion proof: WF2

Product Details

DL619 corrosion proof led warehouse loading dock light with flexible arm


Light Source:

5pcs Cree LED

50,000 hours average rated life

beam angle:25°standard (15°,45°,60° for option)


Lens:

Toughened glass(standard)

Impact-resistant clear polycarbonate,Impact-resistant diffuse polycarbonate for option


Features:

a) Reliability: high impact resistant with appropriate structure design; with polyester powder coated surface;long time use in high temperature and corrosive environment;

b) Safety: dust proof and water proof with tightening structure

c) Energy-saving: high efficient semiconductor light-emitting technology, saving energy by 70% compared with the traditional light source;

d) Economy: long lifespan light-emitting diodes; maintenance-free

e) Convenience: U-tape bracket Mounting

f) Uniqueness: providing excellent optical performance by adopting high reflecting, high transmittance focus len

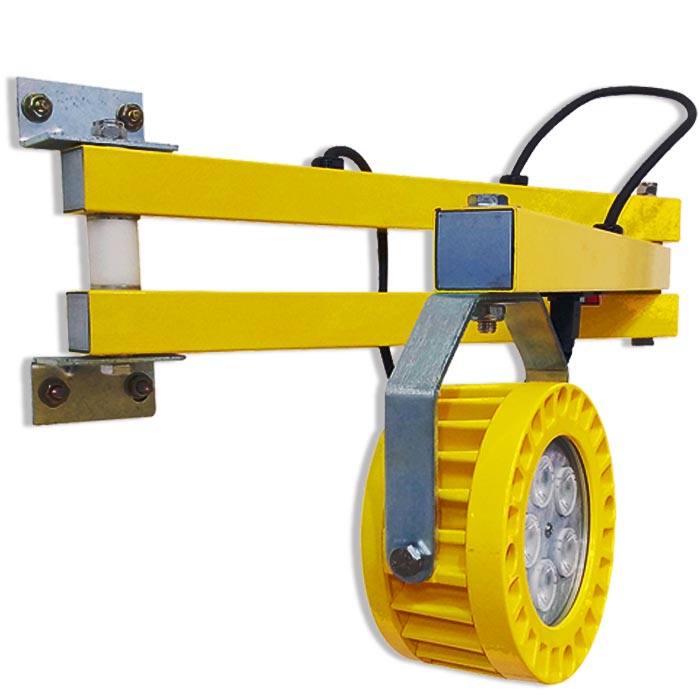

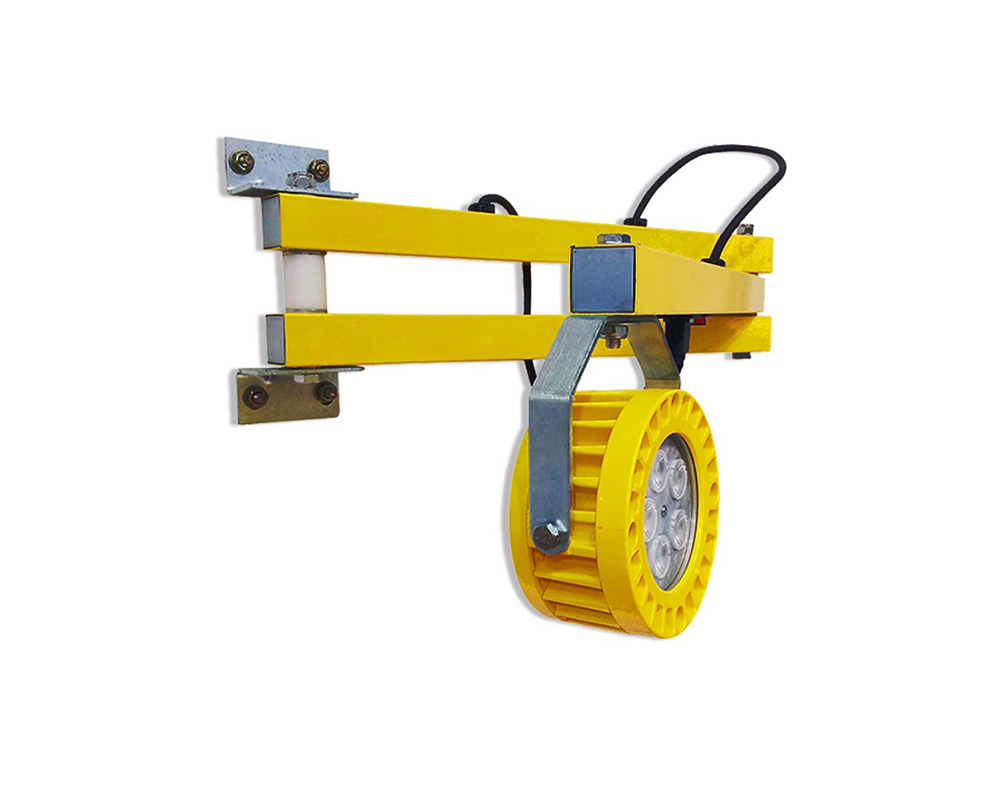

Flexible arm specificatons

Flexible arm length: 1m/ 1.8m optional

Tube section size:4*4cm

Tube material thickeness: 2mm

with switch and plug socket on it. (cable go through the flexible arm)

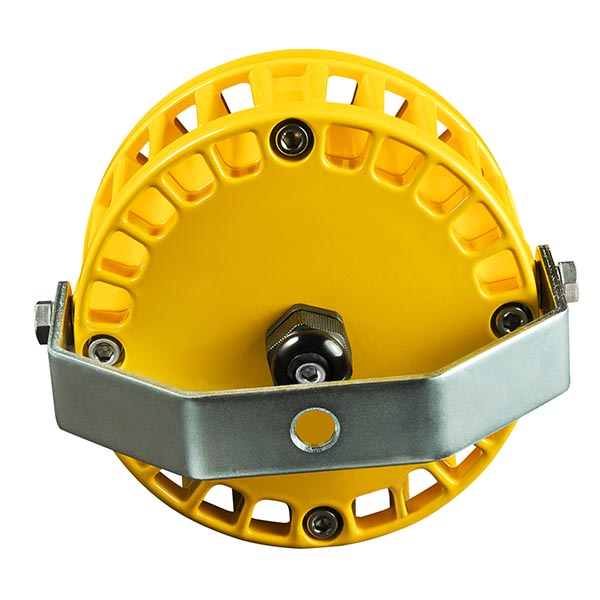

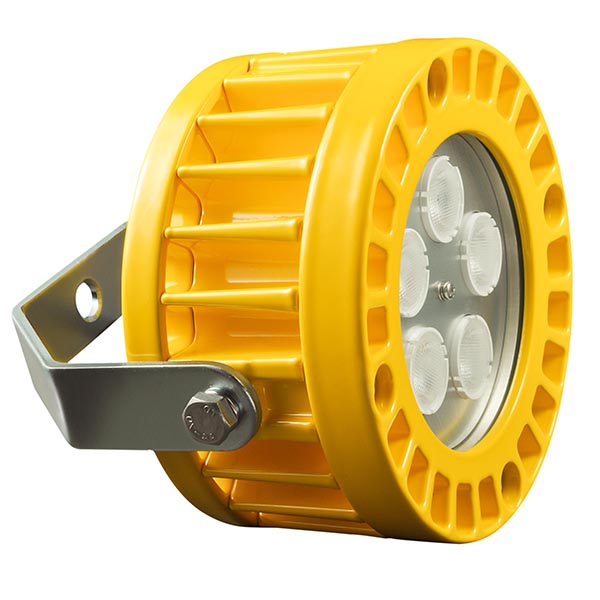

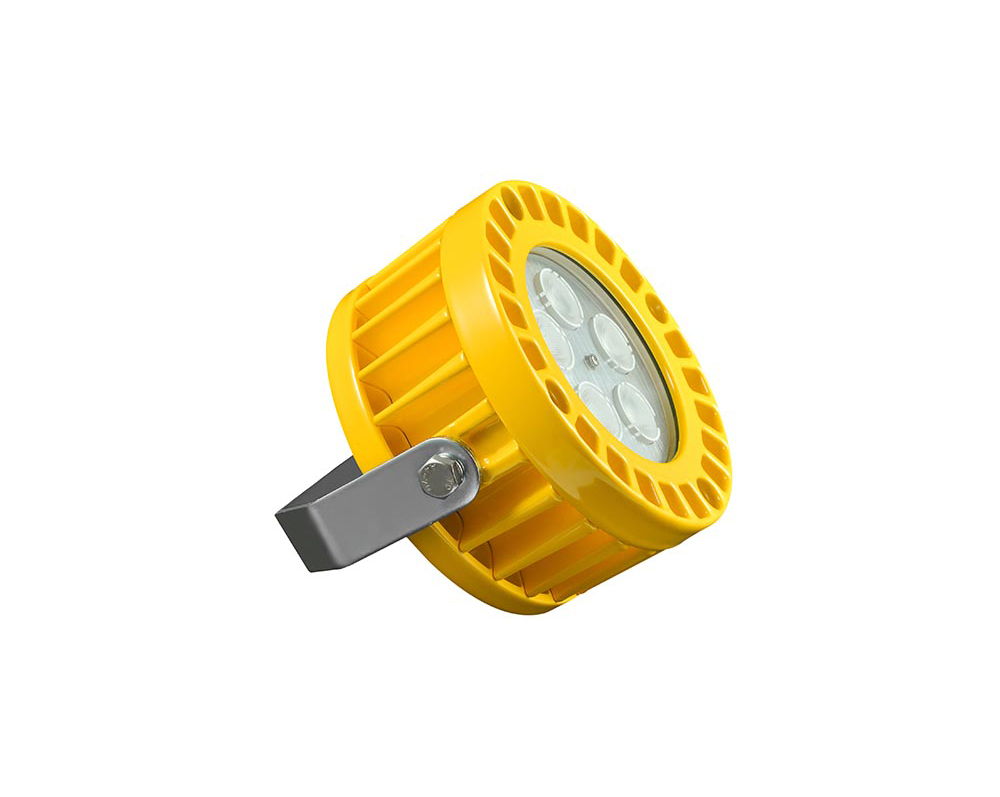

Product show:





Parameters

ParametersUnitvalue
Power supplyRated voltageVAC 85-265V
Rated powerW30
LED-Luminous fluxLm3800
LED-Avg.lifespanh≥50000
Service cableLead-in cablemmφ6—φ8
DimensionLight headmmΦ142*167*71
WeightLight headg1750
Corrosion proofWF2
Insulation grade
IP gradeIP66

Application

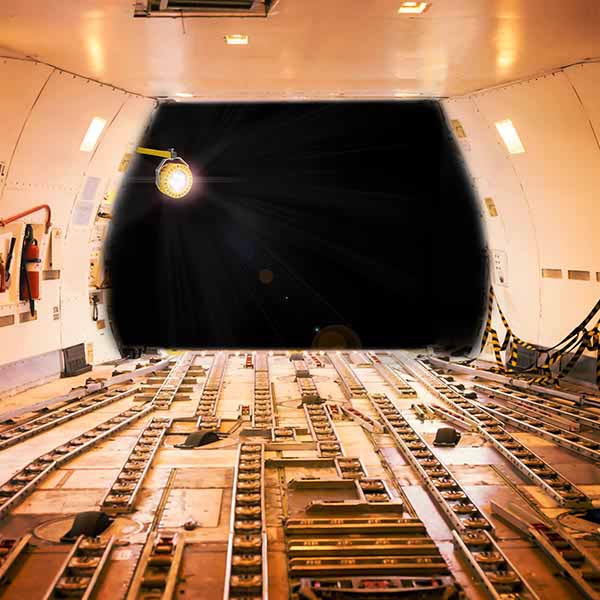

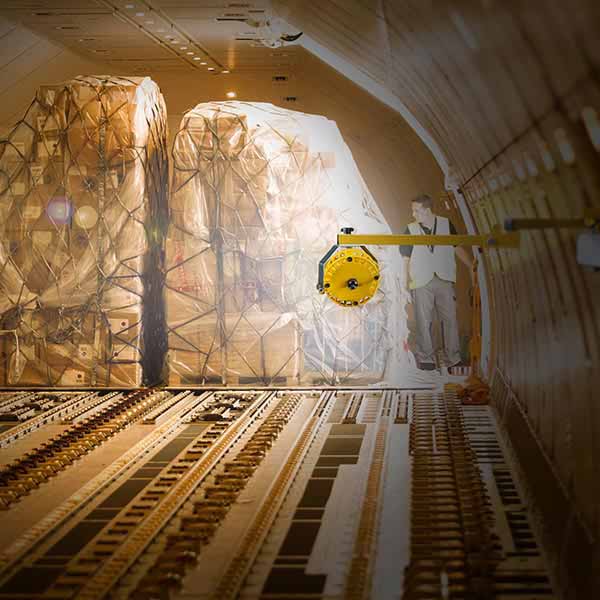

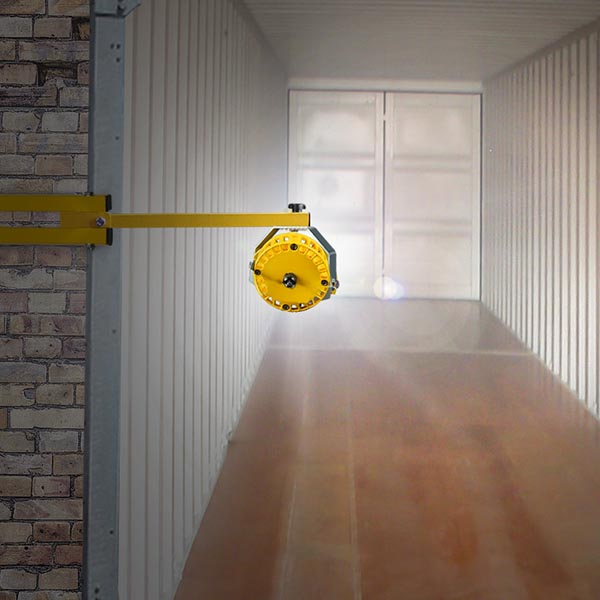

DL619 led loading dock light is aplicated in area illumination for plant, port, warehouse, goods shelf, container etc.
