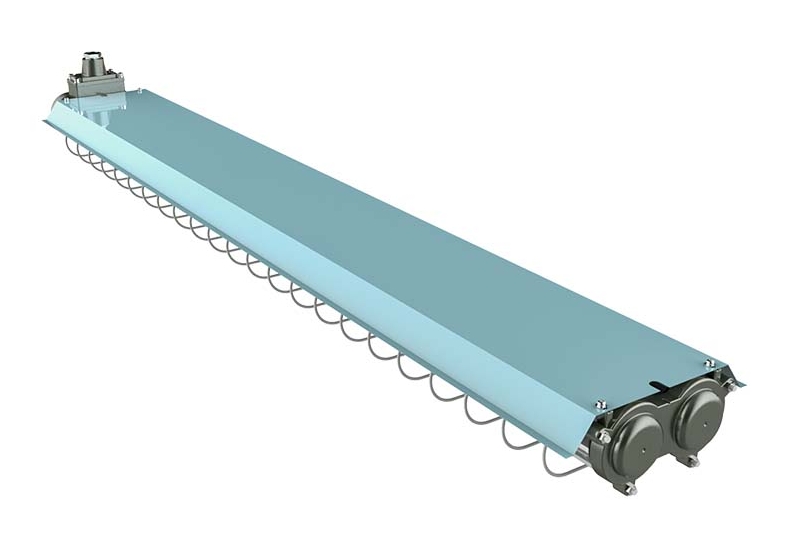

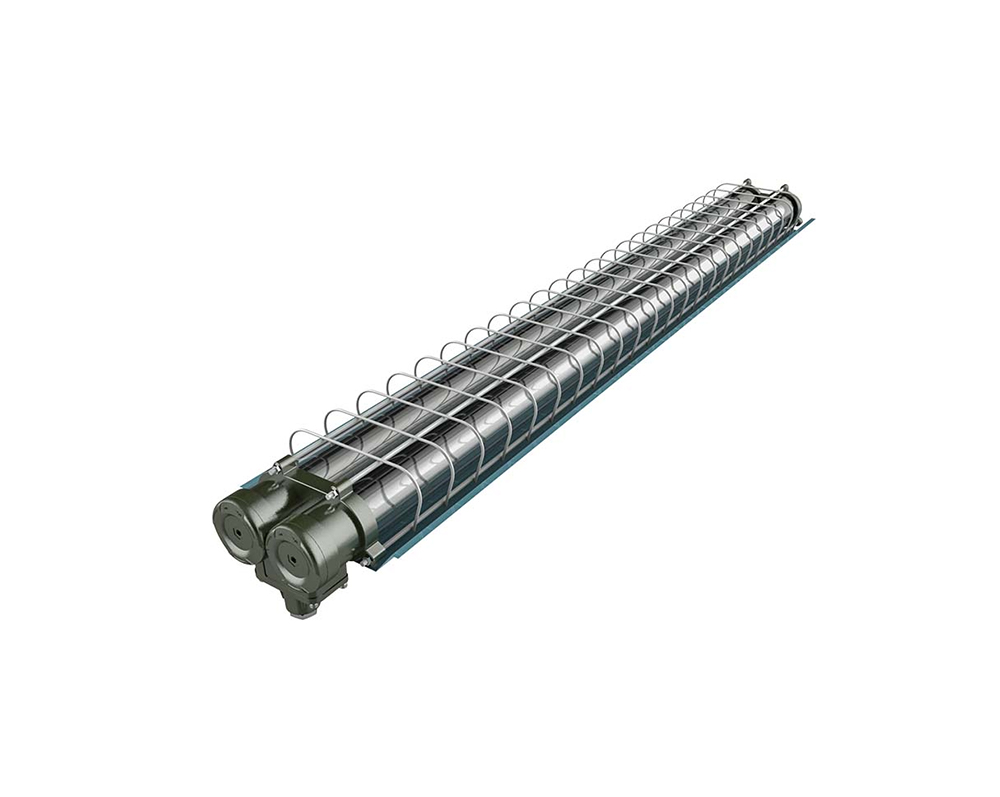

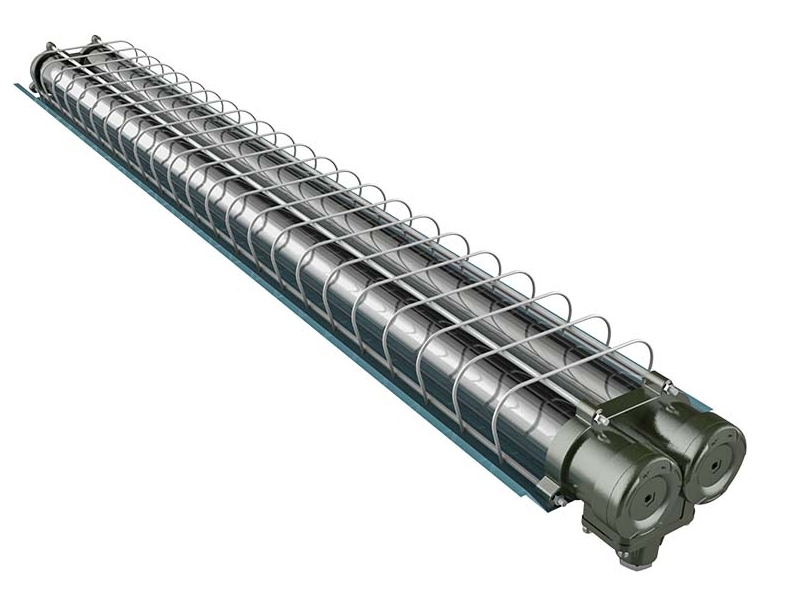

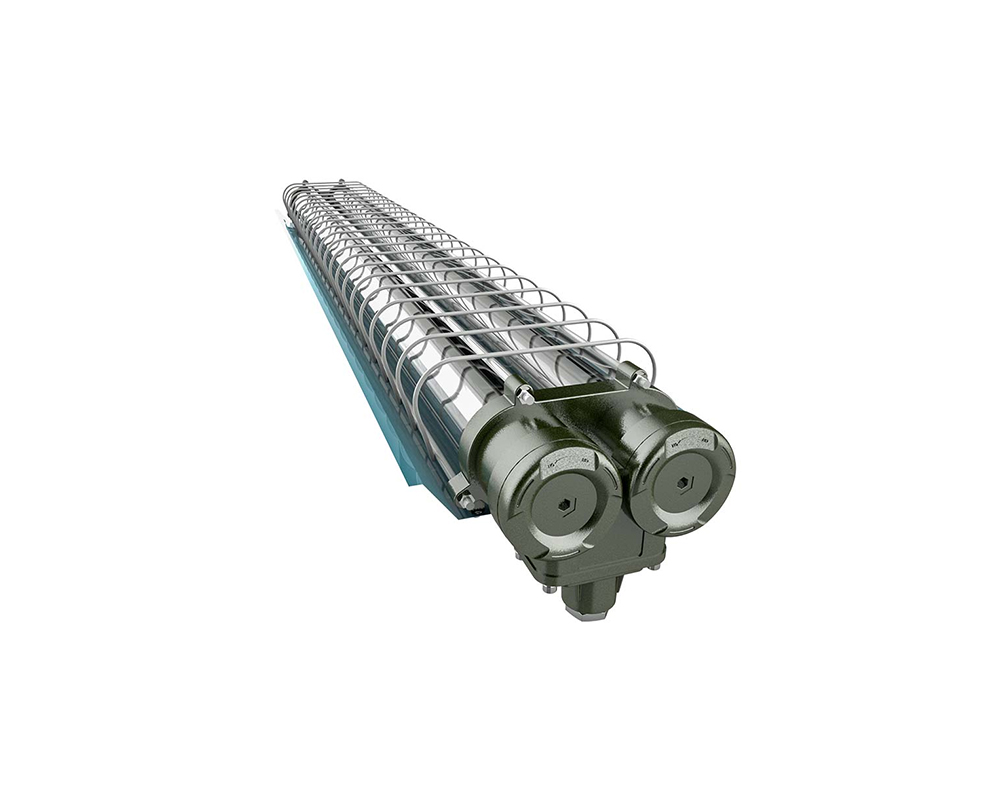

DL197  LED Fluorecent explosion proof light for hazardous area lighting

DL197 LED Fluorecent explosion proof light for hazardous area lighting

Model Number: DL197
LED Light Source: CREE
Rated Voltage(V): AC220V
Lamp Power(W): 2*18w/ 2*36w
CRI (Ra>): 70
Working Temperature(℃):-30°C ~ +50°C
Working Lifetime(Hour): 50000
IP Rating: IP65
Ex mark:Ex d IIC T6
light source: Cree led
beam angle: 360

DL197 led fluorecent explosion proof light for hazardous area

This product is suitable for dangerous places in zones 1 and 2, explosive gas environments of Class II A, II B and II C, mixing temperature of explosive gases: T1~T5, widely used in dangerous environments such as petroleum, chemical industry, military industry, medicine, mine, working and scene lighting of dangerous places such as offshore oil platforms, oil tankers, etc.

Product Parameters

ITEM

Description

UNIT

Rated Voltage

AC220

V

Power

2*18/2*36

W

Protection Level

IP65



Lighting Angle

360

°

Anti-corrosion grade

WF2



Explosion proof grade

Ex d IIC T6



Light efficiency

120

Lm/W

Frequency

50/60

Hz

Power Factor

>0.95

PF

Operating Temperature

-30~50

Correlate Color Temperature

3000-6500

K

Color Rendering Index

≥70

RA

LED'S Operating Life

50000

Hours

Start-up time

≤0.2

S

Executive standard

GB3836.1 GB3836.2



Size

128*20.2*14.6

cm

Weight

5.4

kg



Product Features:


1、Products can work safely in various flammable and explosive places.
2、Cast aluminium alloy shell, surface spraying anti-static, corrosion-resistant, waterproof, dust-proof, can be used in high temperature, humidity and various corrosive harsh environments for a long time;
3、Transparent toughened glass protective cover, good light transmittance, impact resistance, high light flux, energy saving, environmental protection and other advantages.
4、Beautiful appearance, simple and reliable structure, easy installation; structural steel pipe or cable wiring can be;

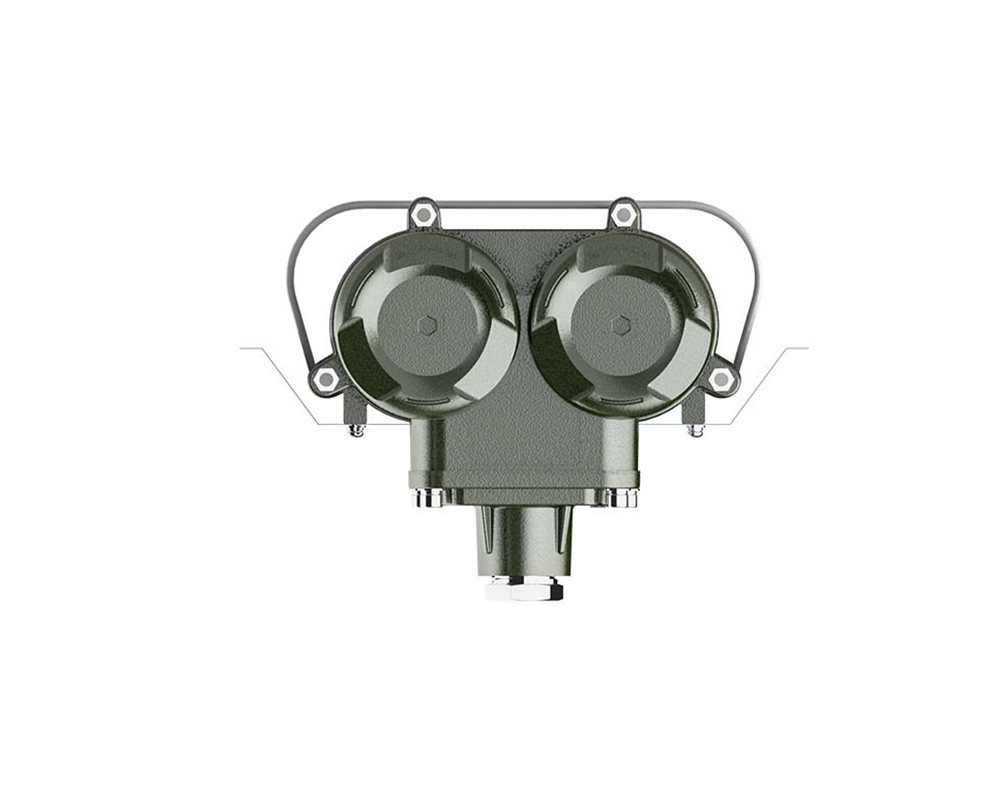

5、Independent wiring cavity design makes wiring more convenient and fast.

Caution


1、Schematic diagram
(1) When installing and maintaining lamps and lanterns, the power supply must be disconnected first.
(2) Non-professionals are not allowed to disassemble lamps and lanterns atwill.
(3) When used, there is a certain temperature rise on the surface of lamps and lanterns, which is a normal phenomenon; the central temperature of transparent parts is higher, so it is not
allowed to touch directly with hands.
2、Warning:
(1).Do not install directly on combustibles.
(2).Replace any cracked protective screen.
(3).Lamps must be grounded reliably.
3、Using The Matters Needing Attention
(1)This product is explosion-proof and can be used in various flammable and explosive places.
(2)Transport lights should be installed in the cartons equipped with foam shock absorption.
(3)The power supply voltage can work normally within the prescribed range, too high the power supply voltage will damage the lamps; too low the voltage will cause the lamps can not start normally
