DL266 High Power LED explosion proof flood light for hazardous area lighting

DL266 High Power LED explosion proof flood light for hazardous area lighting

Model Number: DL266
Light Source: led
Rated Voltage(V): AC220V
Lamp Power(W): 350-600w
CRI (Ra>): 70
Working Temperature(℃):-30°C ~ +50°C
Working Lifetime(Hour): 100000
IP Rating: IP66
Ex mark:Ex d IIC T6
beam angle: 90

DL266 High Power LED explosion proof flood light for hazardous area lighting

This product has good explosion-proof function, suitable for IIA, IIB, IIC explosive gas environment and various inflammable and explosive places, mainly used in railway, electric power, metallurgy, petroleum, petrochemical, chemical, steel, aviation, ship and
each Efficient lighting in factories, stations, large facilities, venues and other places.

Product Parameters

ITEM

Description

UNIT

Rated Voltage

AC220

V

Power

350-600

W

Protection Level

IP66



Lighting Angle

90

°

LED Qty

500

        pcs

Explosion proof grade

Ex d IIC T6



Light efficiency

120

Lm/W

Frequency

50/60

Hz

Power Factor

>0.95

PF

Operating Temperature

-30~50

  Storage Temperature

                      -30~50         ℃

Correlate Color Temperature

3000-6500

K

Color Rendering Index

≥70

RA

LED'S Operating Life

100000

Hours

Start-up time

≤0.2

S

Executive standard

GB3836.1 GB3836.2



Size

630*425*195

mm

Weight

28

kg







Product Features:

1 Configuration: It adopts imported LED light source, with an average service life of up to 100,000 hours. The power supply adopts wide voltage processing, which can realize constant current output, and has short-circuit and over-voltage protection functions, which greatly prolongs the service life of the lamps.

2. Heat dissipation: Explosion-proof electrical box and lamp holder double cavity design, large space size to ensure the assembly of various large-scale electrical appliances. Excellent heat dissipation performance, so that the LED chip and power supply temperature rise is reasonably controlled within a reasonable range, greatly ensuring the service life of the lamp .

3. Light distribution: Light projection is even and soft, especially suitable for all kinds of need to cast light, floodlights as a fixed lighting.

4 Protection: The protection level of the lamp body is IP66, and the anti-corrosion level can reach WF2. The surface of the lamp body will never corrode and never rust.

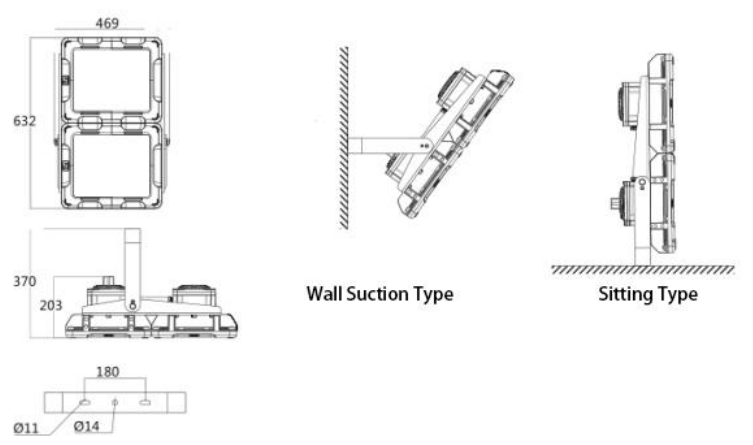

5 Installation method: Various installation methods such as ceiling, suction wall and U-shaped anti-vibration bracket (angle adjustable) can be used as needed.

Install

1 Before installation, it is necessary to check whether the actual operating conditions are in conformity with the parameters listed on the lamp nameplate.

2 Before installation, please test the lighting according to the parameters of the lamp nameplate to ensure that there is no quality problem before installation.

3 Before installation, it is necessary to determine the installation location and mode of the lamps according to the installation mode provided by the product, in combination with the on-site use environment and lighting requirements, so as to ensure that the installation is firm and reliable

4 Connect the prepared cables with the input cables of lamps and lanterns according to the corresponding fire (brown), zero (blue) and ground (yellow-green) wires, so as to ensure that the connection is firm, and make good insulation and waterproof measures at the connection. 5 The input end of the cable can be connected to the power supply of the corresponding voltage to illuminate.

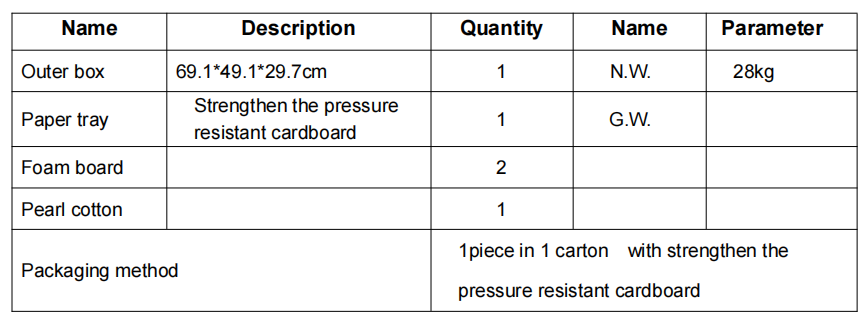

Packing
