DL618(160W) led explosion proof lights kit/explosion proof lamp/flame proof lamp

Model Number: DL618(2*80W)

LED Light Source: CREE

Input Voltage(V): AC110-240V

Lamp Power(W): 80

Lamp Luminous Flux(lm): 18200

CRI (Ra>): 80

Working Temperature(℃):-20°C ~+ 50°C

Working Lifetime(Hour): 50000

IP Rating: IP66

Ex mark: Exd II 2G Ex db IIB + H2 T5 Gb / II 2D Ex tb IIIC T100°C Db

light source: Cree xm-L led

beam angle: 160

Housing: aluminium alloy

Product Details

DL618(160W) led explosion proof lights kit/explosion proof lamp/flame proof lamp with emergency function


Product Description

Specification of led explosion proof lights:

1. Housing Construction

Die cast aluminum housing

Bracket: 316 stainless steel

Surface treatment: corrosion proof powder coated

2. Light Source

Cree XML LED

50,000 hours average rated life

160° beam angle

3. Lens

Heat-treated glass (GL)

Impact-resistant diffuse polycarbonate (OP)

4. Compliances

Watt: 160W

IP class: IP66

Ex-mark: Ex d II 2G Ex db IIB + H2 T5 Gb / II 2D Ex tb IIIC T100°C Db


Packaging & Shipping

one pieces in one carton, unit weight: 14kg


Product Show

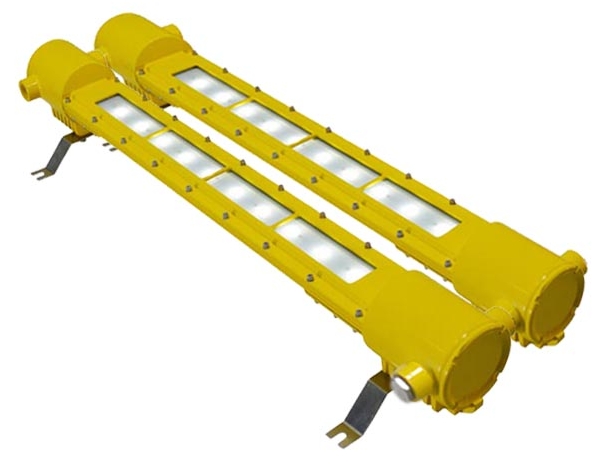

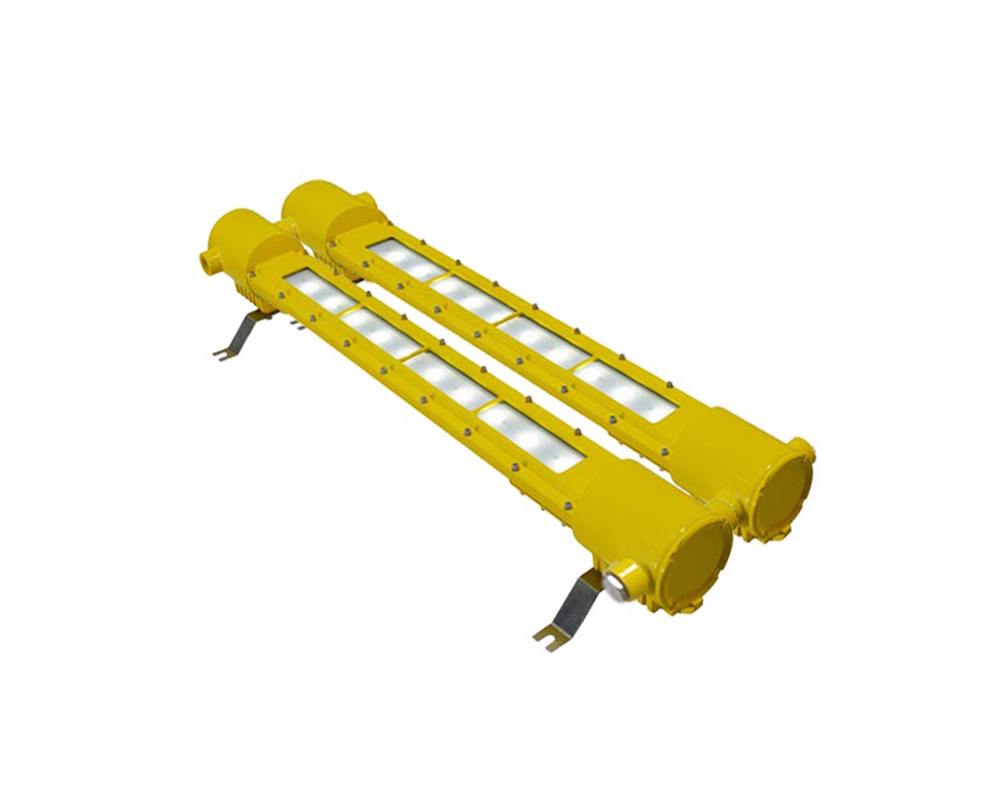

DL618 2*80W

4

DL618 3*80W

4


Parameters

ModelDL618(2*80w)
ConstructionDie cast aluminum housing
MountingCeiling, Hook
Hardware316 stainless steel
Light source

Cree XM-L Light emitting diodes(LED)

Up to 9100 Lumens (fixture)

Initial Luminous Flux 18200 lumens

CRI > 80

5000-7000K

50000 hours rated life

Electrical

Input power :160 W

Input Voltage: AC110-240 V ,50Hz

Reflector160 degree
LensClear Heat Treated Glass
FinishTextured polyester powder coat
Ambient operating Temperature-20°C ~+ 50°C
IP ratedIP66
Unit Weight8Kg
Size117*151*910mm
CertificationEx d II 2G Ex db IIB + H2 T5 Gb / II 2D Ex tb IIIC T100°C Db
Warranty1 Years

Application

Application of led explosion proof light

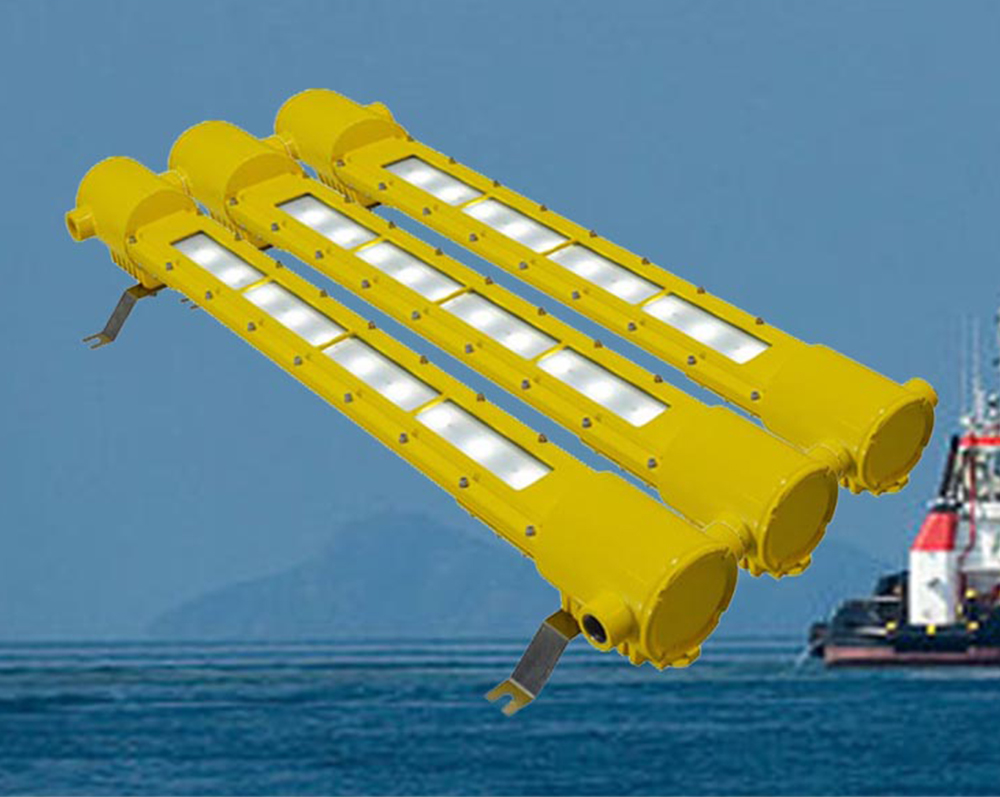

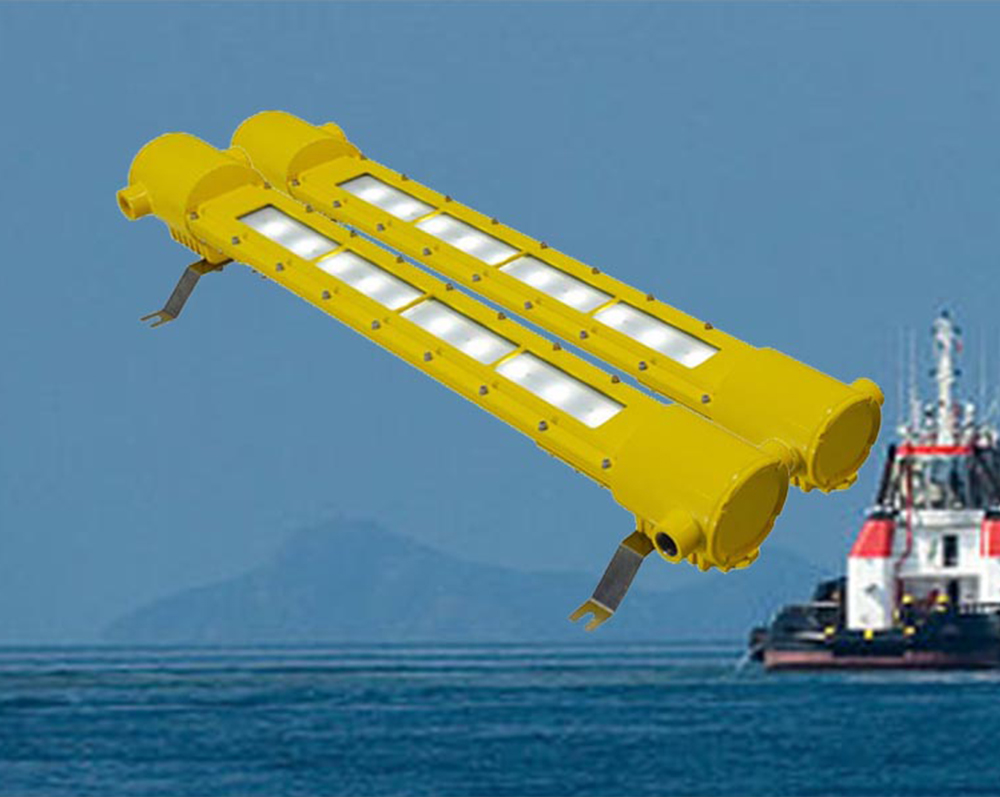

DL618(160w) explosion proof lamp the fixture can be used to explosion proof area,ship,drilling platform,petrochemical plantetc.by different options.
