DL602-12 ATEX approved Gas station 60w canopy light

DL602-12 ATEX approved Gas station 60w canopy light

Model Number: DL602-12
LED Light Source: CREE
Input Voltage(V): AC85-265V
Lamp Power(W): 60
Lamp Luminous Flux(lm): 7200
CRI (Ra>): 75
Working Lifetime(Hour): 50000
IP Rating: IP65
Ex mark: ExnA II T3
Housing: aluminium alloy
Certificatiion: CE,ROHS

ATEX approved Gas station 60w IP65 waterproof led canopy light


Product Description


1.Product details:

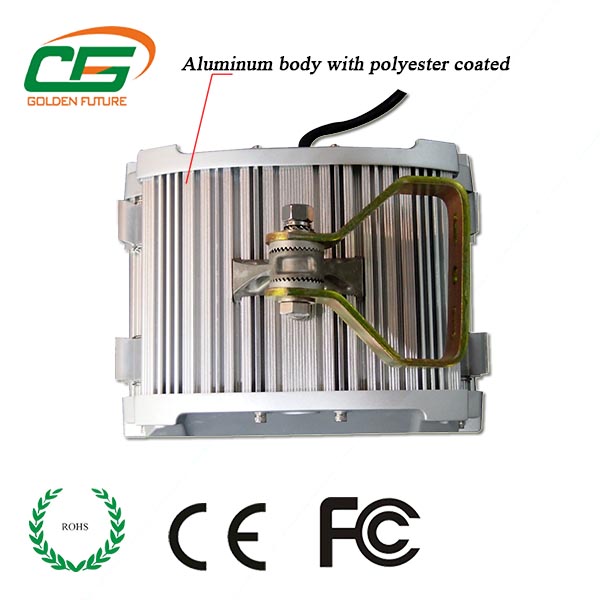

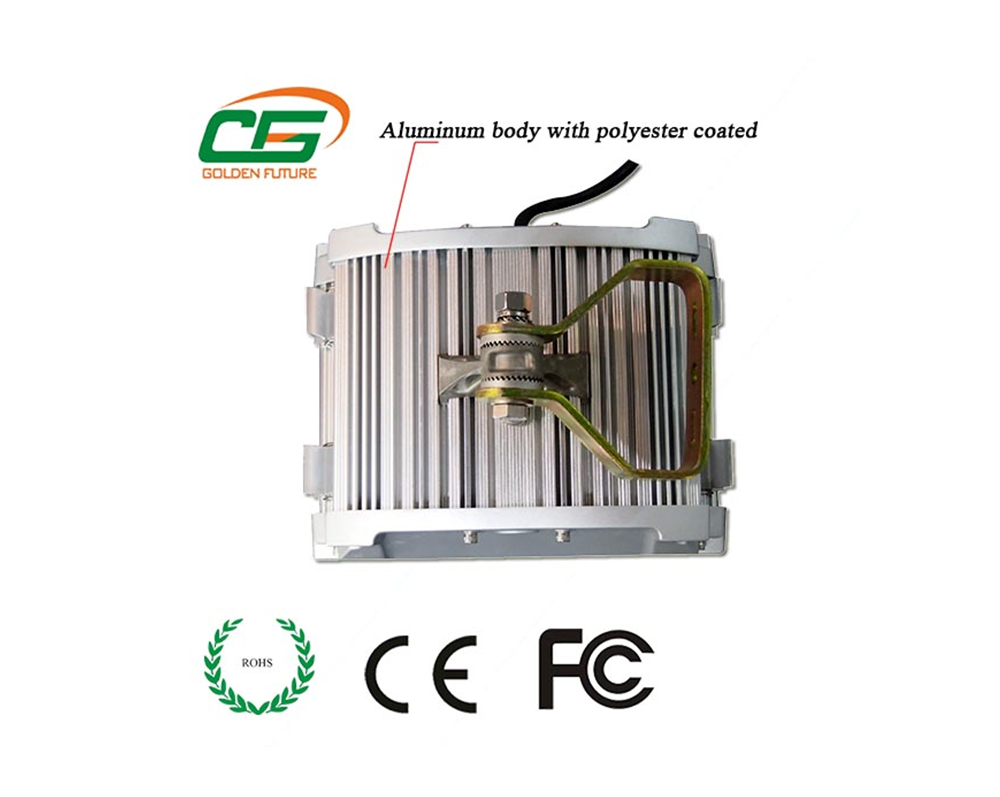

1) Material:Aluminum body with polyester coated, toughened-glass lens,

2) Initial output lumens: 7200 lumens, Input voltage: DC24V, DC36V, or AC110V-240V.

3) Dimension:284*278*115mm, Unit weight: 6400g, Inlet thread: G3/4,

4) Feature:Heat-resistance, corrosion-resistance, explosion-proof, waterproof

5) Packing: 1pc/ctn, gross weight: 8kg,ctn size: 38*34*22cm

6) warranty:1year


2. Applications of 60w IP65 waterproof led canopy light:


1)Flammable and explosive Zone II and gas district.
2)Restrict district and heavy industry machining equipment district.
3)Drilling rig area and other atrocious seacoast and offing area.
4)Refinery, chemical plant, pharmacy plant, oil store and gas factory.


3. Specifications :


Product name


Power (W) & lumens

60W & 7200lumens

Frequency (V)


Operating Voltage(V)

AC85-265, DC24V/36V

LED Lighting Efficiency(Lm/W):


Power Supply Efficiency (%)


Power Factor


Color Rendering Index(Ra):


Color Temperature(K)

Warm White: 2300-3300K,

Cool White:45, 00-5, 500K,

Pure White:6, 000-7, 000K

Light Body & Lampshade Material

Aluminum House & toughened glass

Life Span(hrs)


IP Rating(IP):


Weight (Kg)




4. Competitive Advantage of ATEX approved waterproof led canopy light:


1. DL602-12 is mercury-free, lead-free and energy efficient illuminant , environmentally friendly lamp

2. Heat-resistance, corrosion-resistance, explosion-proof, waterproof.

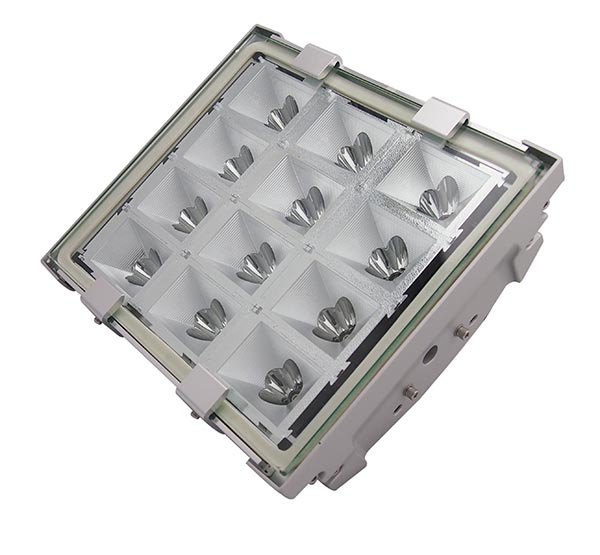

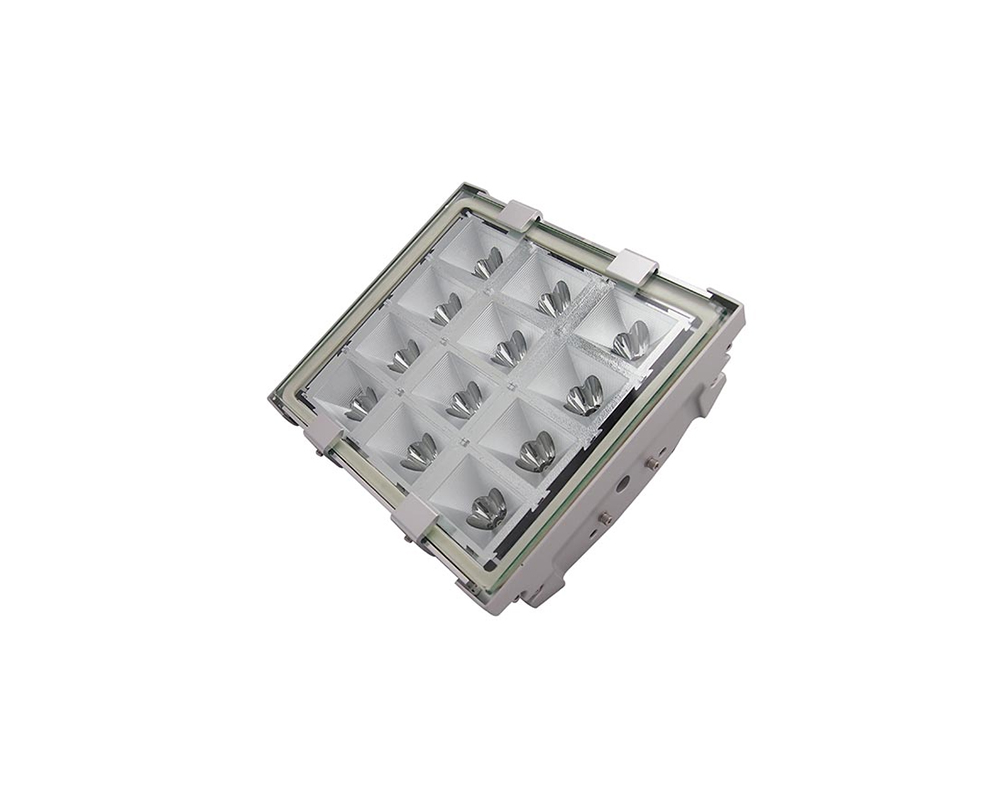

5. Product show:

led canopy light/gas station light/canopy lightgas station led canopy light/explosion proof light

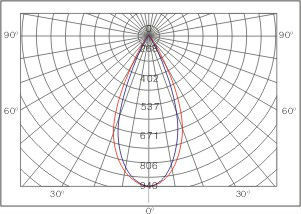

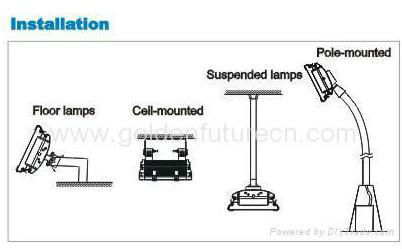

Beam angle and installation method:

led canopy lightInstallation of led canopy light/gas station light/explosion proof light

Packaging & Shipping


DL602-12 led canopy light is 1 piece in one carton, gross weight: 8.7kg, ctn size: 38*34*22cm
